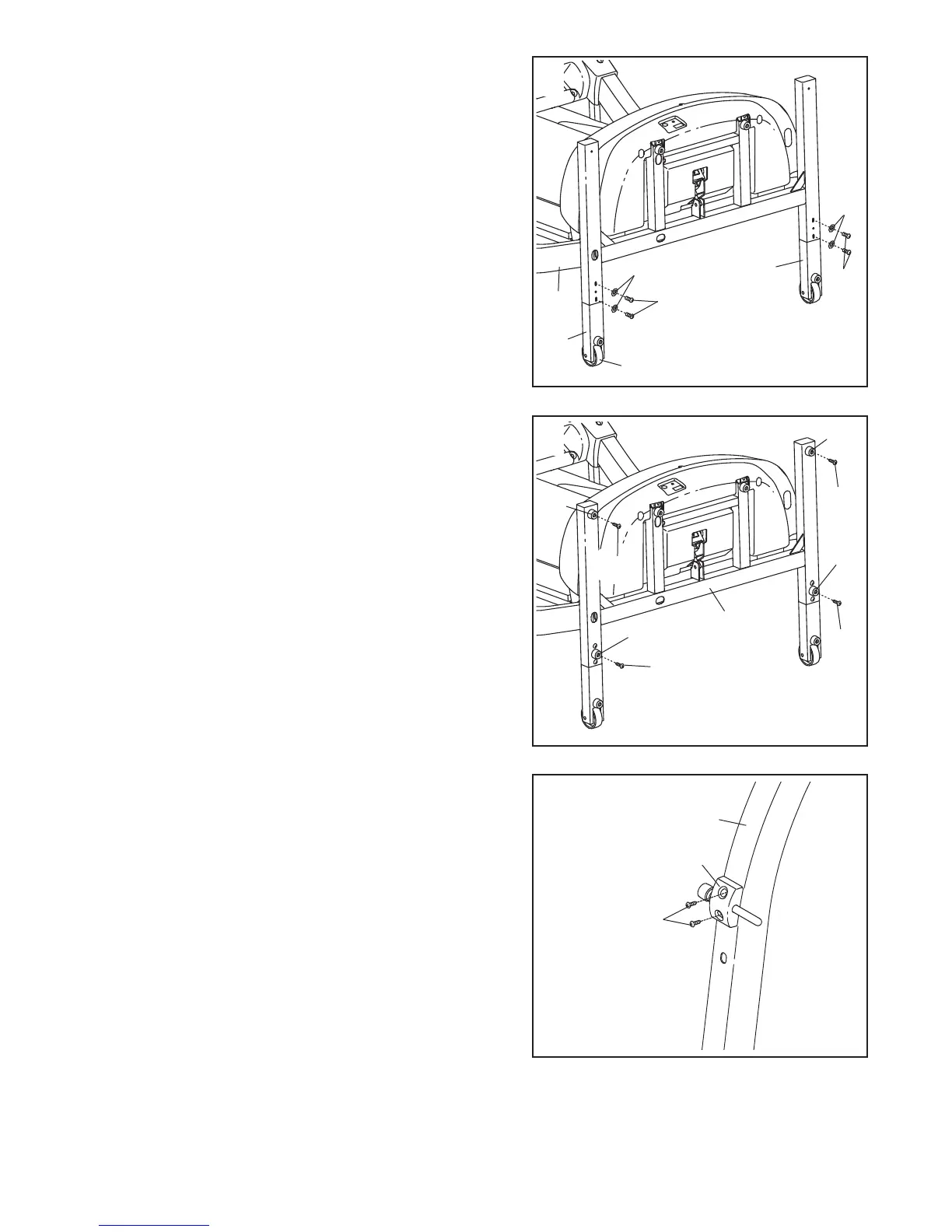

4. With the help of a second person, carefully raise the
Uprights (96) to the vertical position.
Remove the two Latch Screws (109) from the left Upright
(96). Attach the Latch Assembly (110) to the left Upright
with the two Latch Screws. Be careful not to over
-
tighten the Latch Screws.
110
96
109
4
3. Attach the four Base Pads (125) to the base of the
Uprights (96) with the four 1” Tek Screws (123) as
shown. Note: One replacement Base Pad may be in-
cluded. If a Base Pad becomes worn and needs to be re-
placed, use the replacement Base Pad.
125
125
125
125
123
123
123
96
3
2. With the help of a second person, carefully lower the
Uprights (96) as shown. Note: It may be helpful to place
your foot on one of the Wheels (94) as you tip the
U
prights.
M
ake sure that the Extension Legs (86) re-
main in the Uprights.
Attach each Extension Leg (86) with two 1/4” x 1” Bolts
(88) and two 1/4” Star Washers (87) as shown.
88
87
87
86
88
86
96
94
2
