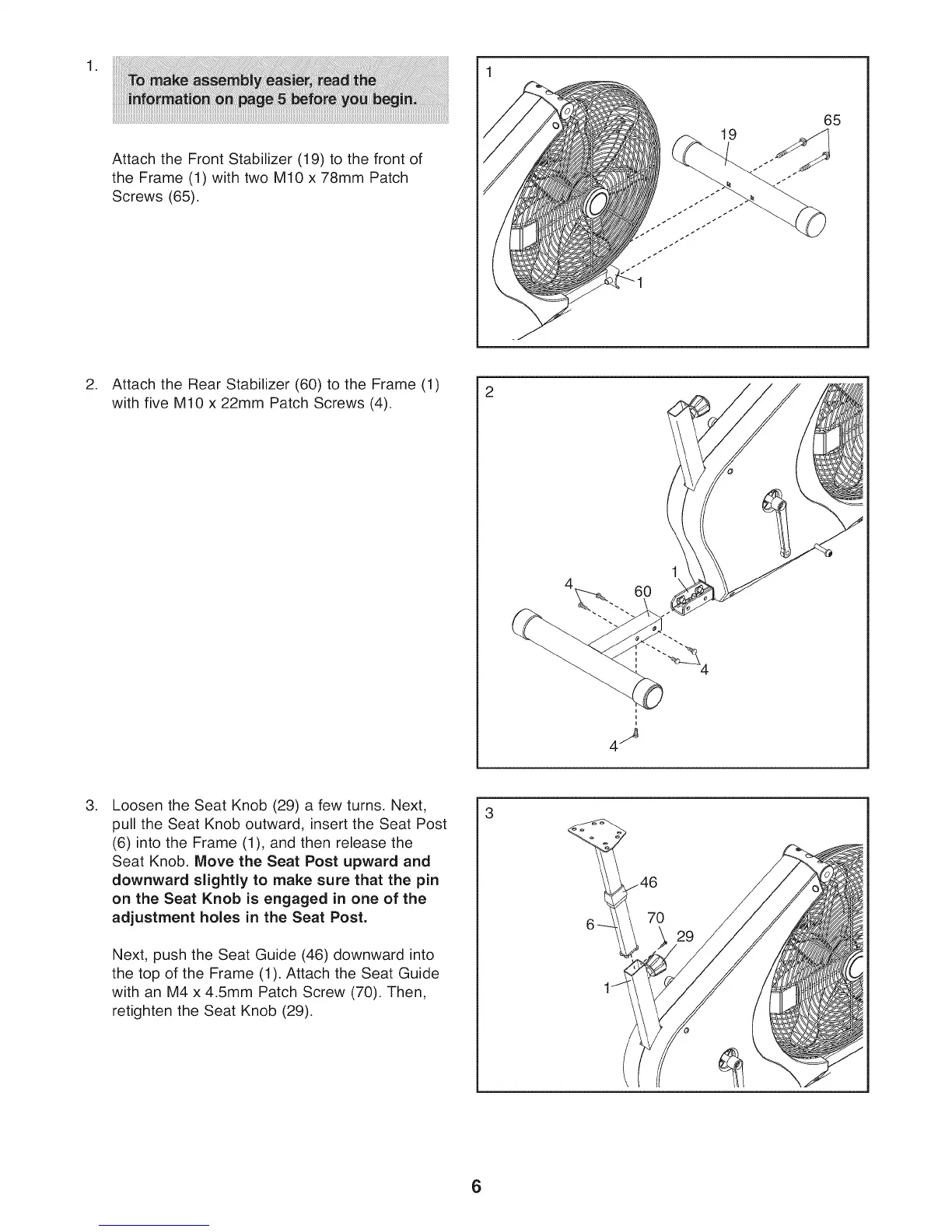

Attach the Front Stabilizer (19) to the front of
the Frame (1) with two M10 x 78mm Patch
Screws (65).
19
65
,
Attach the Rear Stabilizer (60) to the Frame (1)
with five M10 x 22mm Patch Screws (4).
4"
,
Loosen the Seat Knob (29) a few turns. Next,
pull the Seat Knob outward, insert the Seat Post
(6) into the Frame (1), and then release the
Seat Knob. Move the Seat Post upward and
downward slightly to make sure that the pin
on the Seat Knob is engaged in one of the
adjustment holes in the Seat Post.
Next, push the Seat Guide (46) downward into
the top of the Frame (1). Attach the Seat Guide
with an M4 x 4.5mm Patch Screw (70). Then,
retighten the Seat Knob (29).
.46
70
6
