ProMinent Aegis-II User Manual

Mounting and Installation
Page 37 of 102
Table 5 Dual Serial Sensor Connections

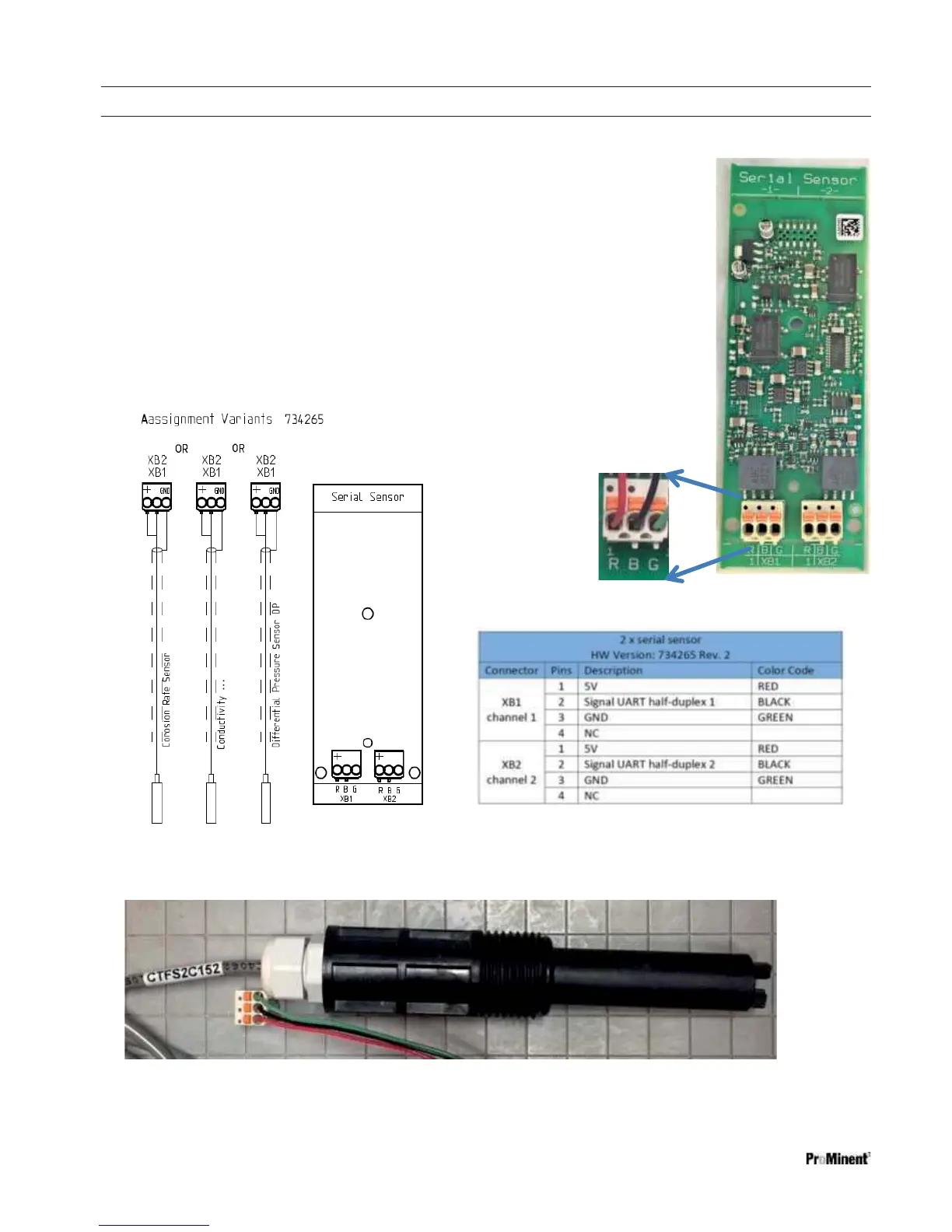

6.3.10 Dual Serial Input card (CTFs-LPR-DP)
Only certified Prominent serial sensors; CTFS (Conductivity Temperature Flowswitch Serial),
Log R corrosion rate sensors and differential pressure sensors may be used with these inputs.
Sensor reports analog value in a serial signal.
Maximum distance from sensor to driver card is 30 meters.
Terminals are color coded for ease of connection; R  red, B  black and G  green.
Figure 36 Dual Serial
Driver
Figure 38 CTFS sensor (Conductivity/Temperature/Flowswitch/Serial)
Figure 37 Dual Serial Input Driver
connections
