The communication indication panel is located at the bottom center of the controller face.
A green light indicates the function is available. If the port is in use, the green light blinks.
(Bluetooth and Fieldbus are not currently available. Jan 2017)
1.2 Functions of the keys

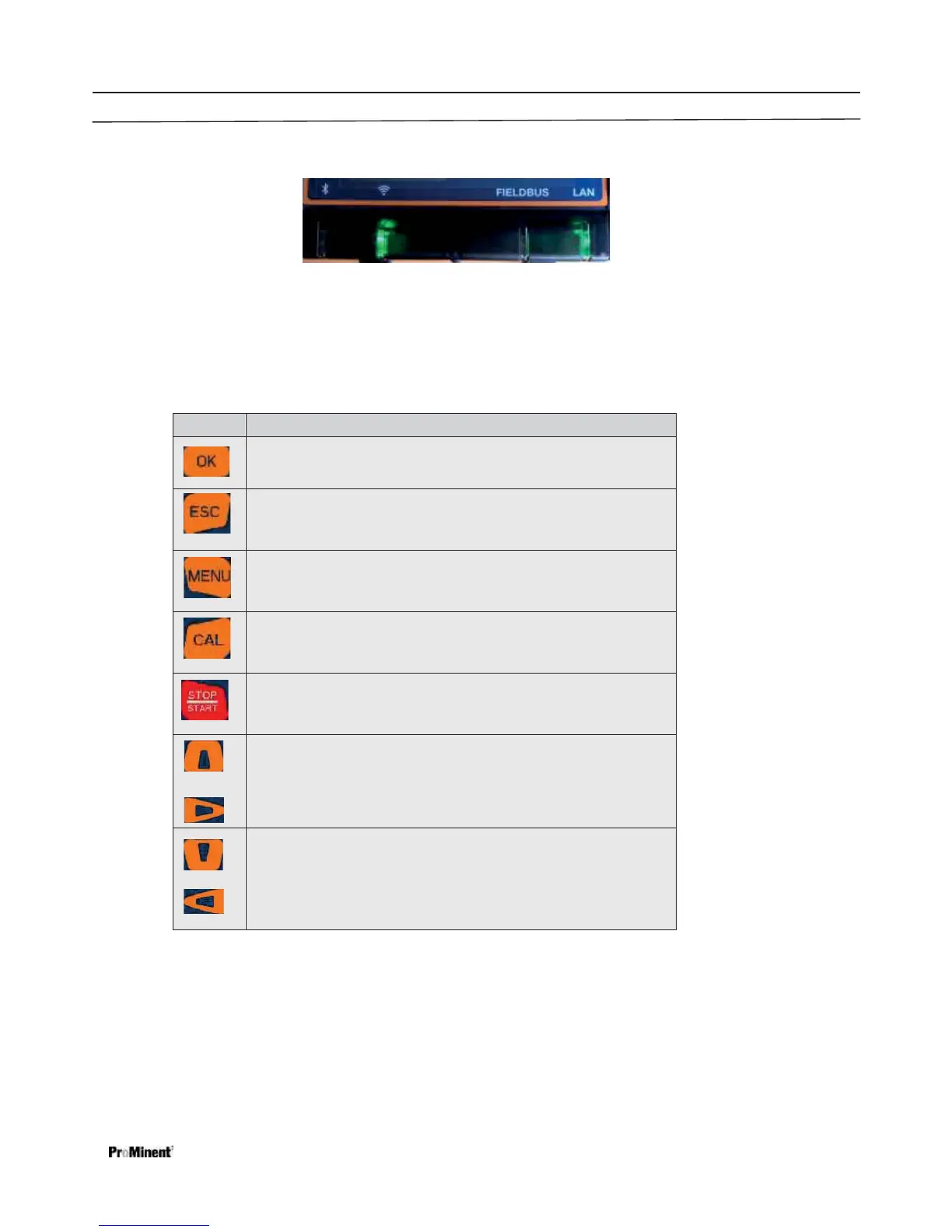

Table 1 Function of the keys
1.3 Changing the Operating Language
The operating language is currently offered in English only.
1.4 Keypad Lock
The controller has an available keypad lock. If the keypad lock is enabled, access requires a passcode. The
keypad password is the same as the password used in the Ethernet or Wi-Fi browser connection.
See 11.2.2 Keypad Passwords
Confirmation in the menus: Confirms and saves any changes.
Back to the HOME display or to the previous menu.
Enables direct access to all of the controller's setting menus.
Enables direct access to the controller's calibration menu from the
HOME
Start/Stop all control outputs from any display. (4-20mA = 4mA).
Front panel LED is solid red.
(Up Arrow) Increases a displayed number value or moves upwards
in the menus.
(Right Arrow) Moves the cursor to the right.
(Down Arrow) Decreases a displayed number value or step down in
the menus.
(Left Arrow) Moves the cursor to the left.
Figure 3 Communication Status LEDs
Bluetooth Wi-Fi Fieldbus Ethernet
(WLAN) (LAN) (LAN)
