ProMinent Aegis-II User Manual

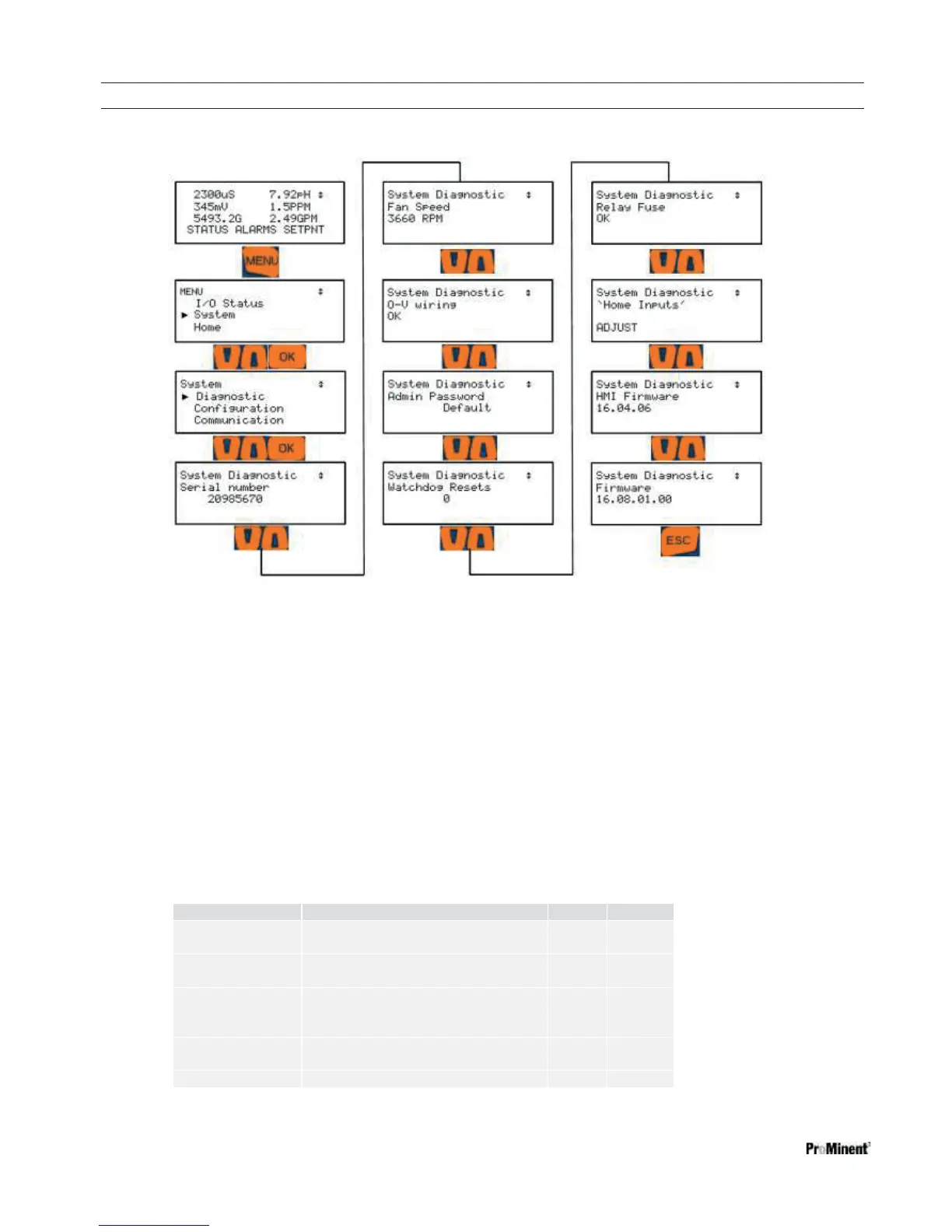

System Menu
Page 93 of 102
11.8 Configurations
See section 13.2.1 USB – Save or Load the
Program
12 Controller Technical Data:
12.1 Fuse Specification
The power relay fuse is 6.3 amps at 250 volts AC. This fuse is similar to the relay fuse used on the MultiFLEX and
Aegis, except this is a slow blow fuse. Do not use this fuse in those controllers.
However, you can use the fast blow fuses provided with those controllers in the Aegis II. A fast blow fuse will not
harm the device.
Table 17 Fuse Specifications
Component
Rating/type
vendor
Part#
Controller,
Complete
100-230VAC, 50/60 Hz, 0.5-0.26A -
No External Load
PFC
AGIb
Controller,
Complete
100-230VAC, 50/60 Hz, 7.8A - with
External Load
PFC
AGIb
Power relay
R1,R2 and Power
Out terminals
6.3 AT @250VAC 5x20mm, Slow-
Blow, Glass Fuse
PFC
732379
Main Power Fuse
1.6AT 250VAC 5x20, 1.5 kA at 250
VAC ,Ceramic Fuse
PFC
732411
Enclosure
Rated for IP65
PFC
N/A
