Programming the Outputs
Page 66 of 102
This menu shows the default type of output as
-
ON/OFF is the only choice for the first 5 relays.
Relays 6 9 can be either ON/OFF or frequency
type.
Step 6 is divided into two methods; the first for relays
1 5 and the second for pulse relays 6 9.
6a- For AC-Powered Relays 1 – 5 programming:
Choose which type of relay program you wish to
use, F1 for Feed pump, F2 for a Blowdown relay or
press OK to keep the Event-Other choice. Follow F1
or F2 with an OK to select the control.
6b-For DC (Pulse) Relay programming:
If you desire an ON/OFF output, press OK to choose
the Event-Other menu type or F1 for Feed type.
Press OK to save the change.
At this time, we recommend naming the relay to
avoid confusion during programming. Once named,
we will set up the remaining relay attributes.
10.4 Naming the Output
In section 10.3, we showed how to enable a
relay. Regardless of the type of relay you
choose, the next step is to name it.
Pick a name that identifies the relay for you
or your customer; Blowdown, Acid, LJ25X,
Amine, etc.

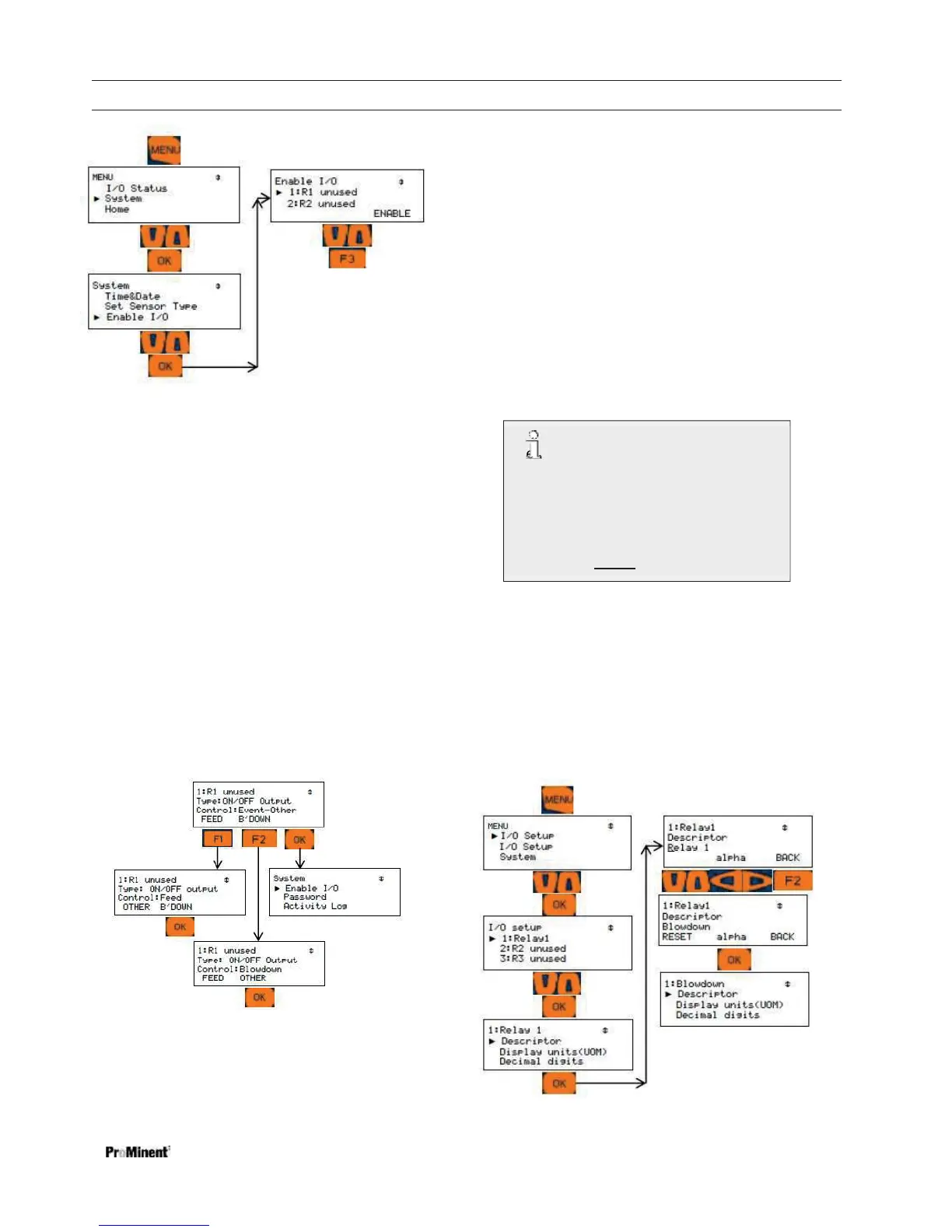

1- Press MENU.
2- Scroll down to I/O Setup. Press OK.
3- Scroll down to the relay you chose to name
and press OK. If your relay is not listed, it is
not enabled.
4- See 10.2, Determine if a Relay is Enabled.
5- Press OK to edit the description of the relay.
6- Use the right arrow to move to the second
position. Press the F2 key to choose alpha,
lower case letters. Notice that the F2 choice
now shows NUMBERS. That would be the
next choice.
7- Use the arrows to change the next
letter/space and continue until your word is
spelled.
8- When finished, press OK to save.
