P_SI_0155_SW

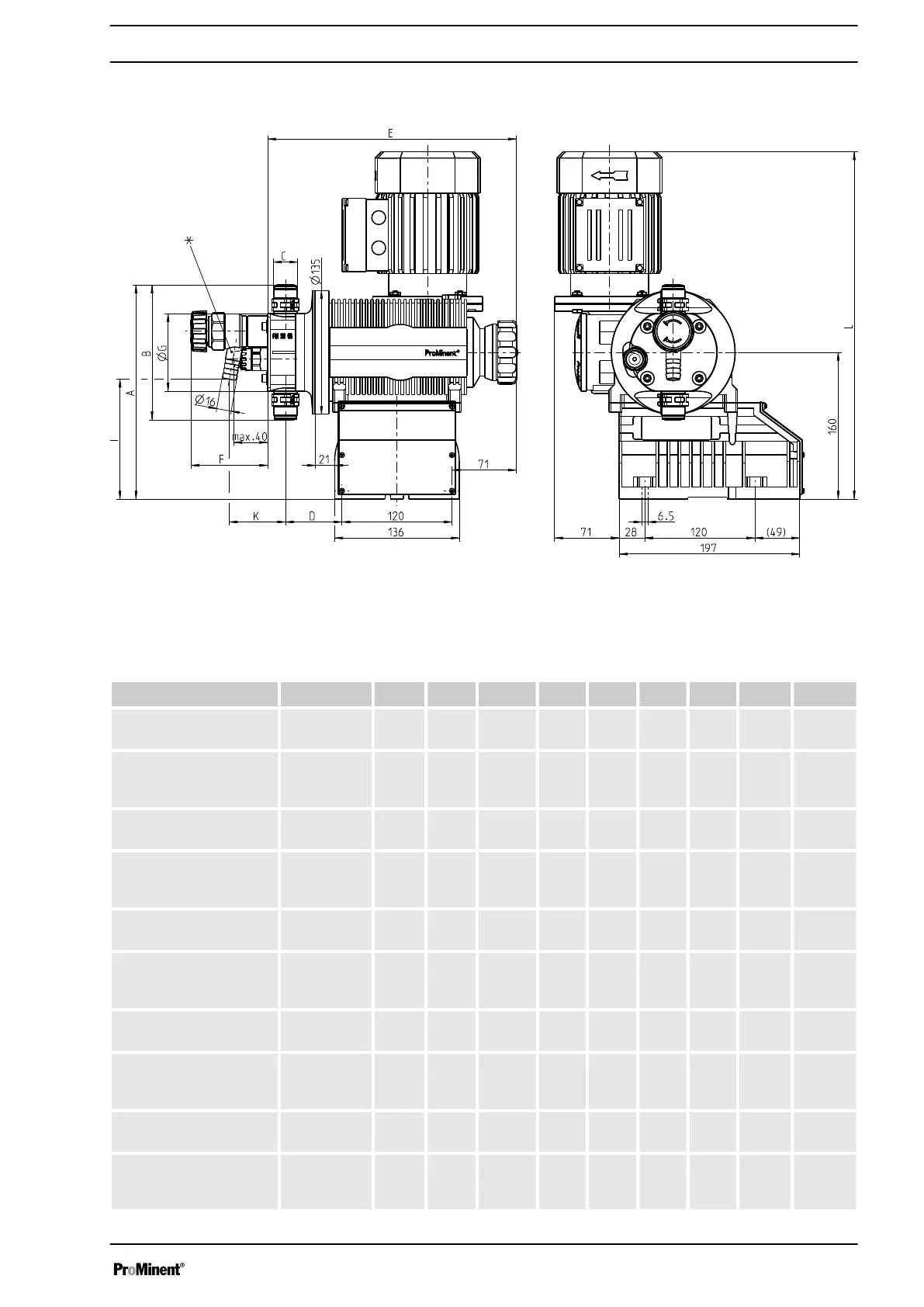

Fig. 28: Dimensional drawing of Sigma/ 1, S1Ba, rotated - Drawing is not strictly binding.
* Hose nozzle relief valve d16 S with thread DIN ISO
228-G3/4 A
Tab. 6: Dimensions in mm
Type Connector A B C D E F G I K
Sigma 12017,12035,
10050 PVT
DN10 233 147 G 3/4 A 62 269 - 96 - -
Sigma 12017,12035,
10050 PVT-relief valve-
A/sv-a
DN10 233 147 G 3/4 A 62 272 84 96 131 61
Sigma 12017,12035,
10050 SST
DN10 231 142 G 3/4 A 61 267 - 105 - -
Sigma 12017,12035,
10050 SST-relief valve-
A/sv-a
DN10 231 142 G 3/4 A 61 267 88 105 100 45
Sigma 10022, 10044,
07065 PVT
DN10 233 147 G 3/4 A 62 269 - 96 - -
Sigma 10022, 10044,
07065 PVT-relief valve-
A/sv-a
DN10 233 147 G 3/4 A 62 272 84 96 131 61
Sigma 10022, 10044,
07065 SST
DN10 231 142 G 3/4 A 61 267 - 105 - -
Sigma 10022, 10044,
07065 SST-relief valve-
A/sv-a
DN10 231 142 G 3/4 A 61 267 88 105 100 45
Sigma 07042, 04085,
04120 PVT
DN15 242 165 G 1 A 67 278 - 122 - -
Sigma 07042, 04085,
04120 PVT-relief valve-
A/sv-a
DN15 242 165 G 1 A 67 288 74 122 138 63
Dimensional drawing of Sigma/ 1, S1Ba,
rotated
Dimensional drawings
71
