Type Connector A B C D E F G I K
Sigma 07042, 04085,
04120 SST
DN15 242 165 G 1 A 66 277 - 122 - -
Sigma 07042, 04085,
04120 SST-relief valve-
A/sv-a
DN15 242 165 G 1 A 66 277 88 122 112 51
Tab. 7: Dimensions in mm
Standard motor Motor, controllable EExe motor Motor with fre‐
quency converter
1-phase motor
L 379 416 420 519 399
P_SI_0034_2
61_01-101_00_55-73

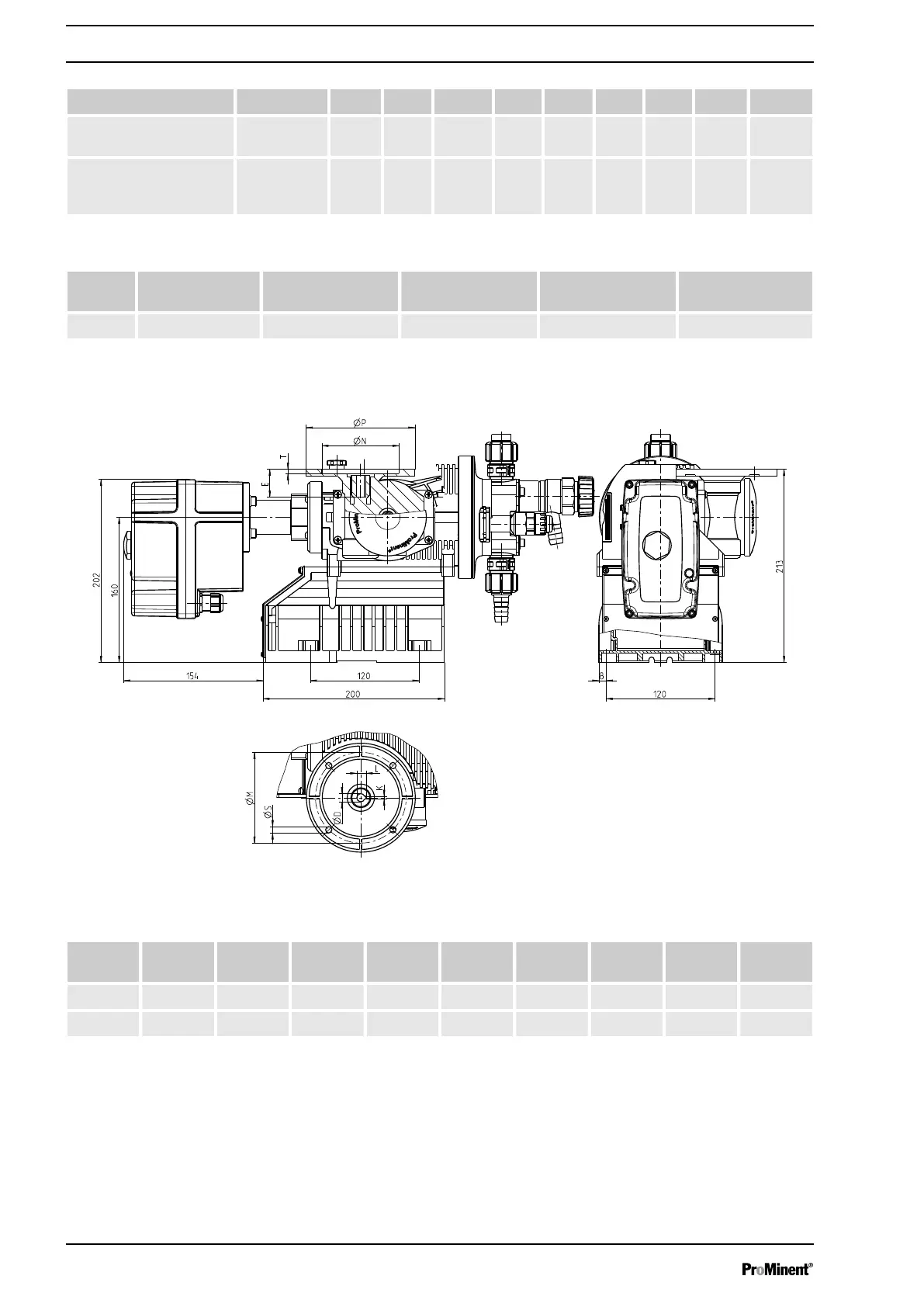

Fig. 29: Dimensional drawing of Sigma/ 1, S1Ba, motor flange, actuator - Drawing is not strictly binding.
Tab. 8: Dimensions in mm
Motor
flange
Ø P Ø M Ø N Ø S Ø D T E K L
C 42 4.725 " 3.75 " 3 " 0.276 " 0.5 " 0.157 " 1.287 " 0.125 " 0.56 "
B5, 120 120 mm 100 mm 80 mm 7 mm 9E7 5 mm 30 mm 3H9 10.4 mm
Dimensional drawing of Sigma/ 1, S1Ba,
motor flange, actuator
Dimensional drawings
72
