ProMinent Sigma/ 1 Basic S1Ba - Page 73

P_SI_0156_SW

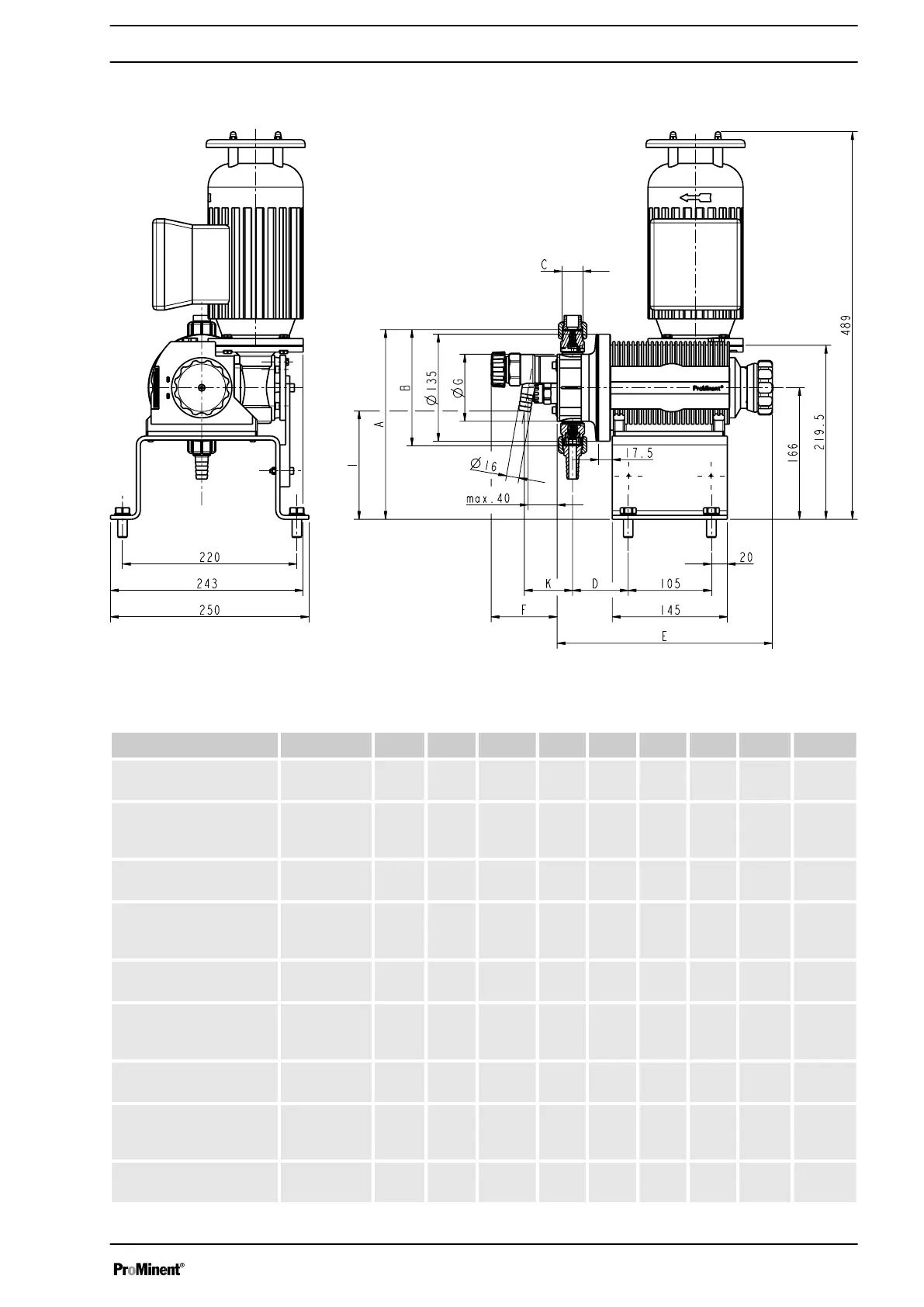

Fig. 30: Dimensional drawing of Sigma/ 1, S1Ba, with EExde motor - Drawing is not strictly binding.
Tab. 9: Dimensions in mm
Type Connector A B C D E F G I K
Sigma 12017,12035,
10050 PVT
DN10 239 147 G 3/4 A 70 269 - 96 - -
Sigma 12017,12035,
10050 PVT-relief valve-
A/sv-a
DN10 239 147 G 3/4 A 70 272 84 96 137 61
Sigma 12017,12035,
10050 SST
DN10 237 142 G 3/4 A 70 267 - 105 - -
Sigma 12017,12035,
10050 SST-relief valve-
A/sv-a
DN10 237 142 G 3/4 A 70 267 88 105 106 45
Sigma 10022, 10044,
07065 PVT
DN10 239 147 G 3/4 A 70 269 - 96 - -
Sigma 10022, 10044,
07065 PVT-relief valve-
A/sv-a
DN10 239 147 G 3/4 A 70 272 84 96 137 61
Sigma 10022, 10044,
07065 SST
DN10 237 142 G 3/4 A 70 267 - 105 - -
Sigma 10022, 10044,
07065 SST-relief valve-
A/sv-a
DN10 237 142 G 3/4 A 70 267 88 105 106 45
Sigma 07042, 04084,
04120 PVT
DN15 248 165 G 1 A 75 278 - 122 - -
Dimensional drawing of Sigma 1, S1Ba
with EExde motor
Dimensional drawings
73
