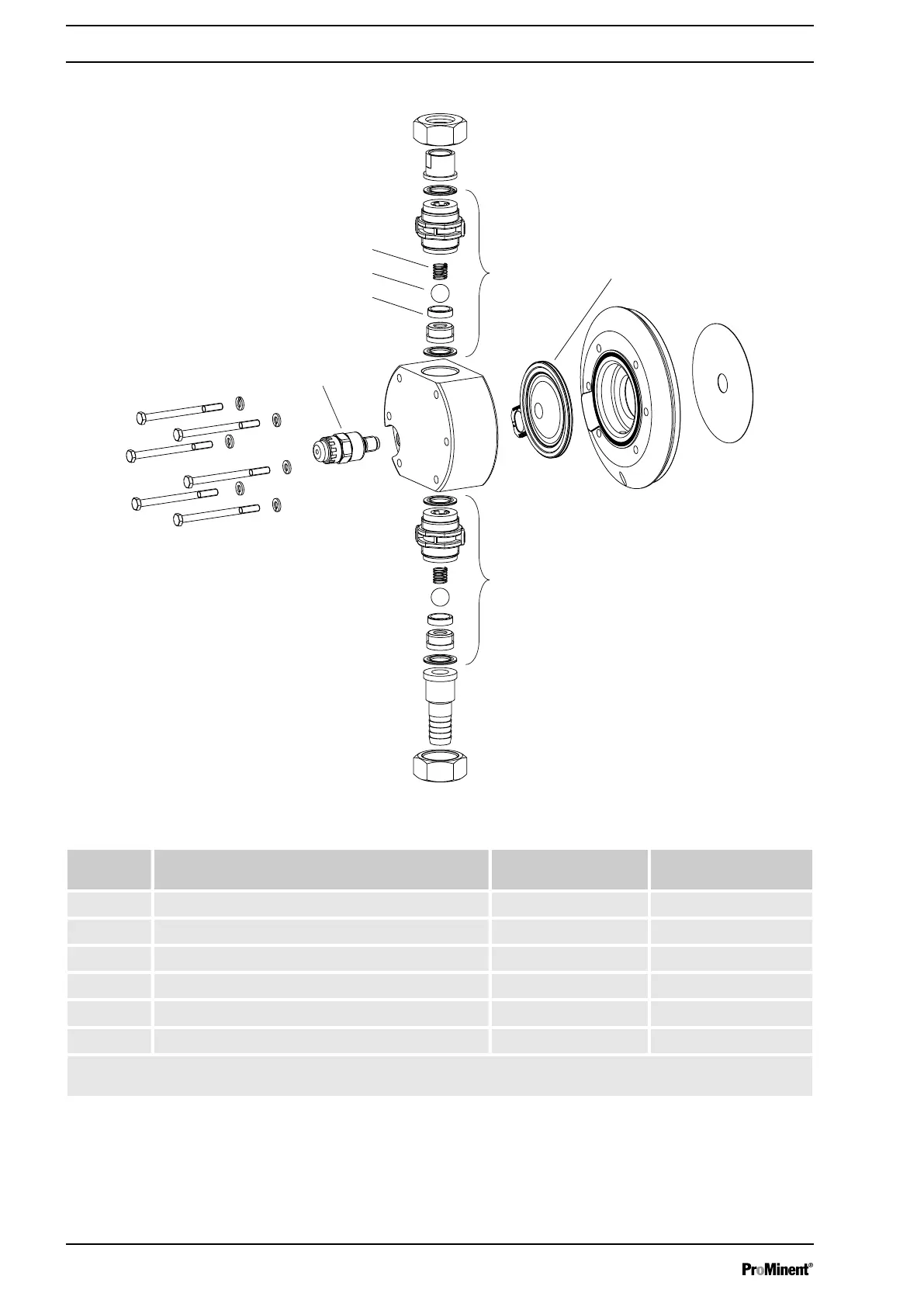

Fig. 35: Liquid end Sigma/ 1 050 and 065 SST
Pos. Description Type 12035, 12017,
10050
Type 07065, 10044,
10022
1 Spring ** **
2 Ball * *
3 Ball seat - -
4 Diaphragm rupture sensor, visual 1033323 1033323
5 Valve 809459 809459
6 Multi-layer diaphragm 1030114* 1030115*
* The items listed are included in the spare parts kit. ** Special accessories (not included in the spare parts kit). Tech‐
nical changes reserved.
Liquid end Sigma/ 1 050 and 065 SST
Exploded drawings Sigma/ 1
