3.8. Using oscillator (accessory)
3.8.1. Installing

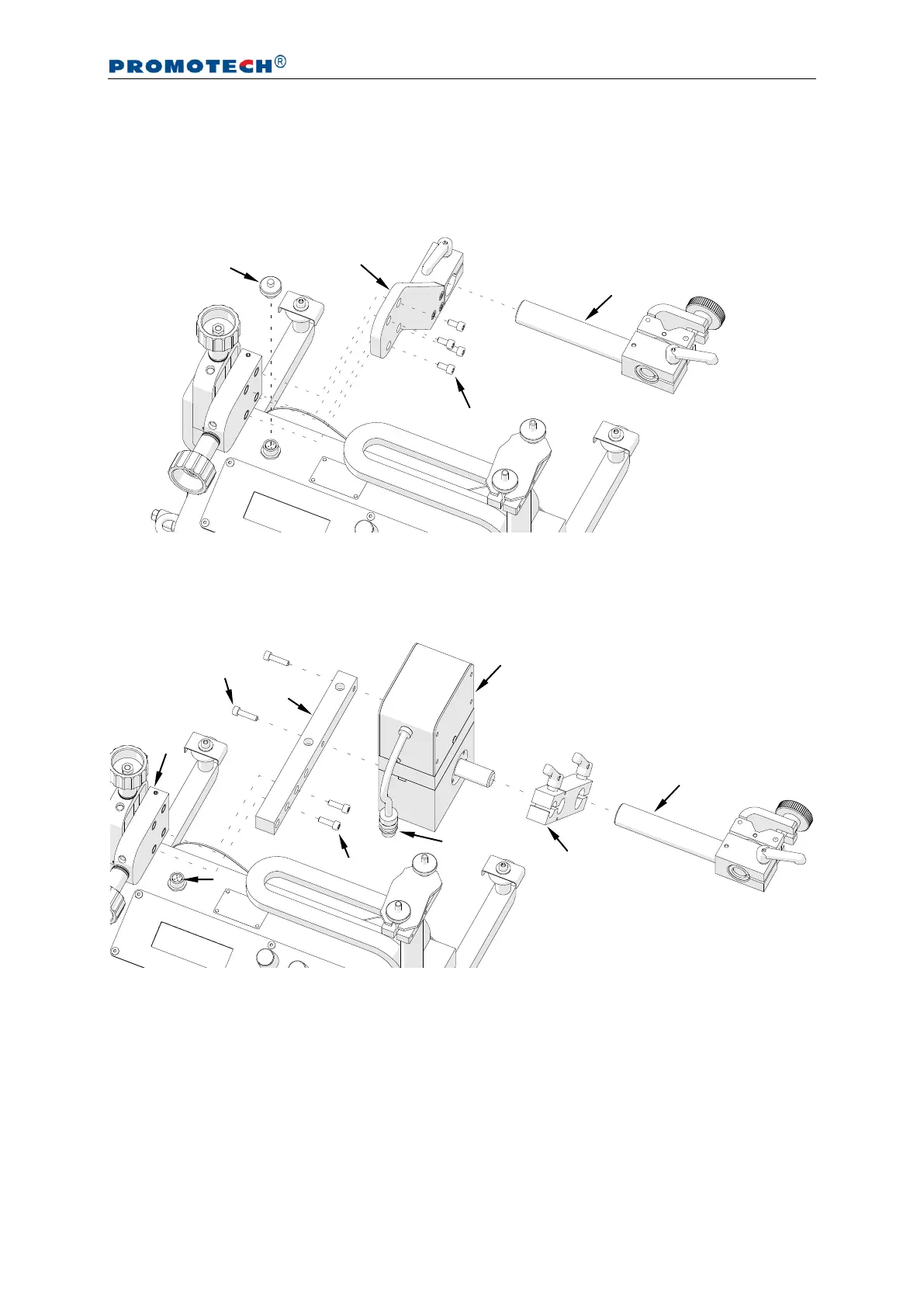

Install the oscillator according to the following instructions.
 Remove the torch holder 1.
 Remove the torch holder plate 2 by unscrewing screws 3 using 4 mm hex wrench.
 Unscrew the cap 4.
 Fix the arm 5 to the oscillator 6.
 Fix the oscillator 6 to the bracket 7 using two M5x20 screws 8.
 Fix the bracket 7 to the cross slide 10 using two M5x16 screws 9.
 Fix the oscillator plug 11 to the oscillation socket 12.
 Fix the low torch holder 13 to the oscillator arm 5.
