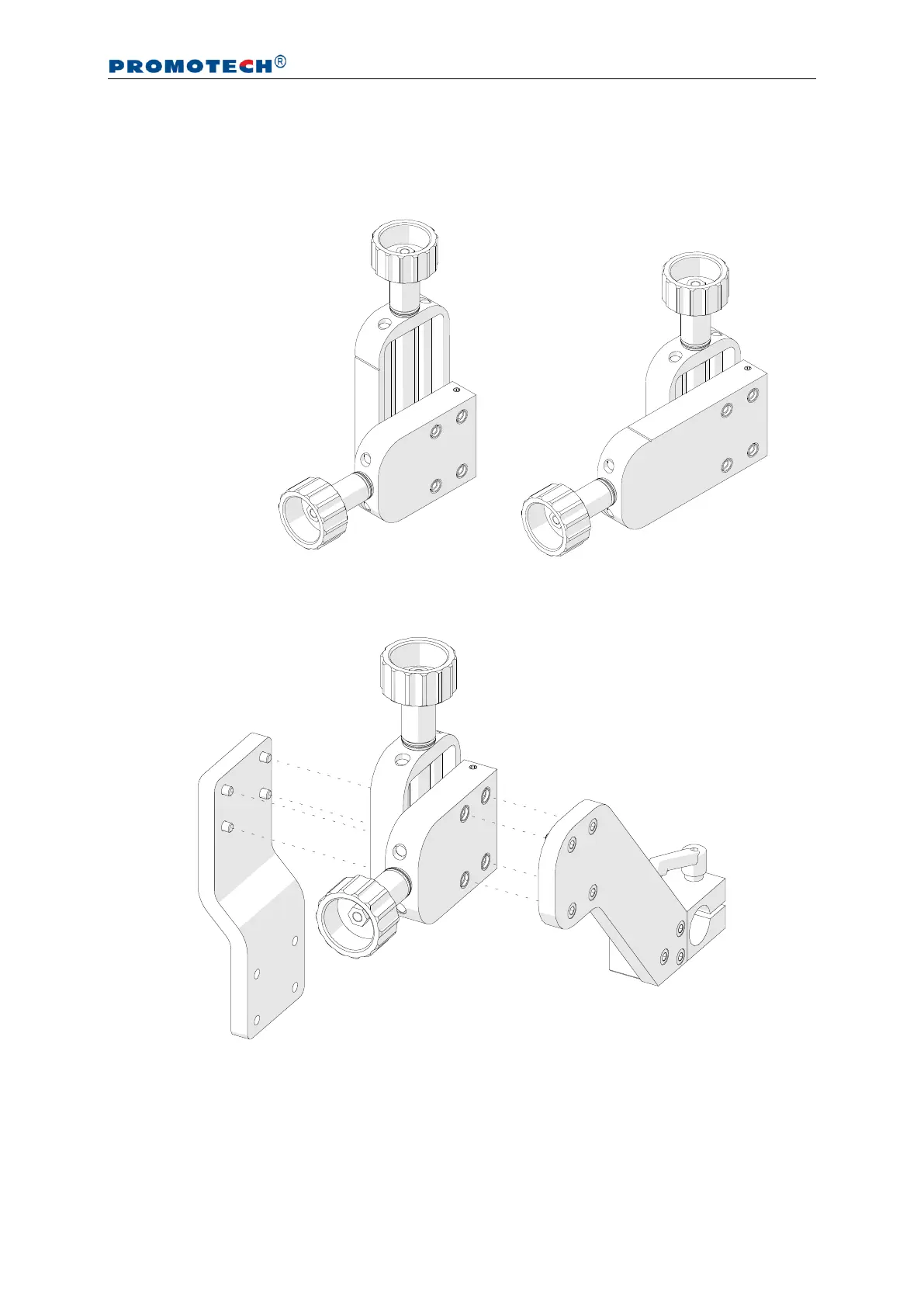

5.21. 76 mm cross slide

Extends either up-down or left-right adjustment range from 0–35 mm (0–1.38’’) to

0–76 mm (0–3’’).

Install in place of the standard cross slide after unscrewing eight screws using the

4 mm hex wrench.

Part number:

ZSP-0466-46-00-00-1
