5. ACCESSORIES
5.1. Oscillator
Allows welding with oscillation. Can be installed vertically or horizontally.
Oscillation type
pendulum (maximum 11°)
Oscillation amplitude at r=150 mm (5.9’’)
1–30 mm (1–100%)
Oscillation speed at oscillation amplitude of
10 mm (0.4’’) and zero delay on ends
7–164 cycles/min (1–100%)
Delay on ends
0–5 s
Maximum torque
5 Nm (3.7 lb·ft)
Power
12 W
Weight
2 kg (4 lbs)

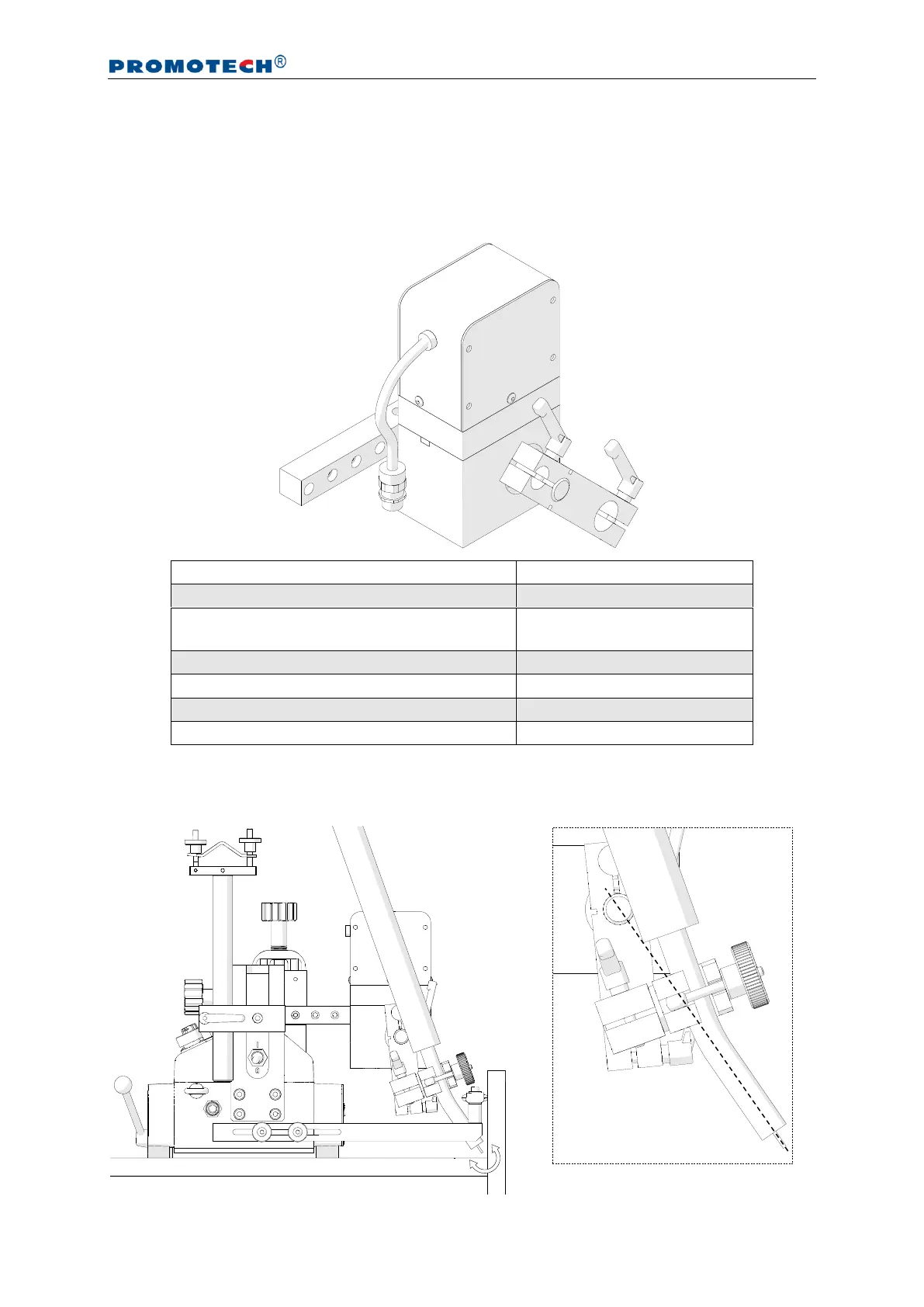

To obtain the proper shape of oscillation, the axis of the oscillator’s output shaft
must cross with the axis of the torch.
Part number:
ZSP-0477-10-00-00-0
