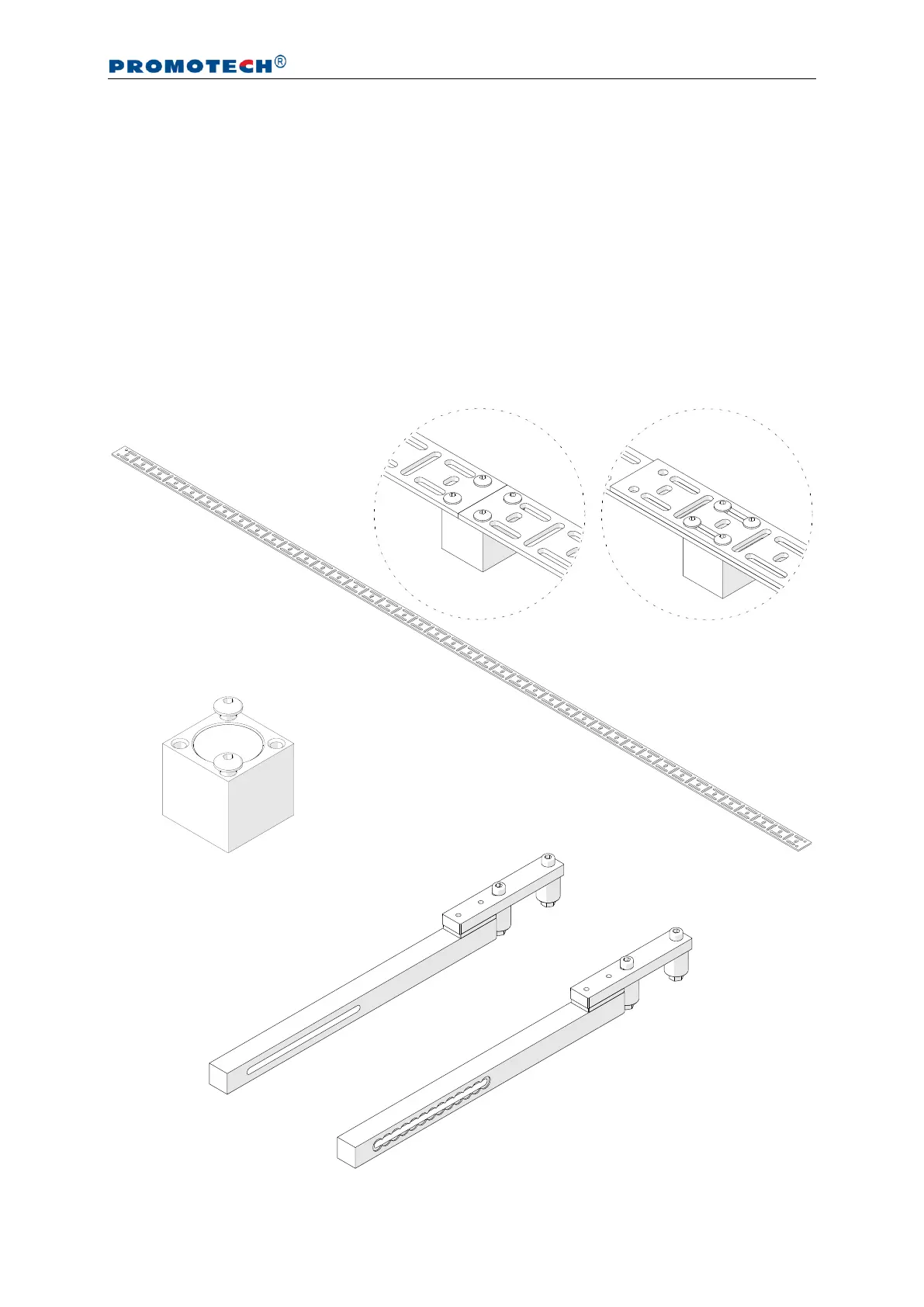

5.19. Guiding set
Allows guiding the carriage on planes along a straight line, and on pipes and tanks.
A single flexible rail is 1.85 m (6 ft) long. The holding force of a magnet block placed
on a 5 mm (0.2’’) thick ferromagnetic surface is 90 N up to a temperature of 100°C
(212°F). At 180°C (356°F) the force decreases to 54 N.
Connect two rails with the M5x16 screws using the 3 mm hex wrench to form
a butt or lap joint. Install the guide arms after unscrewing the standard guide arms
using the 4 mm hex wrench.
Flexible rail (1 unit):
PRW-0466-50-01-01-0
Magnet block set:
BLO-0466-68-00-00-0
(includes: 10 magnet blocks
and 22 screws M5x16)
Guide arms (2 units):
PRW-0476-50-01-00-1
