3.8.2. Welding with oscillation
If the oscillator is connected to the LIZARD welding carriage, several new settings will
appear in the menu (Tab. 2). Welding with oscillation is performed in the standard
manner, however, produced welds form a shape similar to the shape shown in Fig. 9
instead of the straight line from Fig. 8.
Parameter
Value
Description
0–100%
[step: 10% or 1%]
Relative amplitude of the oscillation.
0–100%
[step: 10% or 1%]
Relative speed of the oscillation. The
higher the speed, the shorter the
oscillation period.
0–5 s
[step: 1 or 0.1]
Delay in the top position of the
oscillation.
0–5 s
[step: 1 or 0.1]
Delay in the bottom position of the
oscillation.
YES
NO
Choosing YES locks the capability of
changing delay times during welding.

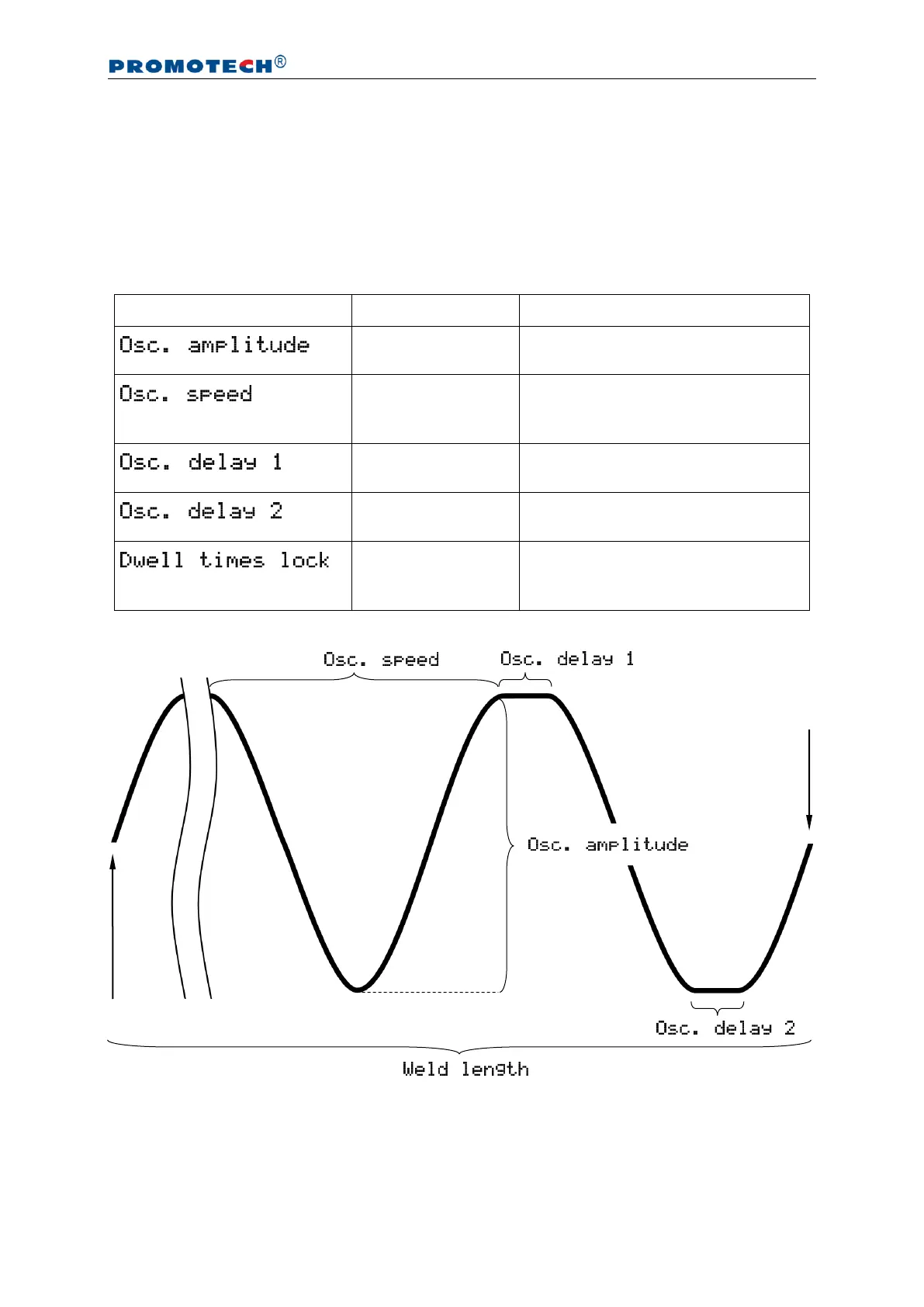

Tab. 2. Additional settings available with connected oscillator
Fig. 9. Graphic description of the oscillation parameters from Tab. 2
Starting point of the weld
Final point of the weld
