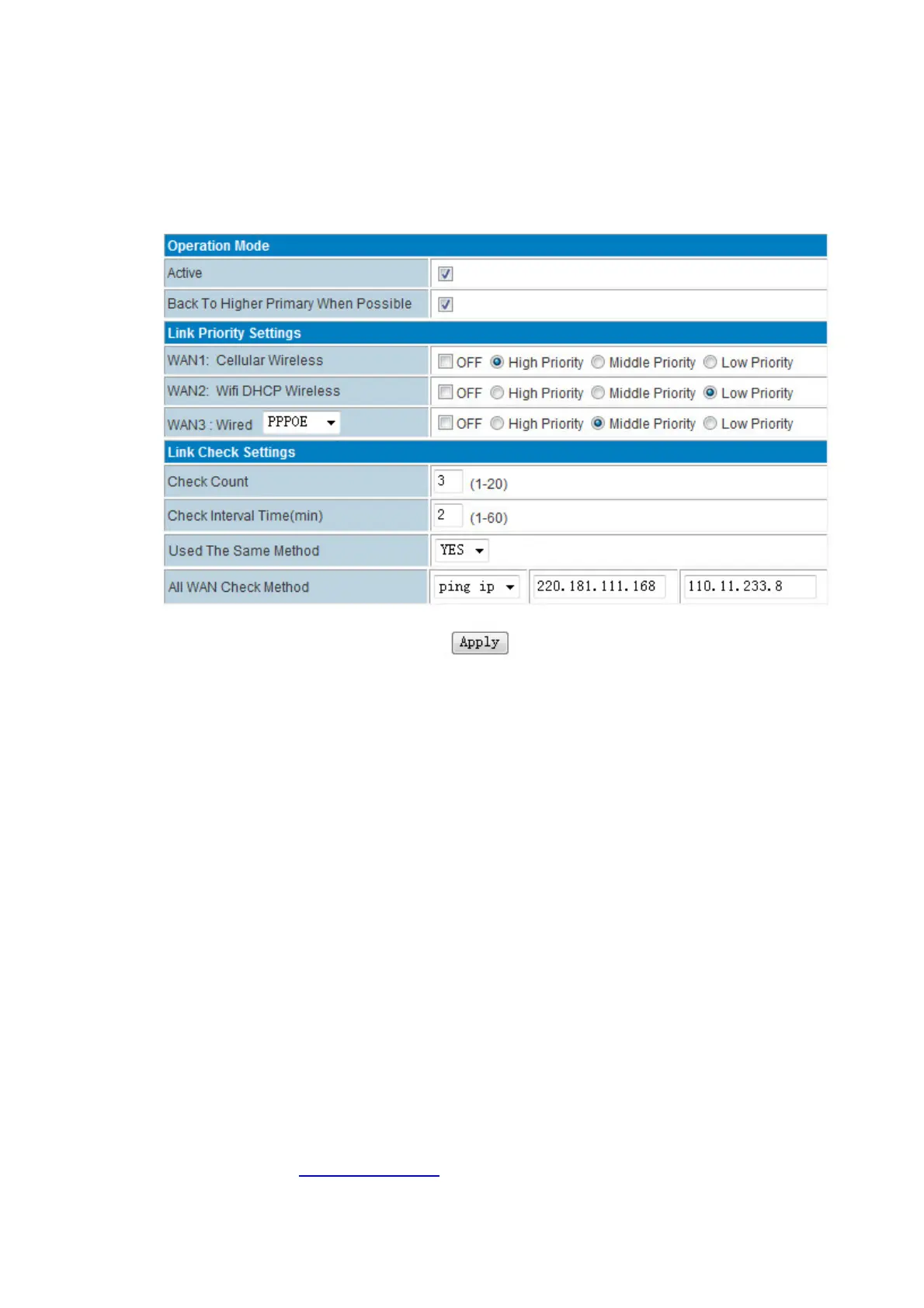

2.6 LinkBackup(RouteRedundancy)



OperationMode
 Active:disableorenablethelinkredundancy
 BacktoHigherPrimaryWhenPossible:
Ifyoutickthisoption,theProrouteH685willworkonthebackuplink,whetheritfailsornot,
itwillreturntomainlinkif
mainlinkisavailableagain.
Ifyoudonottickthisoption,theProrouteH685willnotswitchbacktomainlinkwhenthe
currentlinkfails.

LinkPrioritySett ings
 WAN1:CellularWireless
 WAN2:WiFiDHCPWireless
 WAN3:WiredXXX(XXX=DHCP,STATIC,PPPOE)

OFF:CheckOFFBlank
todisableorunchecktoenablethelinkred undancy
Priority:HighPriority,MiddlePriority,LowPriority.

LinkCheckSettings
 CheckCount:forexample,setitas3.Routerchecklinklive3times.
 CheckIntervalTime(min):forexample,setisas2.Routerchecklinkliveevery2

minutes.
