Forallenquiriespleasevisitwww.proroute.co.uk




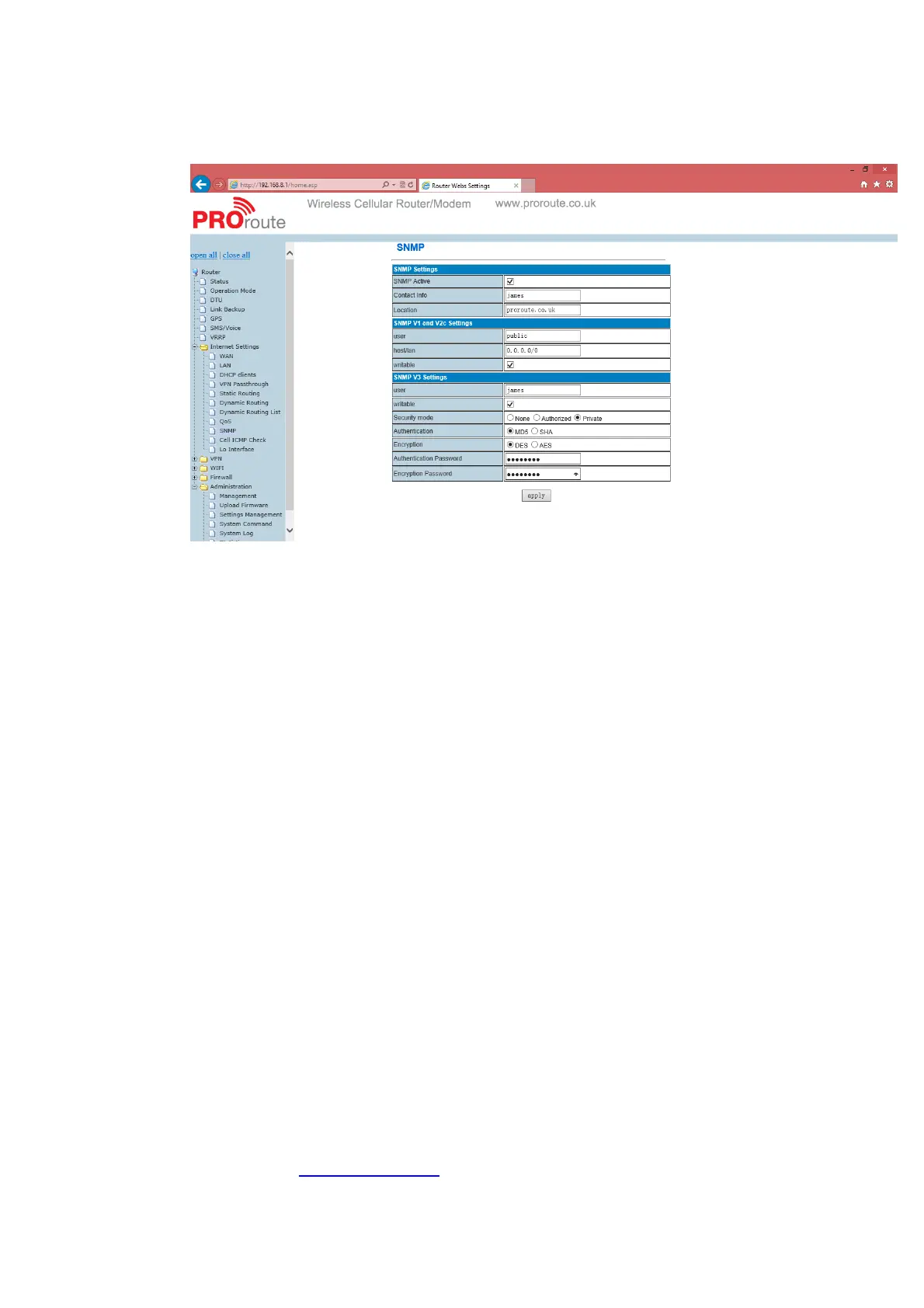

SNMPActive:tickittoactiveSNMPfeature.
ContactInfo:setthecontactinfohere
Location:setrouter’sinstallationaddress.
User:setpublicname
Host/Lan:setthenetworkrangetovisittherouterviaSNMP,defaultwesetallas0.0.0.0./0
Writable:tickittoenableit.

Securit yMode:choosethecorrectone,onlyforSNMPV3version.
Authentication:choosethecorrectone,onlyforSNMPV3version.
Encryption:choosethecorrectone,onlyforSNMPV3version.
AuthenticationPassword:fillintherightone.
EncryptionPassword:fillintherightone.
Click“Apply”button
andreboottherouter.

HerelistthemostimportantOID:
1.3.6.1.4.1.2021.255.4.1.2.9.103.101.116.95.109.111.100.101.109.1
(readmodulemodemmodel)
1.3.6.1.4.1.2021.255.4.1.2.10.103.101.1 16.95.117.112.116.105.109.10 1.1
(systemrunningtime)
1.3.6.1.4.1.2021.255.4.1.2.12.103.101.1 16.95.109.101.109.95.102.114.101.101.1
(memorycapacity)
1.3.6.1.4.1.2021.255.4.1.2.15.103.101.1 16.95.99.101.108.108.95.115.116.97.116.117.115.1
(3Gnetworkstatus)
1.3.6.1.4.1.2021.255.4.1.2.15.103.101.1 16.95.108.50.116.112.95.115.116.97.116.117.115.1
(pptpstatus)
