ProSoft Technology MVI56-MCM User Manual

MVI56-MCM ♦ ControlLogix Platform Reference
Modbus Communication Module
Page 142 of 159 ProSoft Technology, Inc.
July 24, 2008

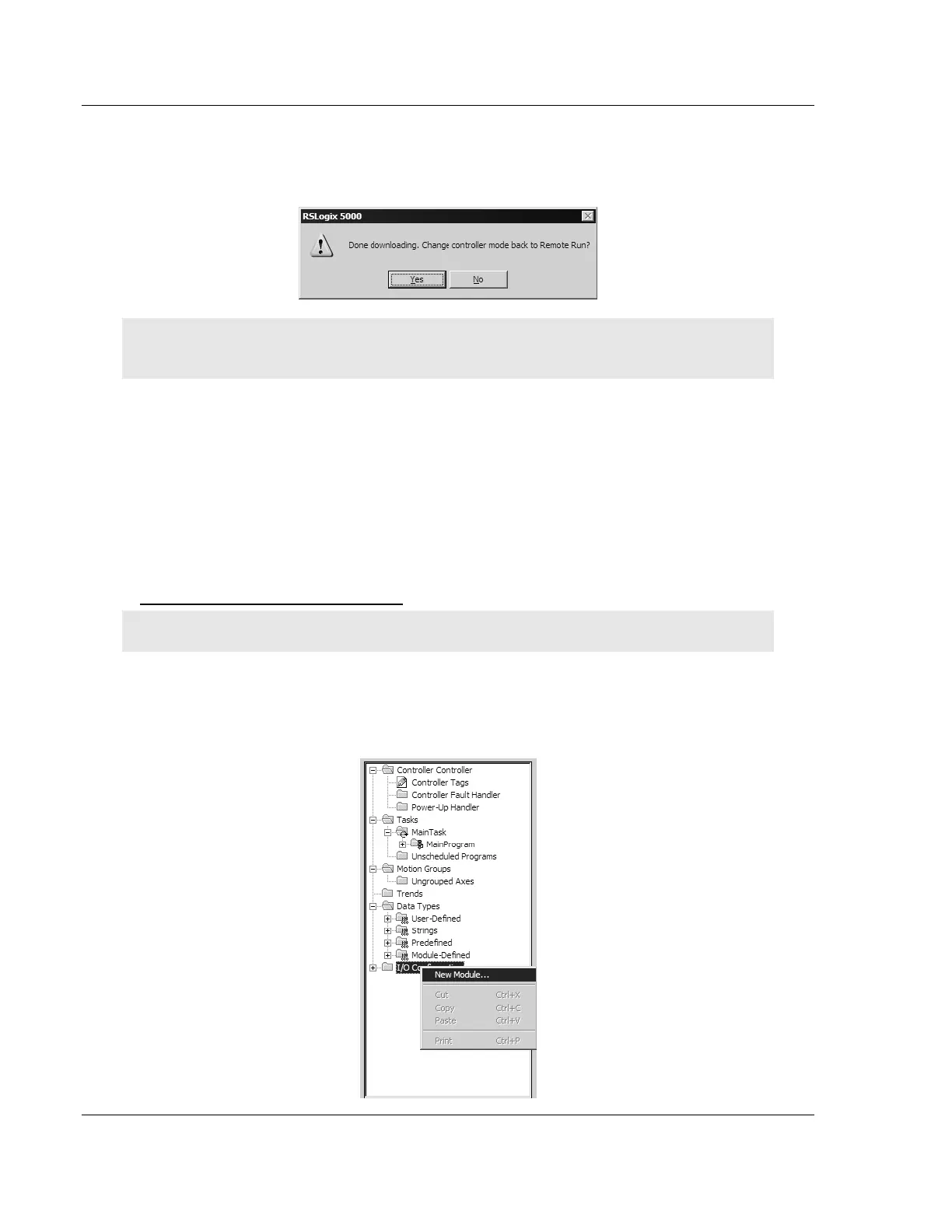

4 When the download is complete, RSLogix will open another confirmation
dialog box. Click OK to switch the processor from Program mode to Run
mode.
Note: If you receive an error message during these steps, refer to your RSLogix documentation to
interpret and correct the error.
8.10.2 Using the Sample Program in an Existing Application
1 Open the Sample Ladder Logic in RSLogix 5000.
2 Start another instance of RSLogix 5000, and then open your existing
application.
You will be adding the MVI56-MCM module definition, and then copying
controller tags, ladder logic, and user defined data types from the sample
application into your existing application.
Define Module in I/O Configuration
Note: You cannot perform this procedure while you are online to the controller.
1 In the Controller Organization list in RSLogix 5000, click the right mouse
button on the I/O Configuration option to open a shortcut menu. On the
shortcut menu, choose New Module…. This action opens the Select Module
Type dialog box.
