Diagnostics and Troubleshooting MVI56E-MCM ♦ ControlLogix Platform
User Manual Modbus Communication Module
Page 106 of 209 ProSoft Technology, Inc.

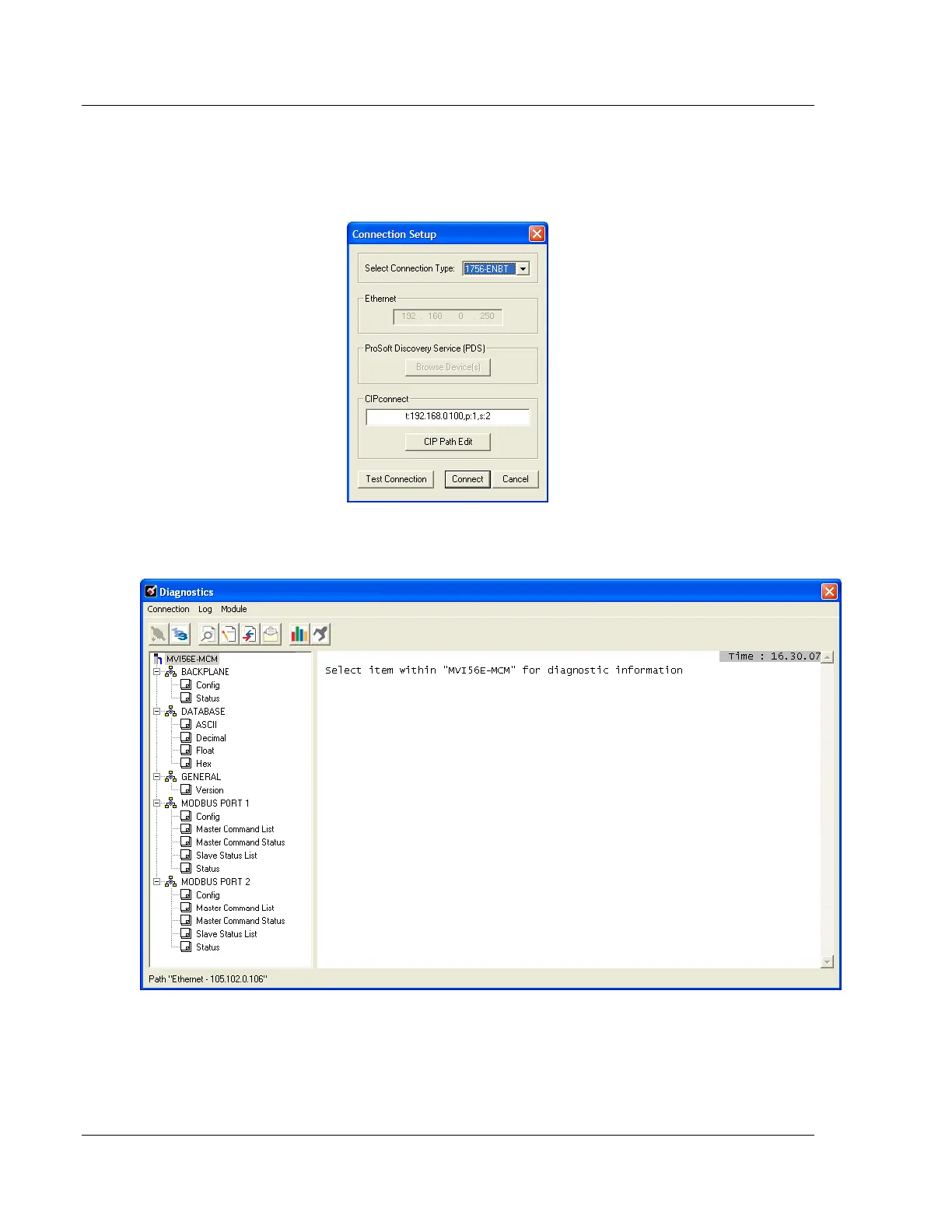

You can also use CIPconnect
®
to connect to the module through a 1756-
ENBT card by choosing 1756-ENBT in the SELECT CONNECTION TYPE list
Refer to Using CIPconnect to Connect to the Module for information on how
to construct a CIP path.
5 If the Test Connection is successful, click CONNECT to display the
Diagnostics menu in the Diagnostics Window.
