Reference MVI56E-MCM ♦ ControlLogix Platform
User Manual Modbus Communication Module
Page 188 of 209 ProSoft Technology, Inc.

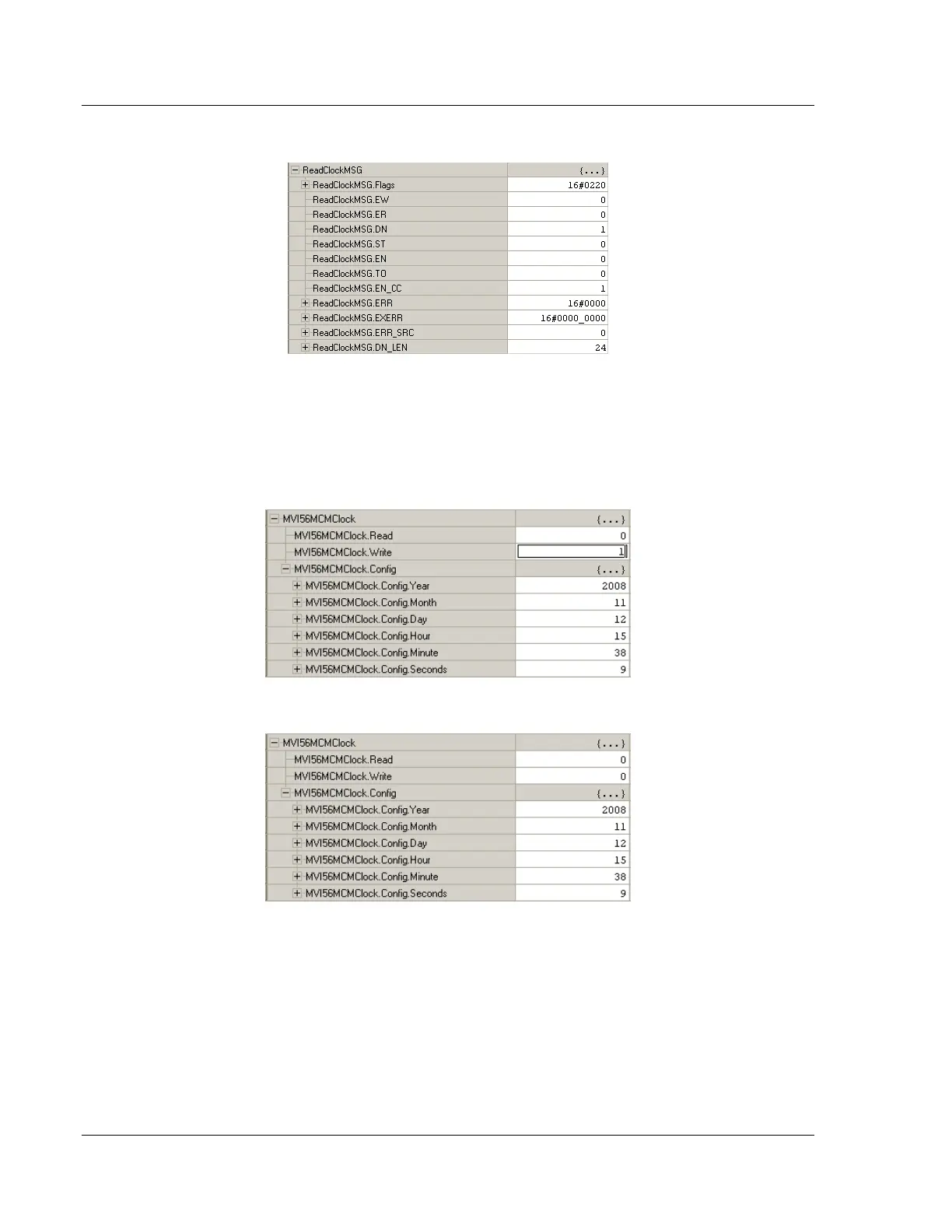

To check the status of the message, refer to the READCLOCKMSG tag.
6.9.7 Writing the Clock Value to the Module
Expand the MVI56MCMCLOCK controller tag.
Set the new Clock value in MVI56MCMCLOCK.CONFIG
Move a value of 1 to MVI56MCMCLOCK.WRITE
The bit will be automatically reset to 0.
