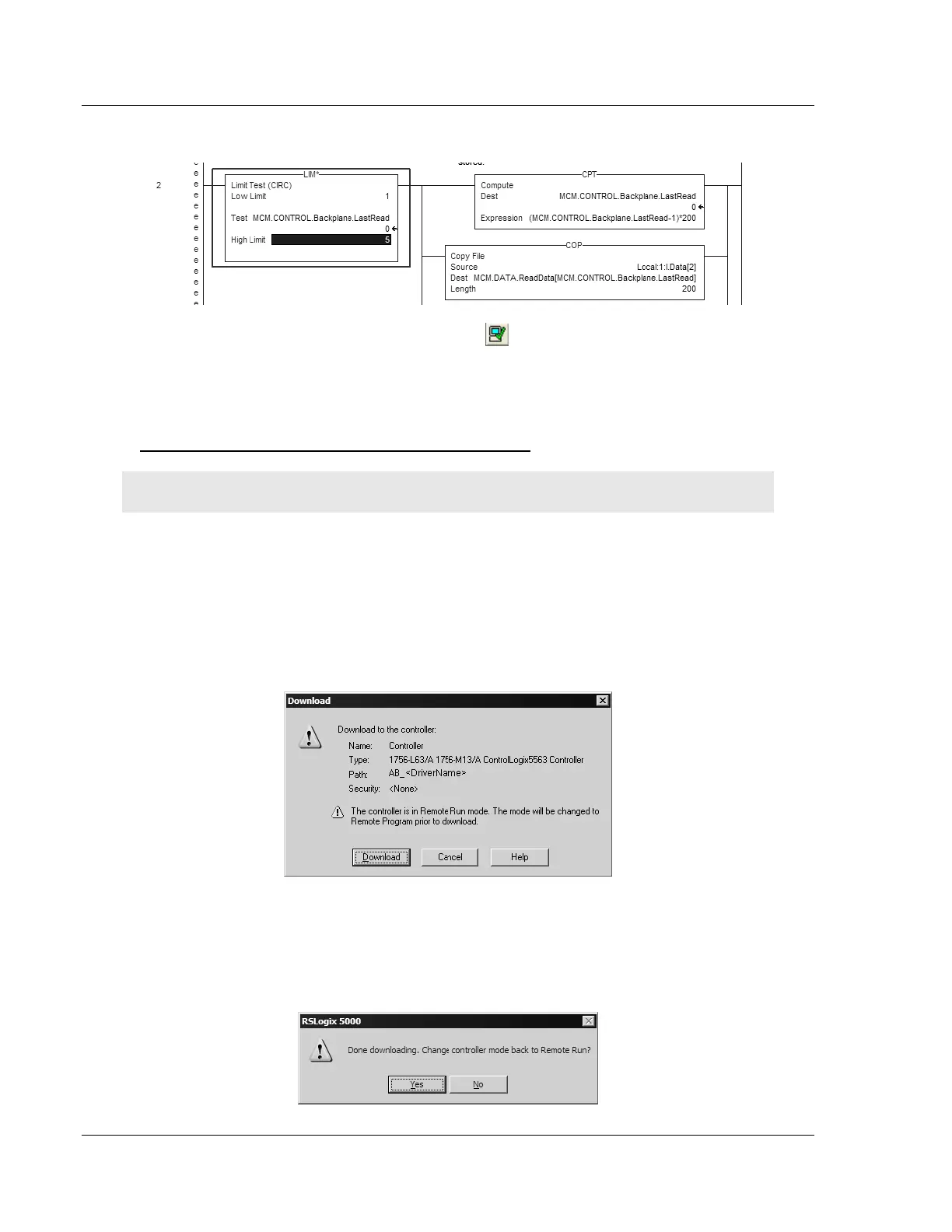

Reference MVI56E-MCM ControlLogix Platform
User Manual Modbus Communication Module
Page 194 of 209 ProSoft Technology, Inc.
(1000 registers / 200 registers per block = 5 blocks of data)
3 Verify the change to this rung. Toggle the object within RSLogix 5000.
4 Save and download ladder to the processor.
5 When Online with the ControlLogix processor, toggle the
MCM.CONTROL.WARMBOOT bit to download the changes to the processor.
Downloading the Sample Program to the Processor
Note: The key switch on the front of the ControlLogix module must be in the REM position.
1 If you are not already online to the processor, open the COMMUNICATIONS
menu, and then choose DOWNLOAD. RSLogix will establish communication
with the processor.
2 When communication is established, RSLogix will open a confirmation dialog
box. Click the DOWNLOAD button to transfer the sample program to the
processor.
3 RSLogix will compile the program and transfer it to the processor. This
process may take a few minutes.
4 When the download is complete, RSLogix will open another confirmation
dialog box. Click OK to switch the processor from PROGRAM mode to RUN
mode.
