MVI56E-MCM ♦ ControlLogix Platform Configuration as a Modbus Slave
Modbus Communication Module User Manual
ProSoft Technology, Inc. Page 67 of 209

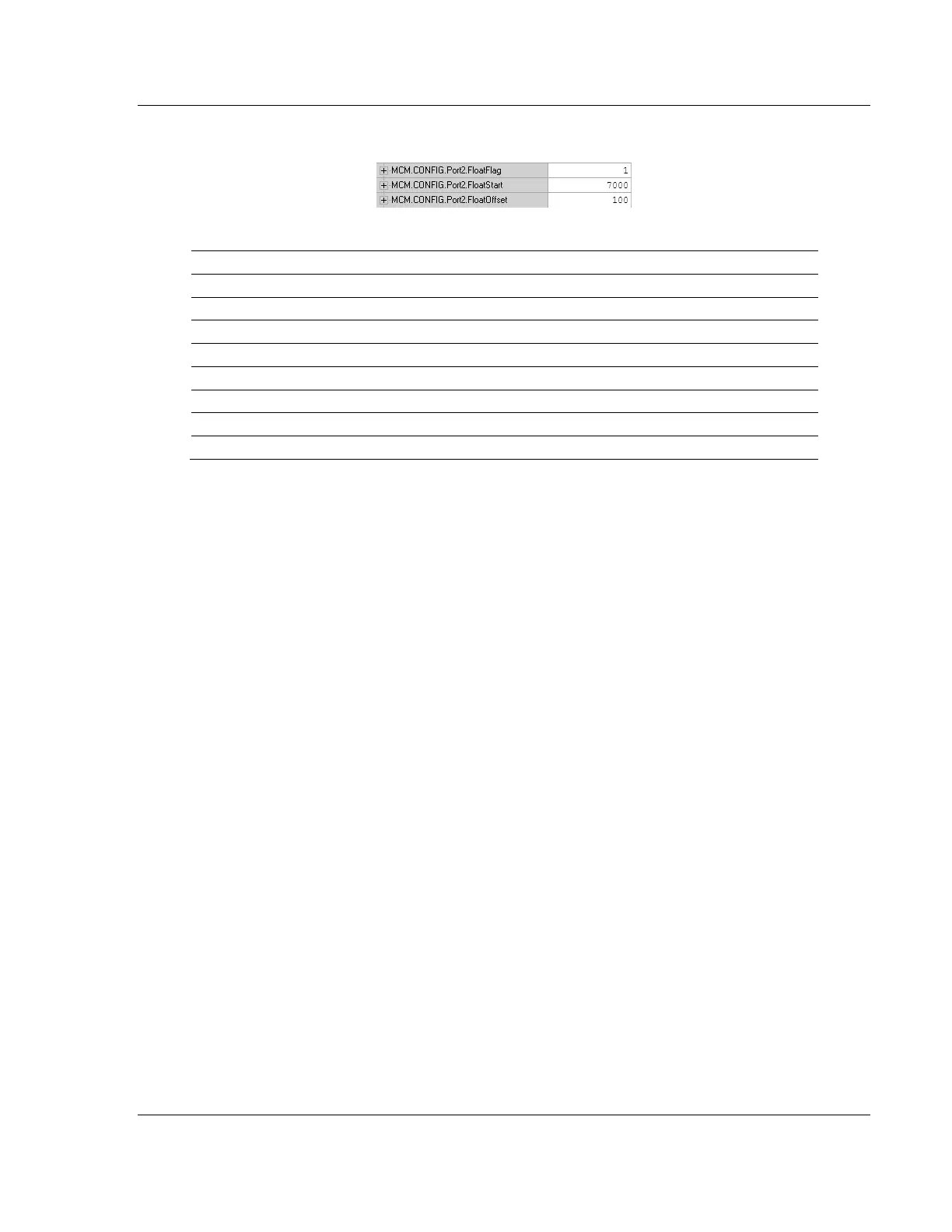

Here is a sample configuration for the module.
With the above configuration, this would be the addressing for the module.
Module Address
Modbus Address
Tag Address
100
47001
MCM.DATA.WriteData[100]
102
47002
MCM.DATA.WriteData[102]
104
47003
MCM.DATA.WriteData[104]
110
47006
MCM.DATA.WriteData[110]
120
47011
MCM.DATA.WriteData[120]
200
47051
MCM.DATA.WriteData[200]
300
47101
MCM.DATA.WriteData[300]
500
47201
MCM.DATA.WriteData[500]
