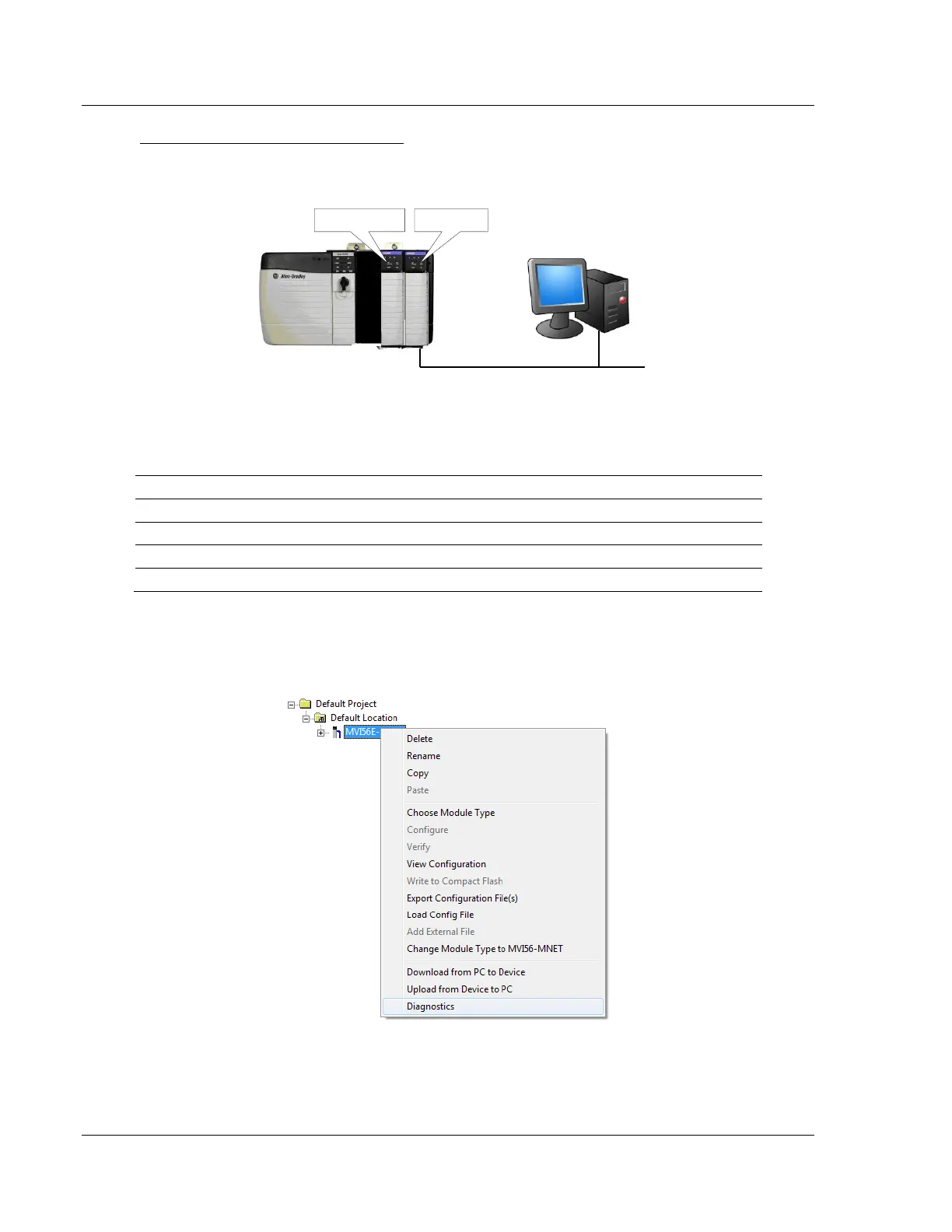

Example 1: Local Rack Application
For this example, the MVI56E-MCM module is located in the same rack as the
1756-ENBT that is connected to the PC.
Ethernet
Rack 1
MVI56E Module 1756-ENBT
0 1 2
3
Rack 1
Slot
Module
Network Address
0
ControlLogix Processor
-
1
Any
-
2
MVI56E-MCM
-
3
1756-ENBT
IP=192.168.0.100
1 In ProSoft Configuration Builder, right-click the MVI56E-MCM icon to open a
shortcut menu.
2 On the shortcut menu, choose DIAGNOSTICS.
