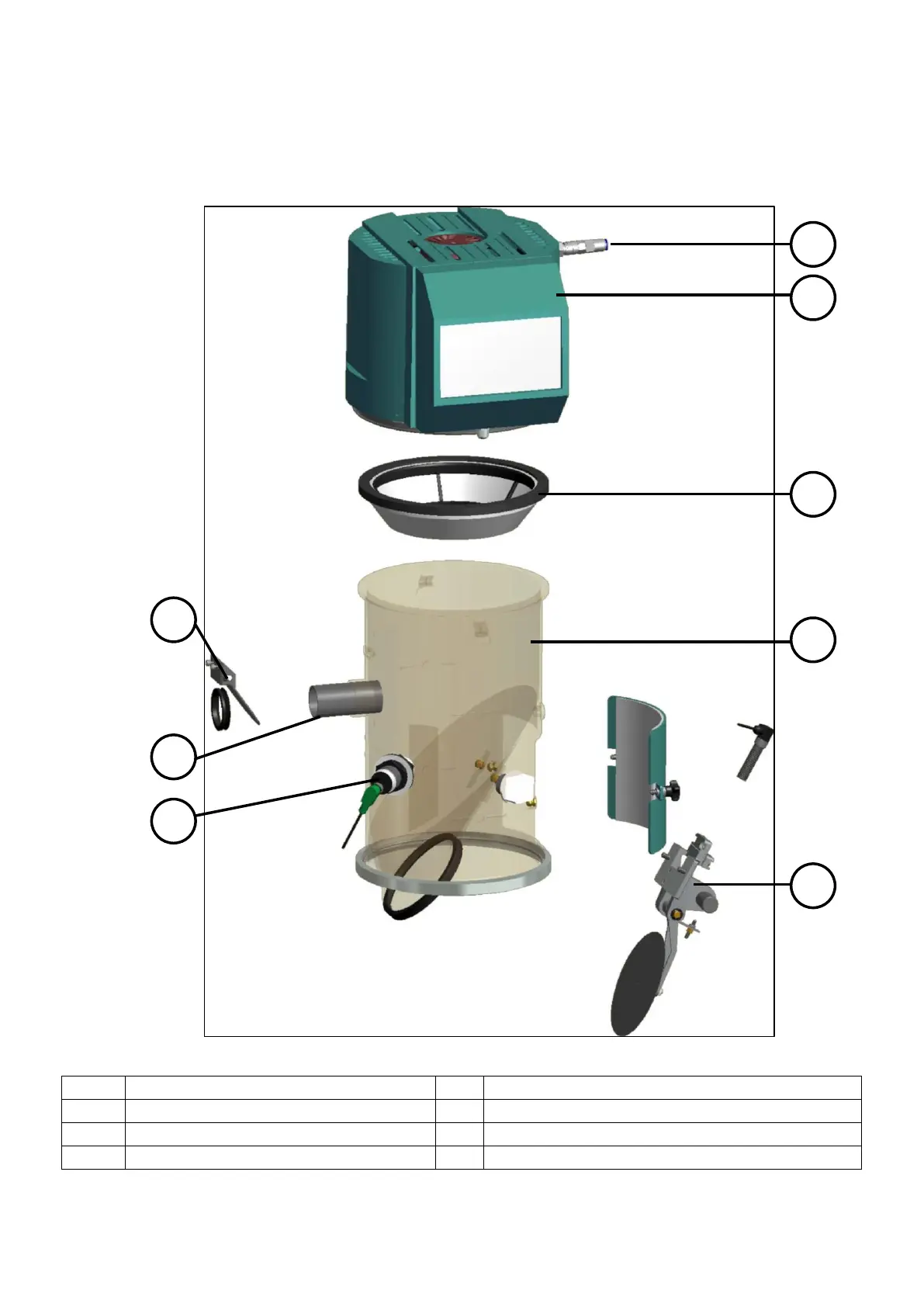

3.4 Assembling
3.4.1 FG 201 to FG 204
1
Blower hood with controls
2
Filter insert (cloth filter)
3
Conveyed goods container
4
Floor flap unit
5
Filling level sensor (Optional)
6
Nozzles
7
Check valve
8
Compressed air connection
8
7
4
3
2
6
5
1
