8.4 Conveyed goods container
8.4.1 Replacing the proximity switch
1. Stop the conveying cycle.
2. Switch off power from device.

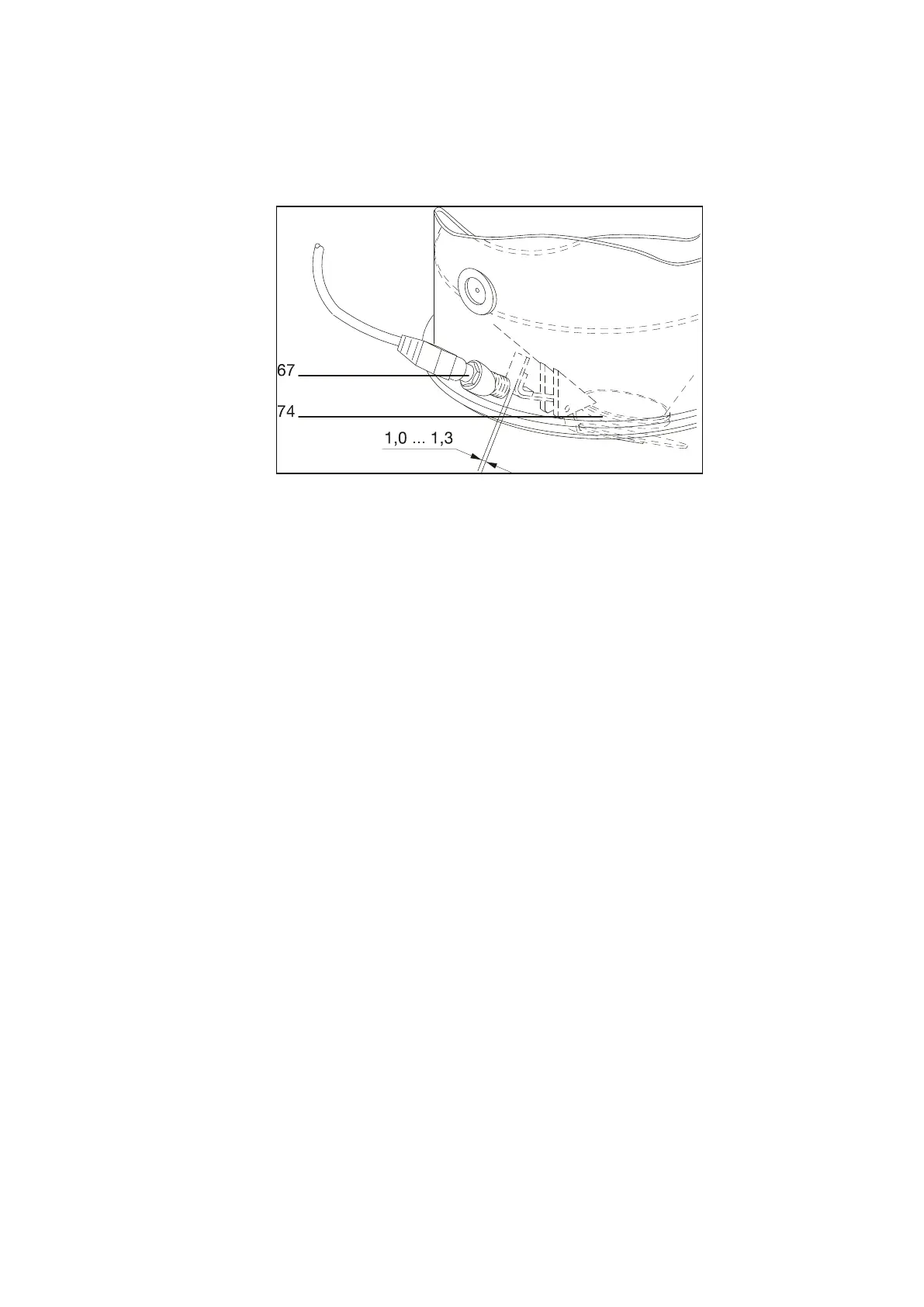

3. Unscrew the cable plug from the proximity switch (67).
4. Loosen the lock nut and unscrew the switch.
5. Screw in new proximity switch.
There must be a gap of approx. 1.0 to 1.3 mm between the switch and the lever of the
discharge flap.
6. Stick on the cable plug and screw tightly.
8.4.2 Replacing the V-gasket on the discharge flap
1. Remove device.
2. Carefully remove the old gasket (74).
3. Glue the new gasket with Loctite 480.
4. Refasten the device.
