ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en
55
8.3.3 Replacing the blower
Preparation:
1. Switch off the conveyor.
2. Disconnect the conveyor from the mains power.
3. Let the conveyor cool off (approx. 5 minutes).
8.3.4 Removing the blower (Version FG 201 and FG 204)
1. Loosen the tensioning rings.
2. Remove hood.
3. Place the hood on its head.
4. Loosen the screwed connection of plastic hood blower (three screws on the lower edge
of the plastic hood).

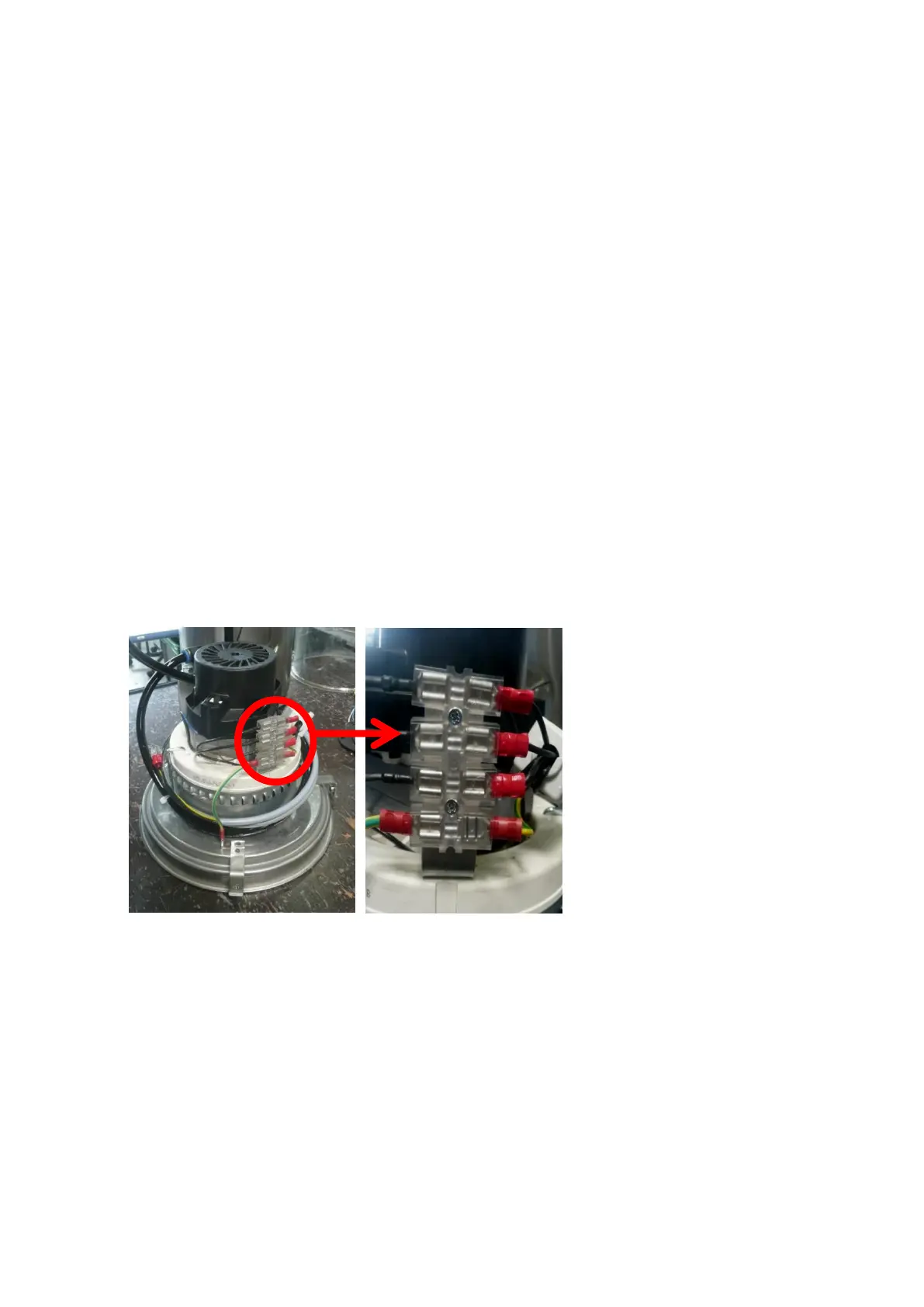

5. Pull the cable of the control system from the cable lug.
6. Unscrew the blower from the sheet metal protection.
