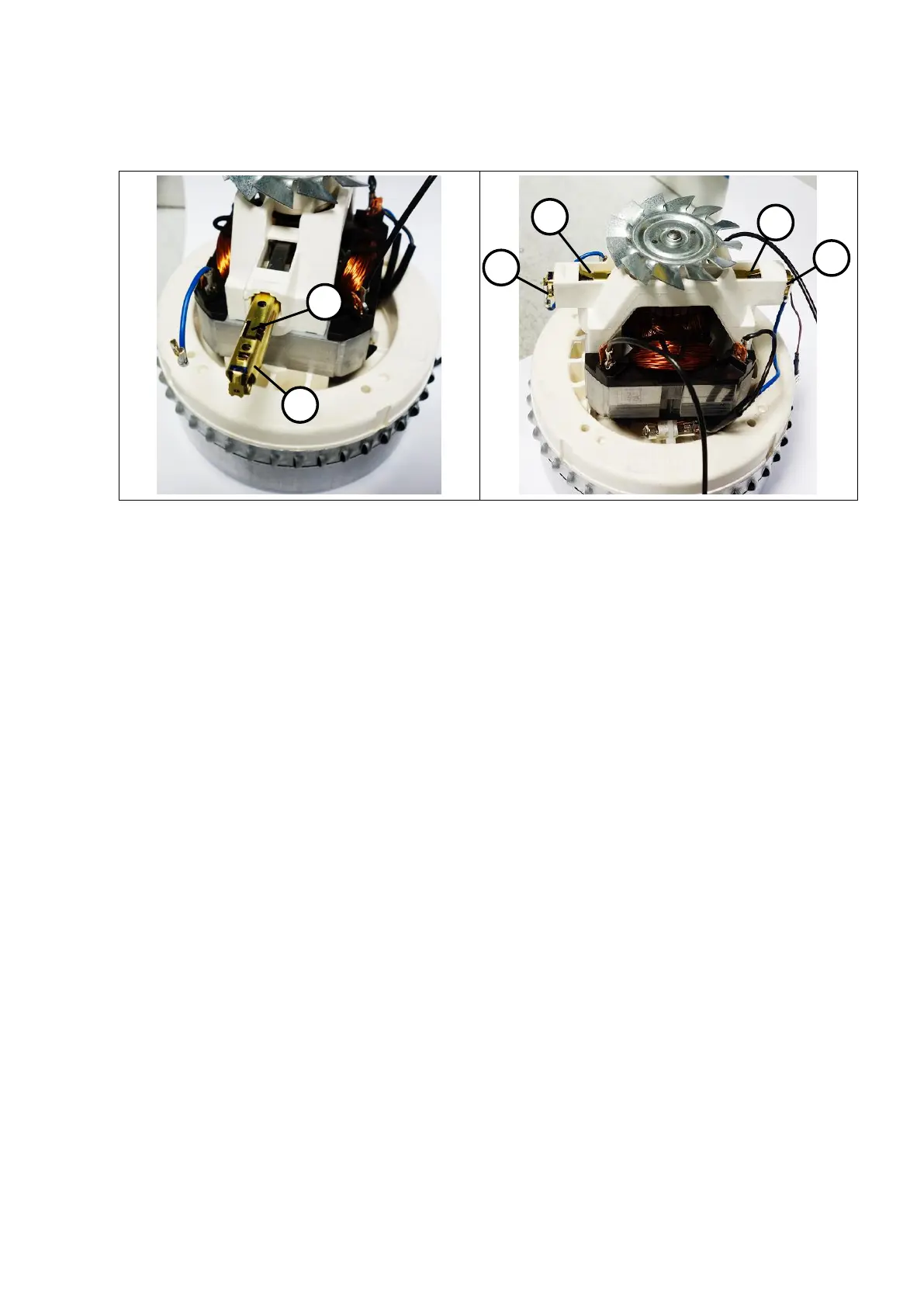

4. Have ready two new carbon brushes (4a) with intact holding lugs (4b). Push each of the
old carbon brushes (5a) slightly in the holder (2) while bending the holding lug (5b)
downward and then pull out the carbon brush.
5. Push each of the new carbon brushes (4a) so far into the holder until the holding lug is
visible in the opening. To secure the carbon brush holding lug (4b) bend it upwards.
6. Push both plug connectors (3) back on.
7. Place on the rotor hood (1a) and make sure that the snap-in hooks (1b) are cleanly
latched on the carbon brush holders (2).
