ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en
64
8.5 Dosing attachment (optional)
Before maintenance
1. Stop the conveying cycle.
2. Switch off power from device.
3. Disconnect the device from the compressed air system.
4. Depressurise the compressed air supply line.

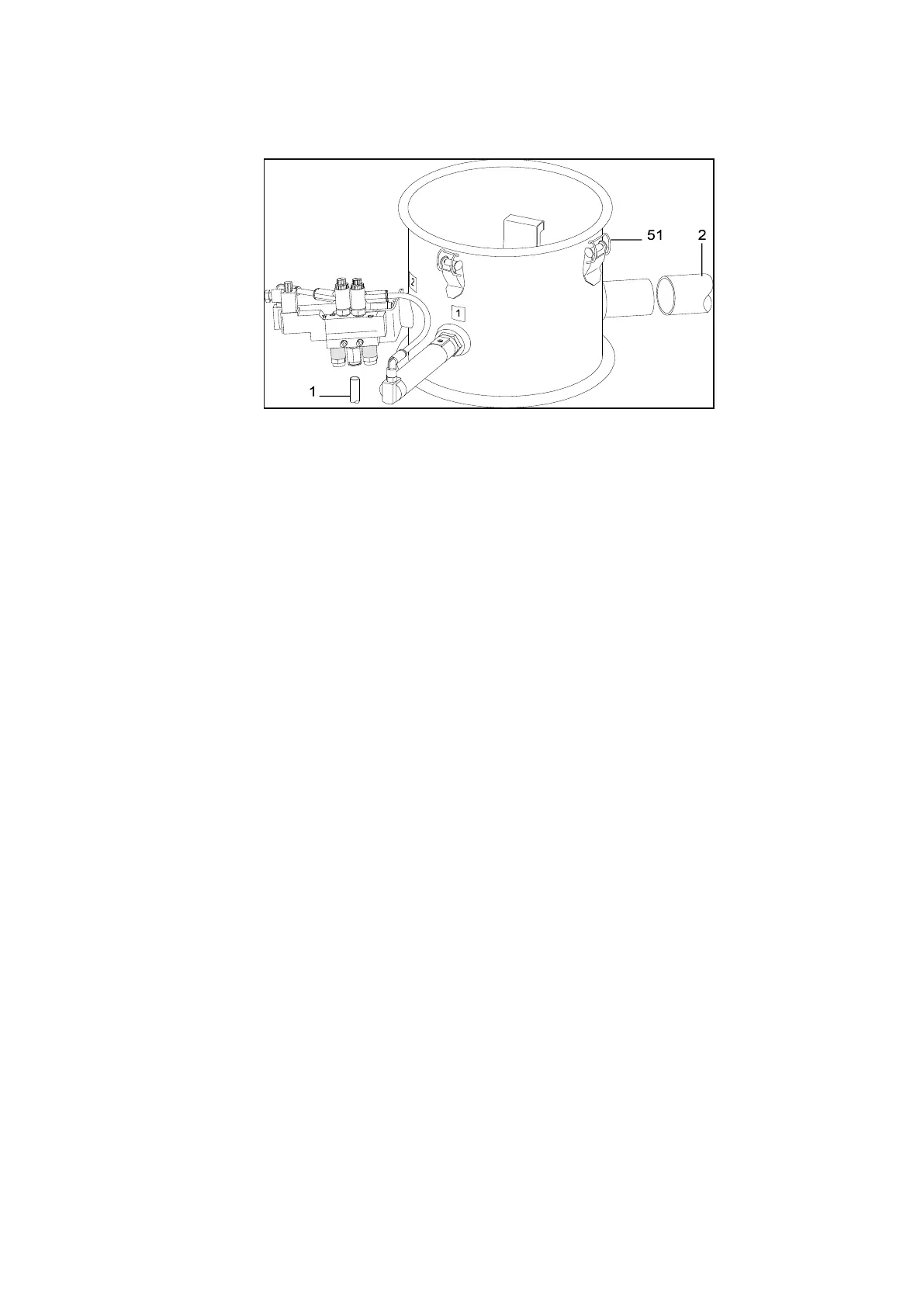

5. Remove the compressed air supply line (1) from the control valve (see figure above).
6. Remove conveying hose (2).
7. Open locks (51).
8. Remove blower attachment.
9. Open tensioning ring and removed dosing attachment from conveying goods container.
