ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en
50
Conveying air filter 0.06

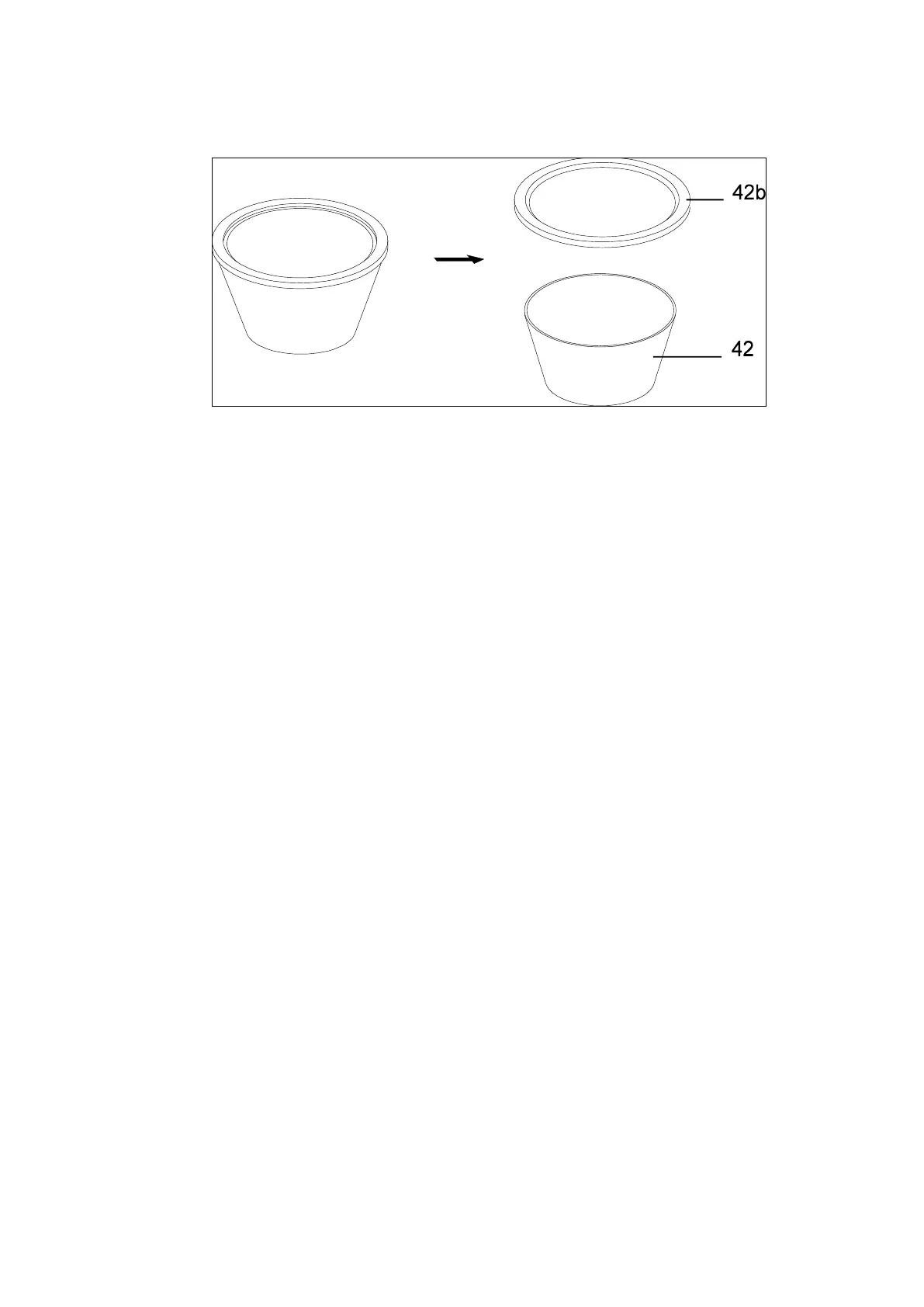

1. Remove sealing ring (42b) and clean it.
2. Install the sealing ring on a new conveying air filter (42).
3. Place filter insert in the conveyed goods container or the volume expansion.
4. Set on the blower attachment.
5. Fasten locks.
6. Connect plug connectors.
7. Put on compressed air coupling.
8. Connect device to mains power.
9. Start conveying cycle.
