N93-582-02 Issue 1 NH Page 18 of 28 © Protec Fire Detection plc 2015
12.0 Programming Test Group Options
Each test group must have various parameters programmed. The values of these parameters depends on
specific site requirements and codes of practice.
Each test group has a line of parameters to be programmed.
Loop device data programming is done in the Edit -> Test Options window, as illustrated in figure 12.0

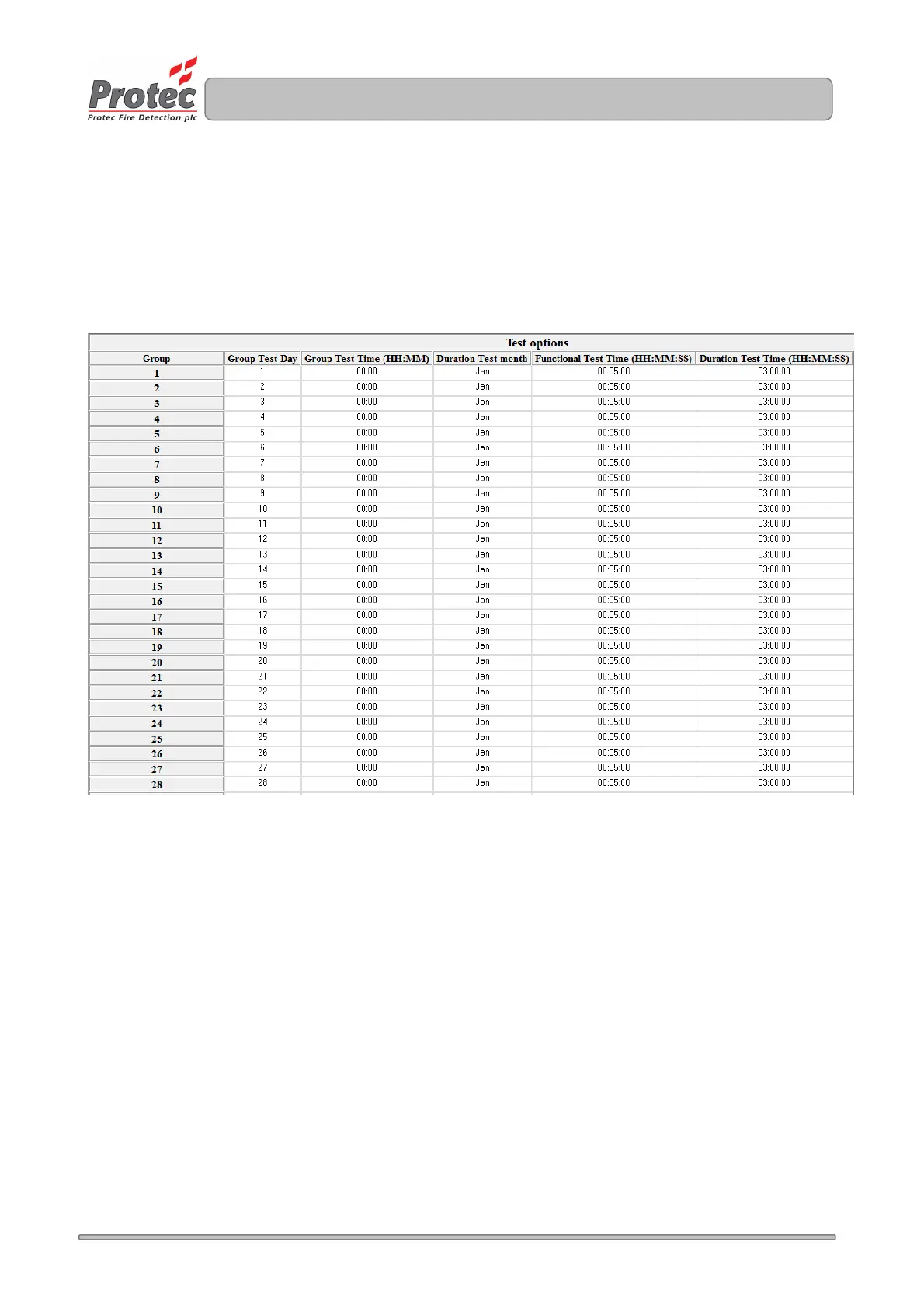

Figure 12.0 Test Options Screen
12.1 Programming the Day of the Month a Group Is Tested
The day of the month in which devices in a group are tested can be programmed. It is usual to program the
system to make a single group test on a particular day of the month, but the Digilite® DL500 has the
flexibility to change this as required by the commissioning engineer.
Click in the 'Group Test Day' cell for the group being programmed and set this to a day of the month ranging
from 1 to 28.
