2-5. COM PORT RI & VOLTAGE SELECTION
JP_COM1 , JP_COM2, JP_COM3: COM Port RI & Voltage Selection
The selections are as follows:
SELECTION JUMPER
SETTINGS
JUMPER

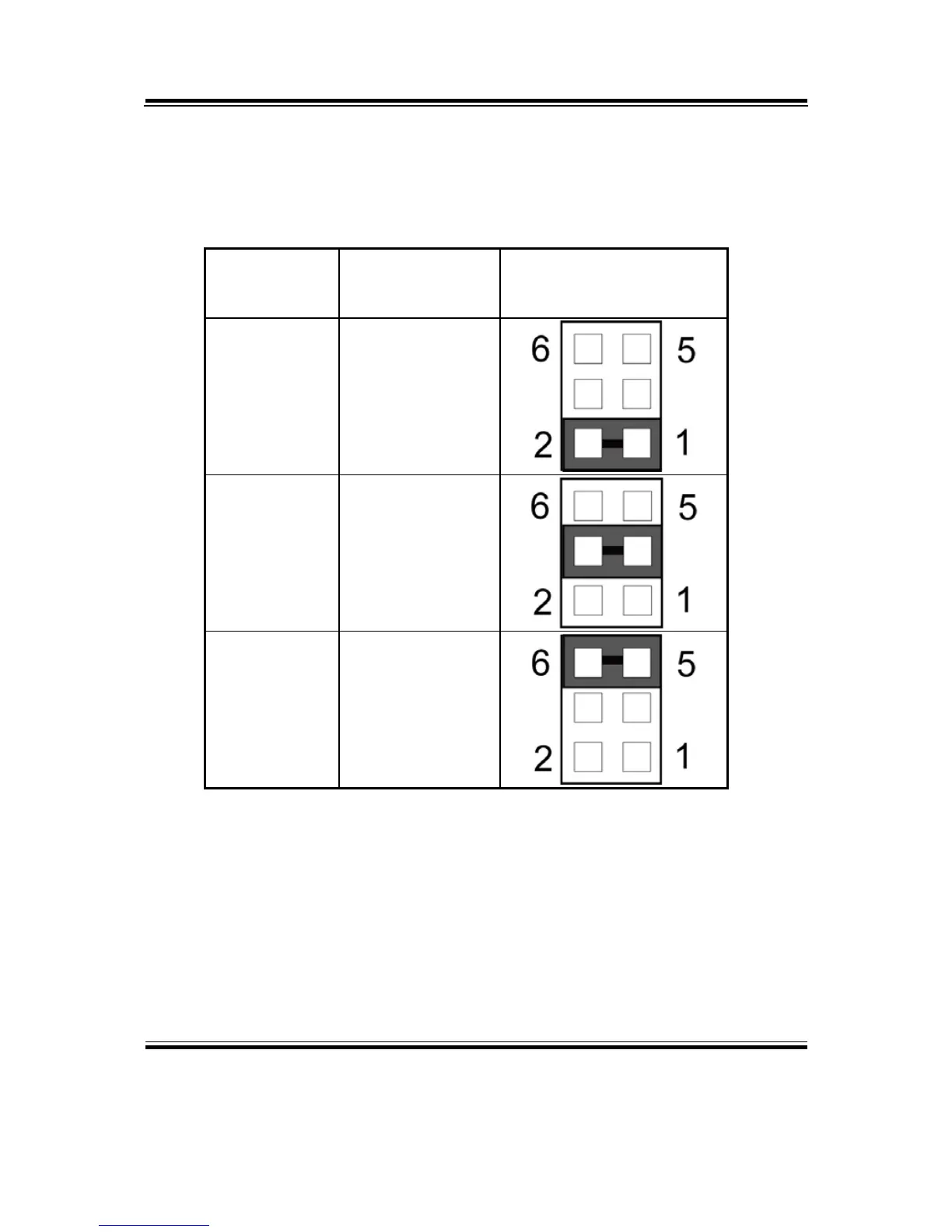

ILLUSTRATION
RI
1-2
VCC12 3-4
VCC 5-6
***Manufacturing Default – RI.
