2-10. CASH DRAWER POWER SELECTION
JP2 : Cash Drawer Power Selection
The jumper settings are as follows :

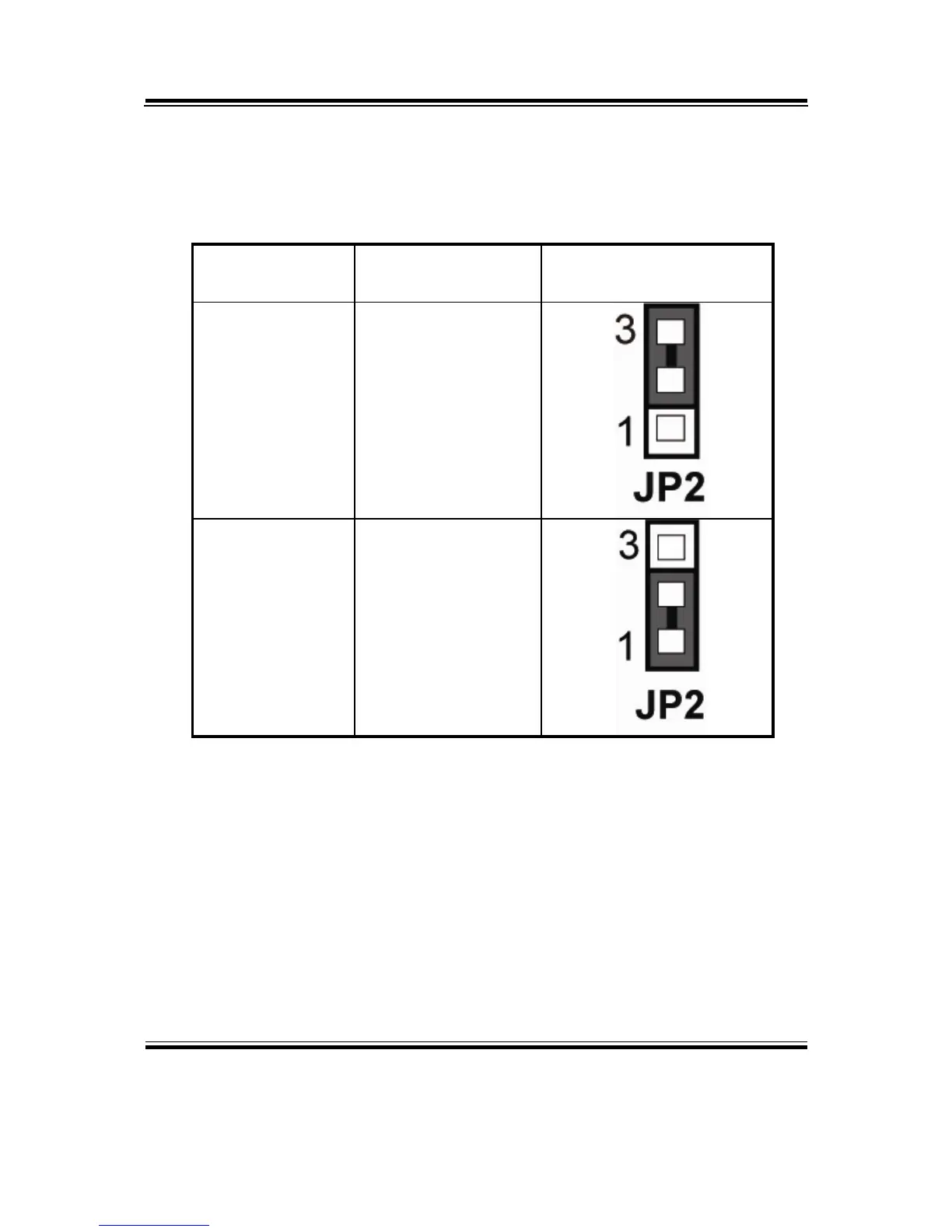

SELECTION JUMPER SETTINGS JUMPER
ILLUSTRATION
+12V
(default)
2-3
+24V 1-2
*** Manufactory default --- +12V.
