protech PS3100 Series - Power LED Connector

Chapter 2 Hardware Configuration
PS3100 SERIES USER’S MANUAL
Page: 2-17
2-11. POWER LED CONNECTOR
JPWR_LED : Power Switch Connector
The pin assignment is as follows :

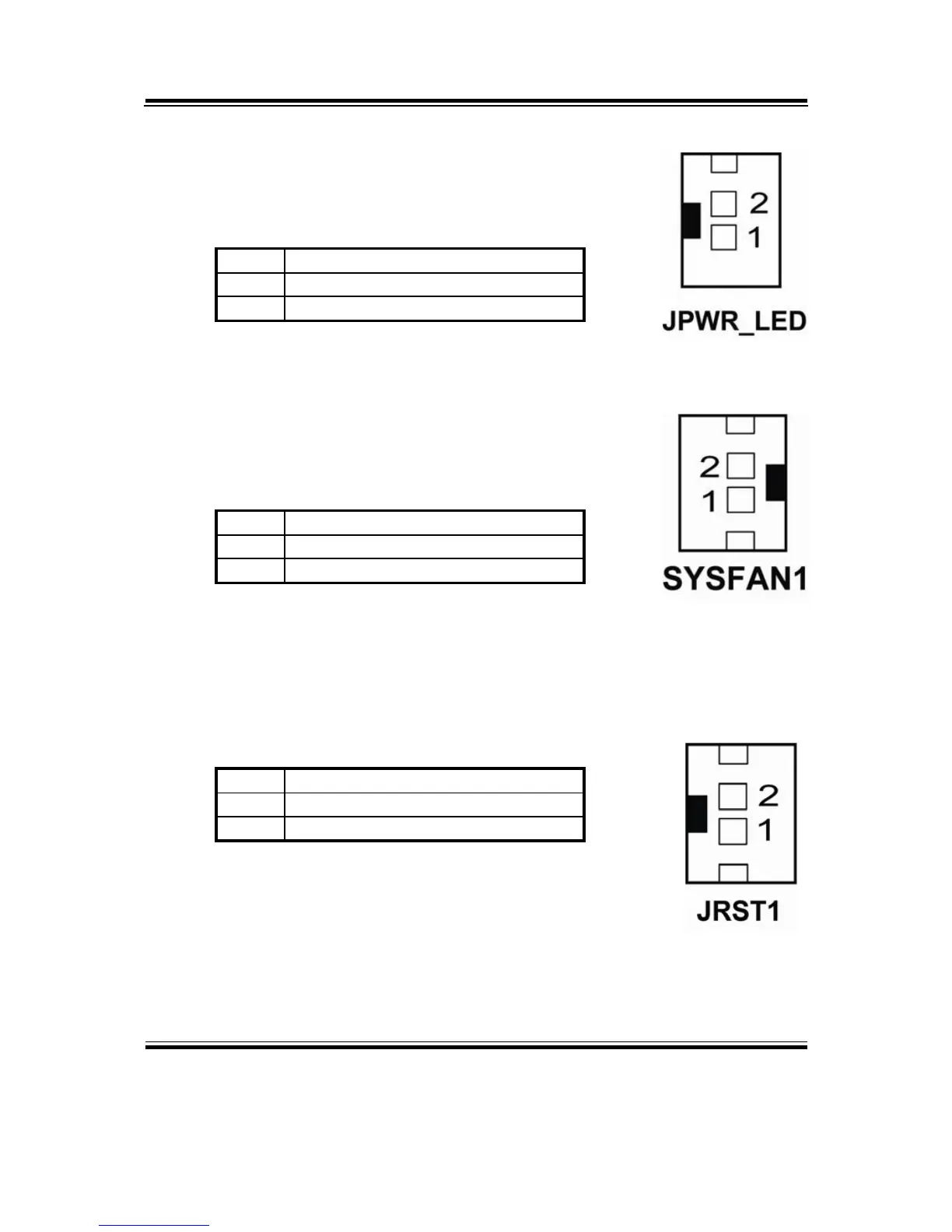

PIN ASSIGNMENT
1 VCC_PWR_LED
2 PWRLED
2-12. SYSFAN1 CONNECTOR
SYSFAN1 : Power Switch Connector
The pin assignment is as follows :
PIN ASSIGNMENT
1 GND
2 VCC12
2-13. RST SWITCH CONNECTOR
JRST1 : Power Switch Connector
The pin assignment is as follows :
PIN ASSIGNMENT
1 RST_SW
2 GND
