protech PS3100 Series - LAN & USB Connector

Chapter 2 Hardware Configuration
PS3100 SERIES USER’S MANUAL
Page: 2-13
2-8. LAN & USB CONNECTOR

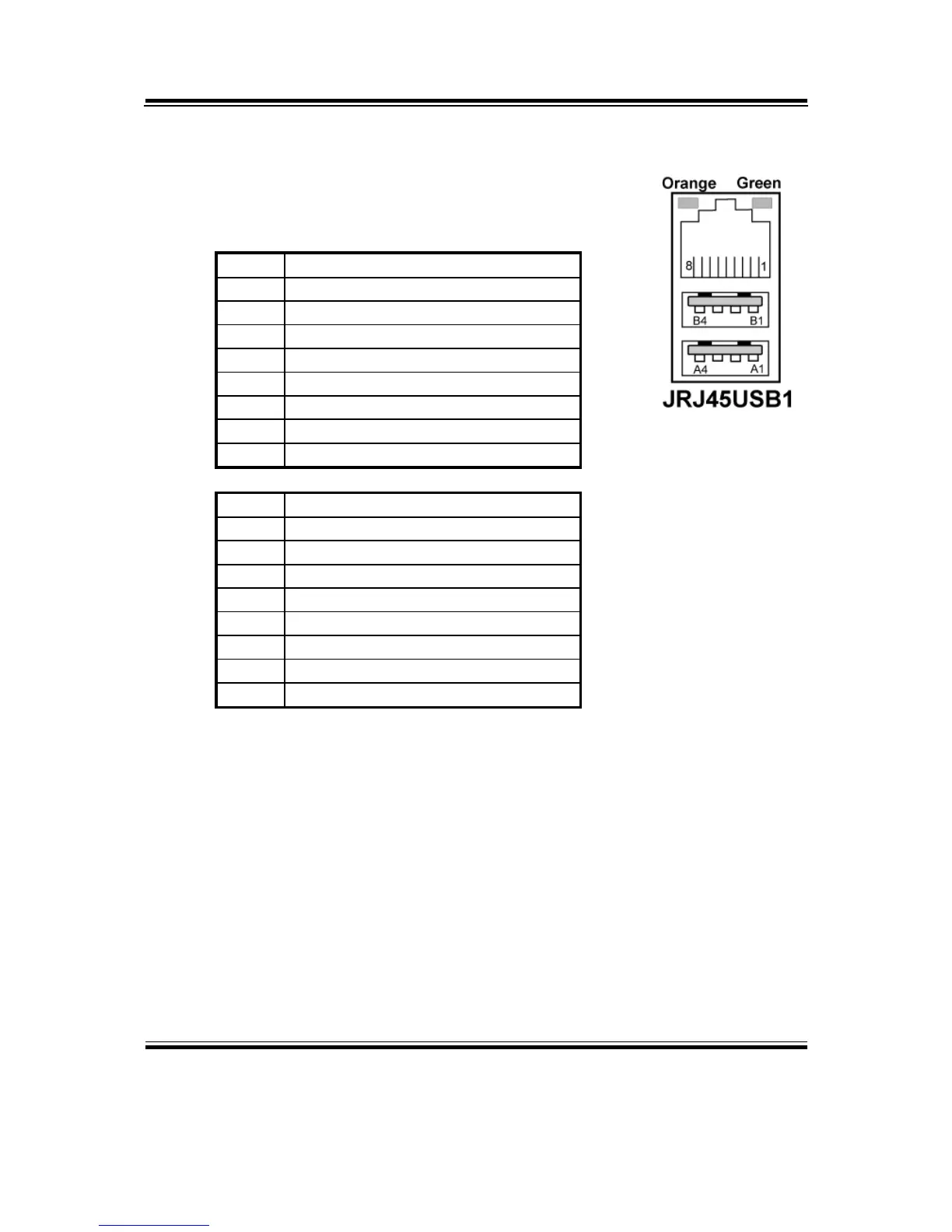

JRJ45USB1 : LAN & USB Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 LAN1_MDIP0
2 LAN1_MDIN0
3 LAN1_MDIP1
4 LAN1_MDIN1
5 LAN1_MDIP2
6 LAN1_MDIN2
7 LAN1_MDIP3
8 LAN1_MDIN3
PIN ASSIGNMENT
A1 VCC5
A2 USB0-
A3 USB0+
A4 GND
B1 VCC5
B2 USB1-
B3 USB1+
B4 GND
