Chapter 2 Hardware Configuration
Page: 2-20
PS3100 SERIES USER
’S MANUAL

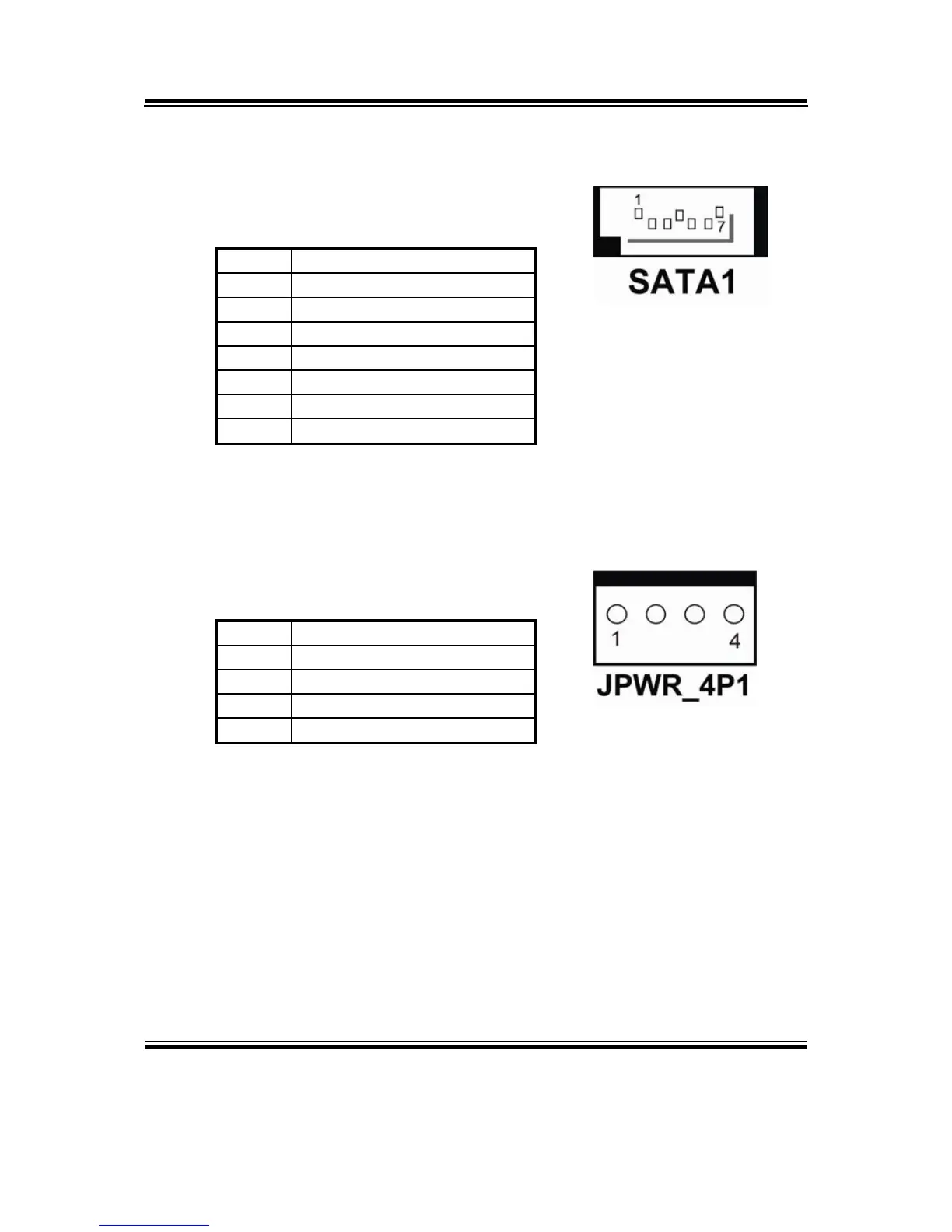

2-19. SATA CONNECTOR
SATA1 : Serial ATA Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 G1
2 TX+
3 TX-
4 G2
5 RX-
6 RX+
7 G3
2-20. SATA POWER CONNECTOR
JPWR_4P1 : Serial ATA Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 VCC
2 GND
3 GND
4 VCC12
