protech PS3100 Series - Mini-DIM and USB Connector

Chapter 2 Hardware Configuration
Page: 2-10
PS3100 SERIES USER
’S MANUAL
2-6. MINI-DIM AND USB CONNECTOR

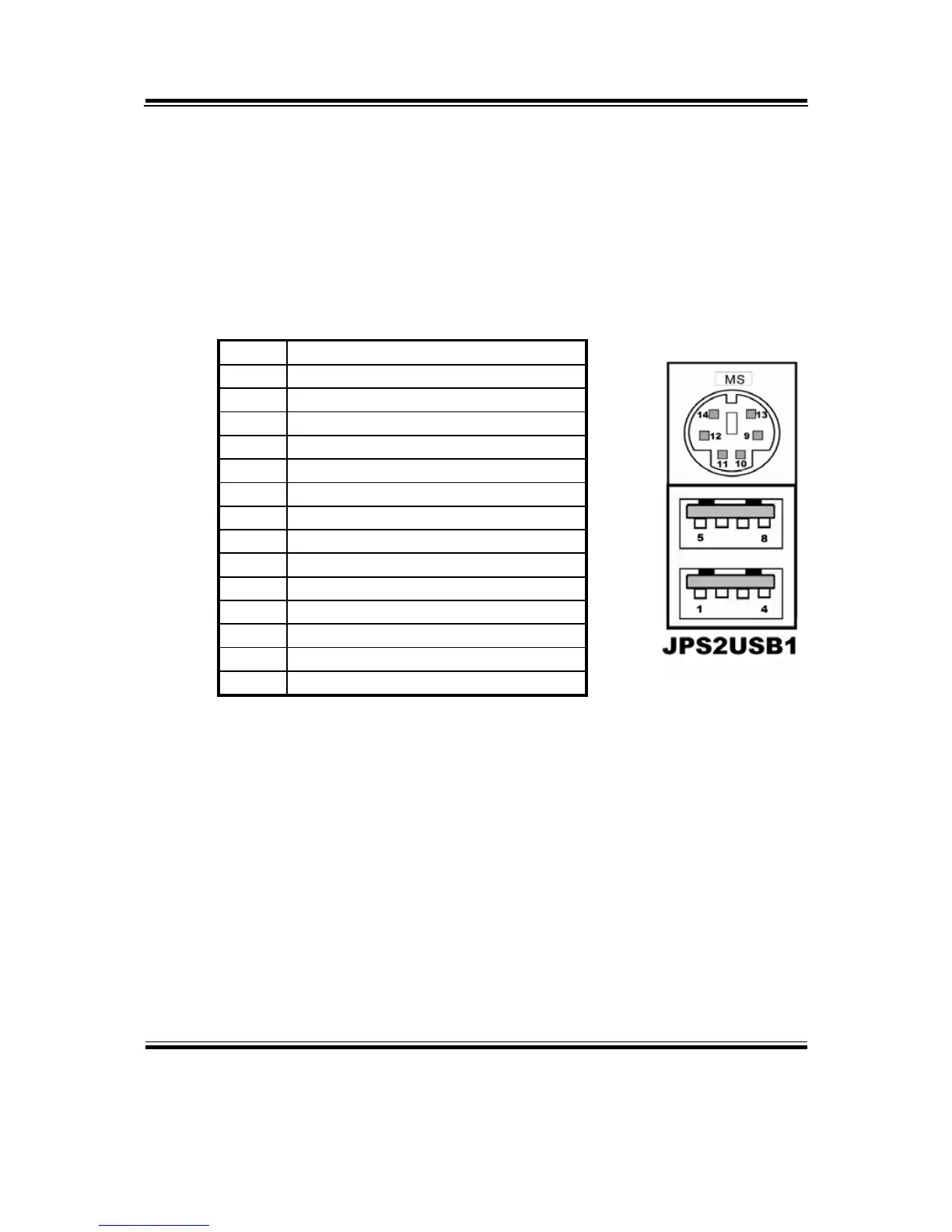

JPS2USB1 : Two USB Ports Connector and MINI-DIM
MINI-DIN connector can support keyboard, Y-cable. Please use Y-cable if
using PS/2 mouse.
The pin assignment is as follows :
PIN ASSIGNMENT
1 GND
2 USB2+
3 USB2-
4 VCC5
5 GND
6 USB3+
7 USB3-
8 VCC5
9 GND
10 KDAT
11 MDAT
12 V5SB
13 KCLK
14 MCLK
