Chapter 2 Hardware Configuration
PS3100 SERIES USER’S MANUAL
Page: 2-11

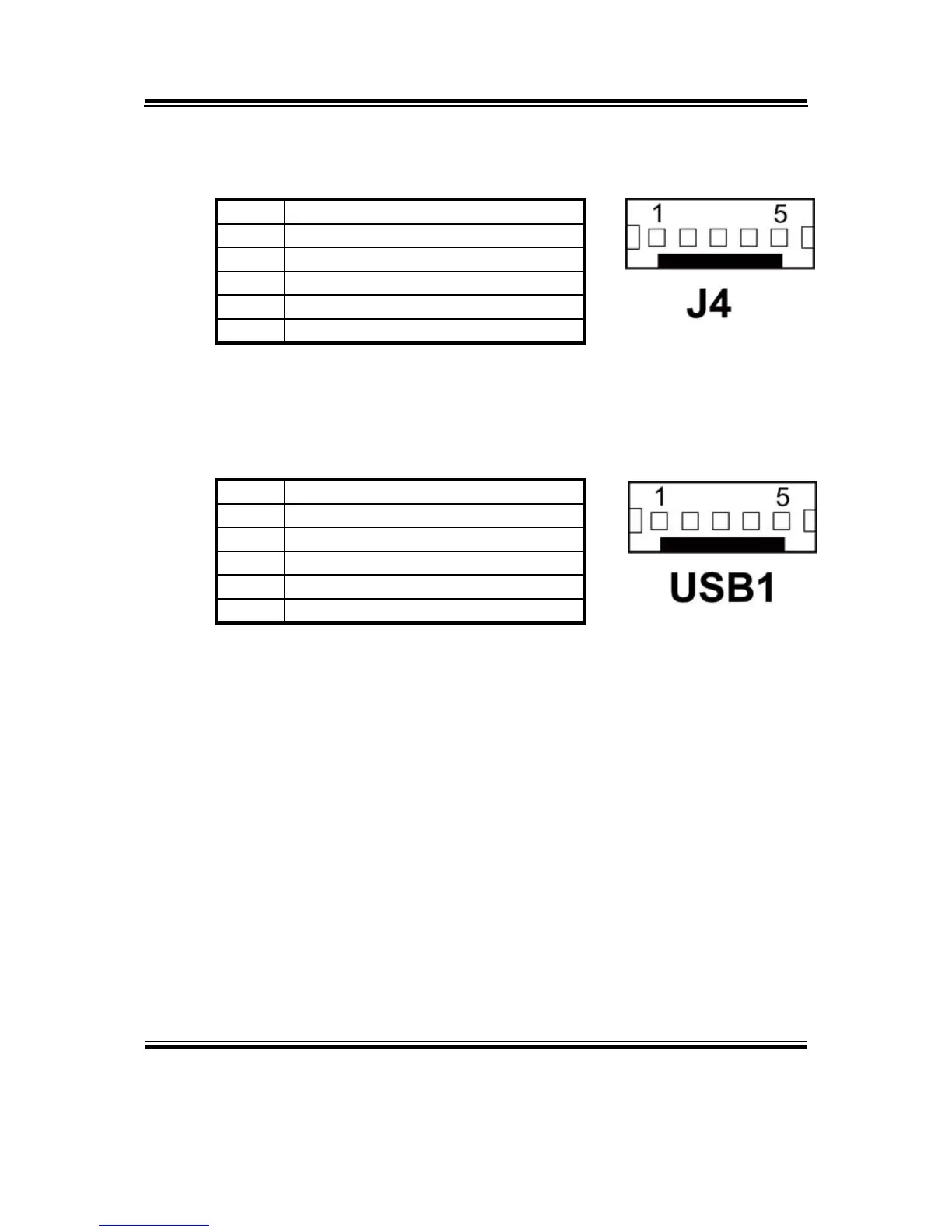

J4 : Internal USB Ports Connector
The pin assignment is as follows :
PIN ASSIGNMENT
1 USB4-
2 USB4+
3 GND
4 VCC5
5 GND
USB1: Internal USB Ports Connector
The pin assignment is as follows :
PIN ASSIGNMENT
1 USB7-
2 USB7+
3 GND
4 VCC5
5 GND
