protech PS3100 Series - USB Voltage Selection

Chapter 2 Hardware Configuration
Page: 2-12
PS3100 SERIES USER
’S MANUAL

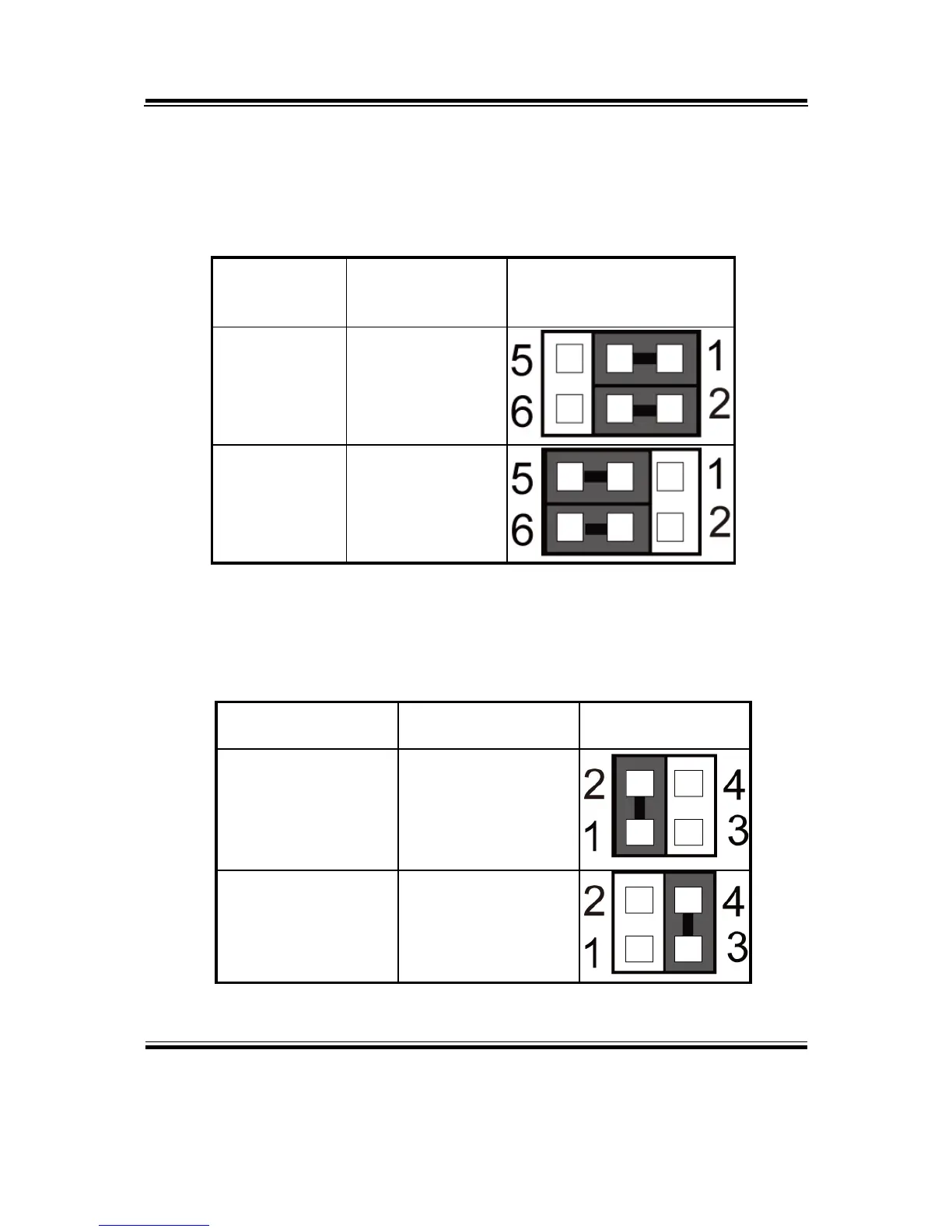

2-7. USB VOLTAGE SELECTION
JP4, JP5: USB Voltage Selection
The selections are as follows:
SELECTION JUMPER
SETTINGS
JUMPER
ILLUSTRATION
V5SB
1-3&2-4
VCC 3-5&4-6
*** Manufactory default --- V5SB.
JP9, JP10 :
USB Voltage Selection
The selections are as follows:
FUNCTION
JUMPER SETTING
(pin closed)
JUMPER
ILLUSTRATION
V5SB 1-2
VCC 3-4
*** Manufactory default --- V5SB.
