Proteus PSS-2015C - Base Section Assembly Part II; Preparing Rear Stabilizer with Plugs; Attaching Rear Stabilizer to Base; Connecting Rear Support Tube

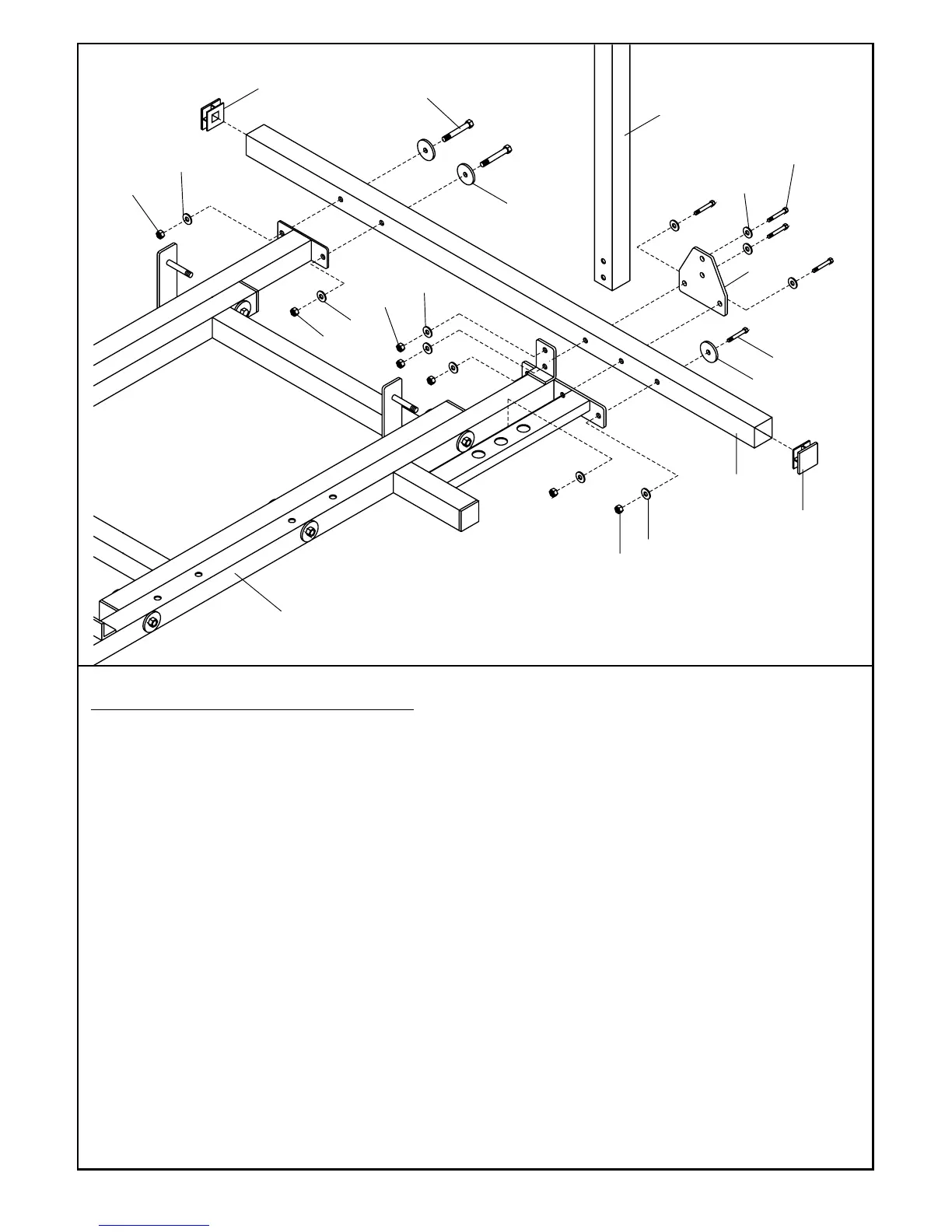

BASE SECTION ASSEMBLY PART II
1). FIT 2 PCS SQUARE PLUG ( E3 ) INTO BOTH SIDE OF REAR STABILIZER ( F ).
2). ASSEMBLE REAR STABILIZER ( F ) TO BASE ASSEMBLY WITH BOLTS ( 7 ) WASHERS
( 25 ) & ( 22 ) & NUTS ( 20 ).
3). ASSEMBLE REAR SUPPORT TUBE ( C ) WITH REAR STABILIZER ( F ), SECURE WITH BOLTS ( 8 ),
WASHERS ( 22 ), FLAT BACKING PLATE ( OO ), AND NUTS ( 20 ).
-9-
22
20
7(3/8"x 69)
E3
25
C
22
8(3/8"x 75)
7(3/8"x 69)
25
F
E3
22
20
BASE SECTION ASSEMBLY ( I )
22
20
22
20
OO
