Proteus PSS-2015C - Cable and Pulley Assembly Cable #A1 Assembly; Cable A1 Selection and Routing; Pulley Installation for Cable A1 (C1); Pulley Installation for Cable A1 (C2;C4;C6)

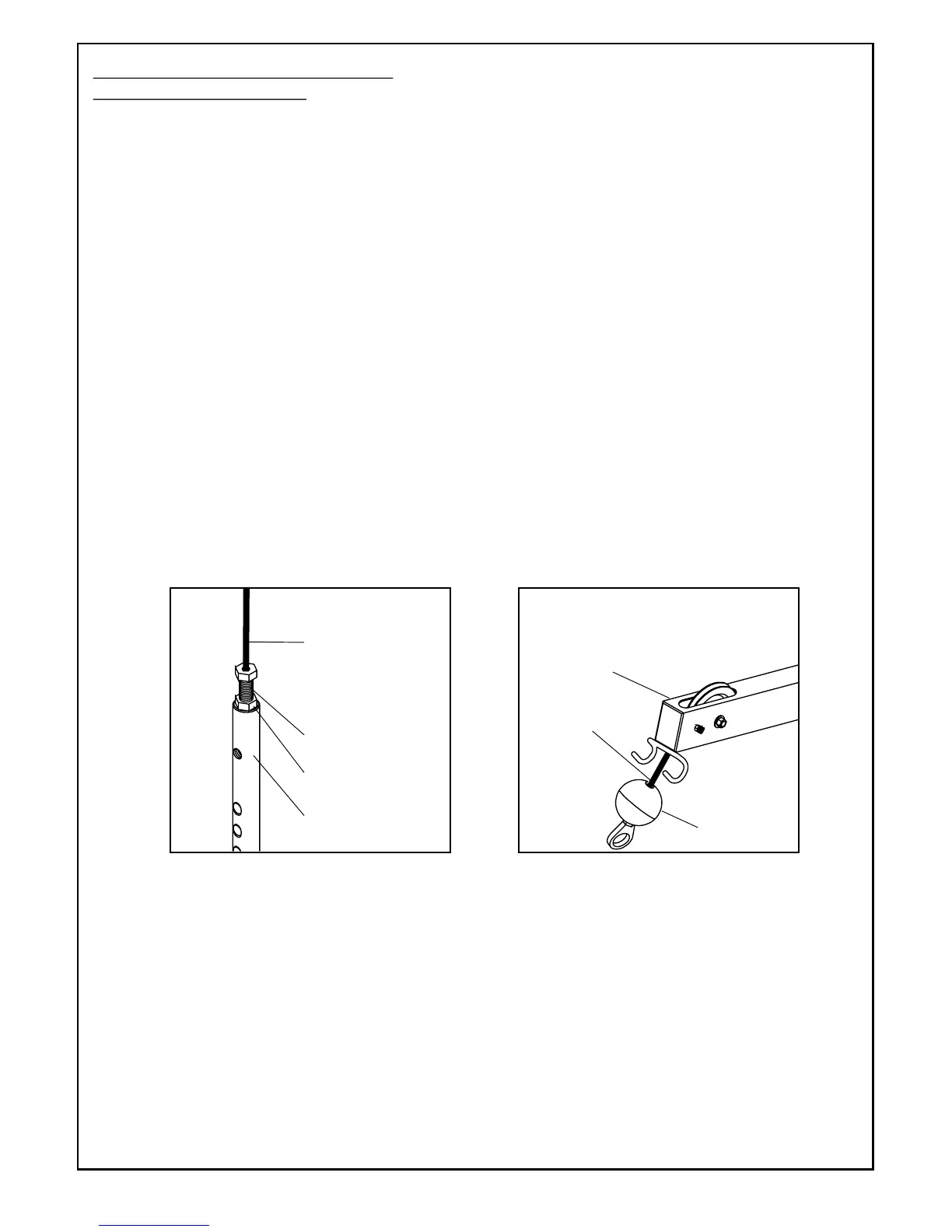

CABLE A1
BOLT
LOCK NUT
PICK-UP POLE
TOP TUBE
CABLE A1
BIG BALL
CABLE AND PULLEY ASSEMBLY
CABLE #A1 ASSEMBLY
1).SELECT CABLE #A1 ( WITH BOLT FITTED IN END ). ONE SIDE IS WITH BOLT, ANOTHER SIDE IS
WITH BIG RUBBER BALL.
2). FOLLOW THE DIRECTION IN THE DRAWING, FEED THE BOLT SIDE OF CABLE #A1 THROUGH
THE FRAME, THEN SCREW INTO THE TOP OF THE PICK - UP POLE ( X ).
3). FIT PULLEY ( C1 ) TO POSITION C1, FIX WITH BUSHINGS ( 28 ) BOLT ( 6 ) AND NUT ( 20 ), THEN
FIT BOLT ( 6 ) & NUT ( 18 ) IN THE FRONT HOLE POSITION.
4). FIT PULLEYS ( C1 ) TO POSITION C2/C4/C6, FIX WITH BUSHINGS ( 28 ) NUTS ( 20 ) & BOLTS ( 6 )
5). FIT PULLEYS ( C1 ) TO POSITION C3/C5, FIX WITH BUSHINGS ( 29 ) WASHERS ( 22 ) NUTS ( 20 )
& BOLTS ( 6 ), ASSEMBLE PULLEY ( C1 ) TO PULLEY POSITION C7, FIX WITH PULLEY SIDE
PLATES ( NN ),NUT ( 20 ) & BOLT ( 20 ).
6). FIT PULLEY ( C3 ) TO POSITION Cc, FIX WITH BOLT ( 5 ) & NUT ( 20 ).
-16-
