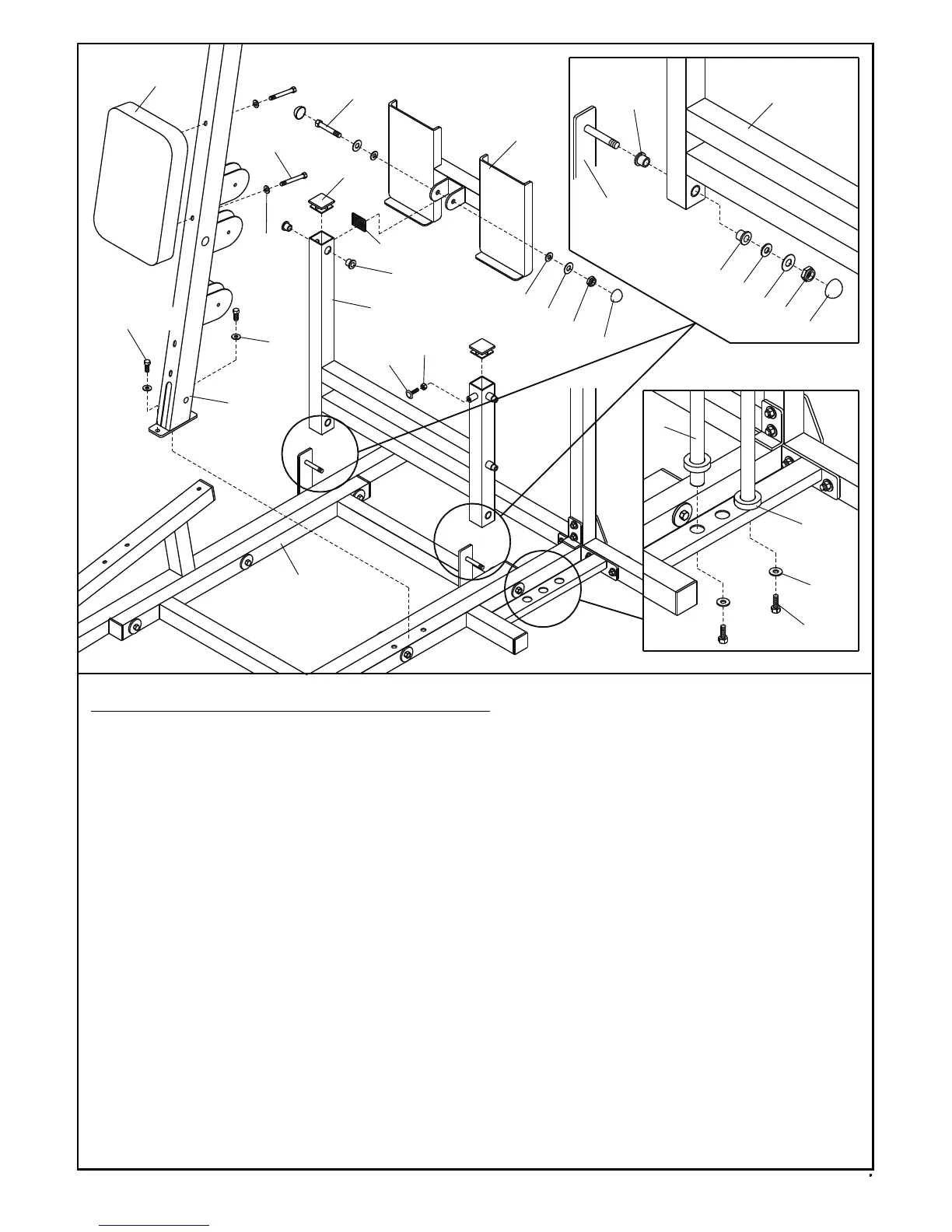

LEG PRESS BOTTOM SECTION ASSEMBLY
1). FIT MAIN SUPPORT TUBE ( A ) TO BASE TUBE ( D ), FASTEN WITH BOLT ( 3 ) WASHER ( 22 ),
FIT PAD ( L ) TO MAIN SUPPORT TUBE ( A ), FASTEN WITH BOLTS ( 9 ) & WASHERS ( 22 ).
2). FIT 4 PCS SQUARE PLUG ( E3 ) TO ENDS OF LEG PRESS TUBE ( Q ), ALSO FIT THE BUMPER
WITH BOLT ( KK ) TO LEG PRESS TUBE ( Q ), FIT 4 PCS CAST BUSHING ( 26 ) TO HOLES OF
LEG PRESS TUBE ( Q ).
3). ATTACH LEG PRESS TUBE ( Q ) TO BASE FRAME ASSEMBLY
NOTE : TO FIT HOLES POSITION OF LEG PRESS TUBE TO BOLT POSITION OF BASE FRAME
ASSEMBLY
FASTEN WITH WASHERS ( 23 & 24 ), NUTS ( 19 ). THE NUT CAPS ( GG ) OVER THE NUTS.
4). FIT BUSHINGS ( 26 ) TO UPPER HOLES OF LEG PRESS TUBE ( Q ), ASSEMBLE FOOT PLATE
SET ( U ) WITH BOLT ( 14 ) WASHERS ( 23 / 24 ) & NUT ( 19 ). THEN PUT CAPS ( GG ) OVER THE
BOLT & NUT.
5). SLIDE WEIGHT SLIDER TUBE ( H ) TO RUBBER RING ( JJ ). THEN ATTACH TO BASE TUBE ( D ),
FINGER TIGHTEN WITH BOLTS ( 4 ) & WASHERS ( 22 ).
-10-
26
Q
KK
22
22
E3
23
24
19
GG
U
14(1/2"x 82)
9(3/8"x 89)
L
3(3/8"x 19)
A
26
23
24
19
GG
26
Q
H
JJ
22
4(3/8"x 25)
BASE
SECTION
ASSEMBLY
BASE
SECTION
ASSEMBLY
20
I-2
