20
KK
KK20
CABLE A1
C7
NN
C13
CABLE A2
C
B
A

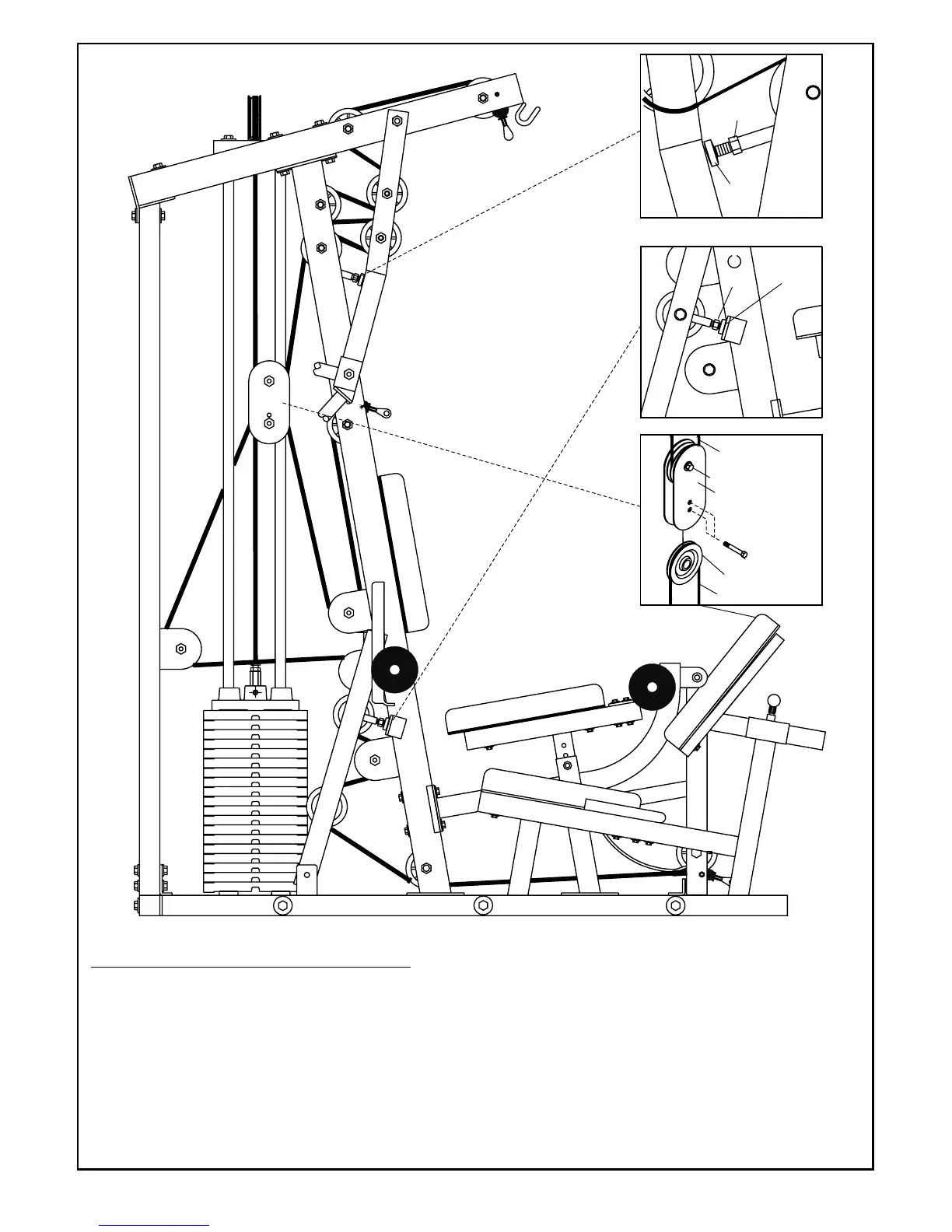

ADJUSTMENT OF CABLE TENSION
AFTER MACHINE ASSEMBLED. NOTE TO CHECK WHETHER THE CABLE IS WITH GOOD
TENSION. ( SUGGEST KEEPING THE INTERVAL 2-5 MM BETWEEN TOP PLATE AND 1ST WEIGHT
PLATE, THEN IT'S WITH GOOD TENSION ). IF CABLE IS SLIGHTLY LOOSE, ADJUST THE BUMPER
( KK ) ( REFER TO DRAWING ) FOR MICRO ADJUSTMENT OF THE CABLE TENSION. IF CABLE IS
TOO LOOSE & NEEDS BIGGER ADJUSTMENT, ADJUST PULLEY POSITION C13 TO UPPER HOLE
POSITION..
-19-
