Proteus PSS-2015C - Leg Press Seat Section Assembly; Handlebar Grip and Plug Fitting; Seat Pad Attachment to Tubes; Handlebar Connection to Seat Tube

E1
22
O
E2
L
L
LL
E1
T
F1
D1
22
F1
G
22
20
22
P
22
D1
6(3/8"x 64)
6(3/8"x 64)
7(3/6"x 69)
5(3/8"x 43)

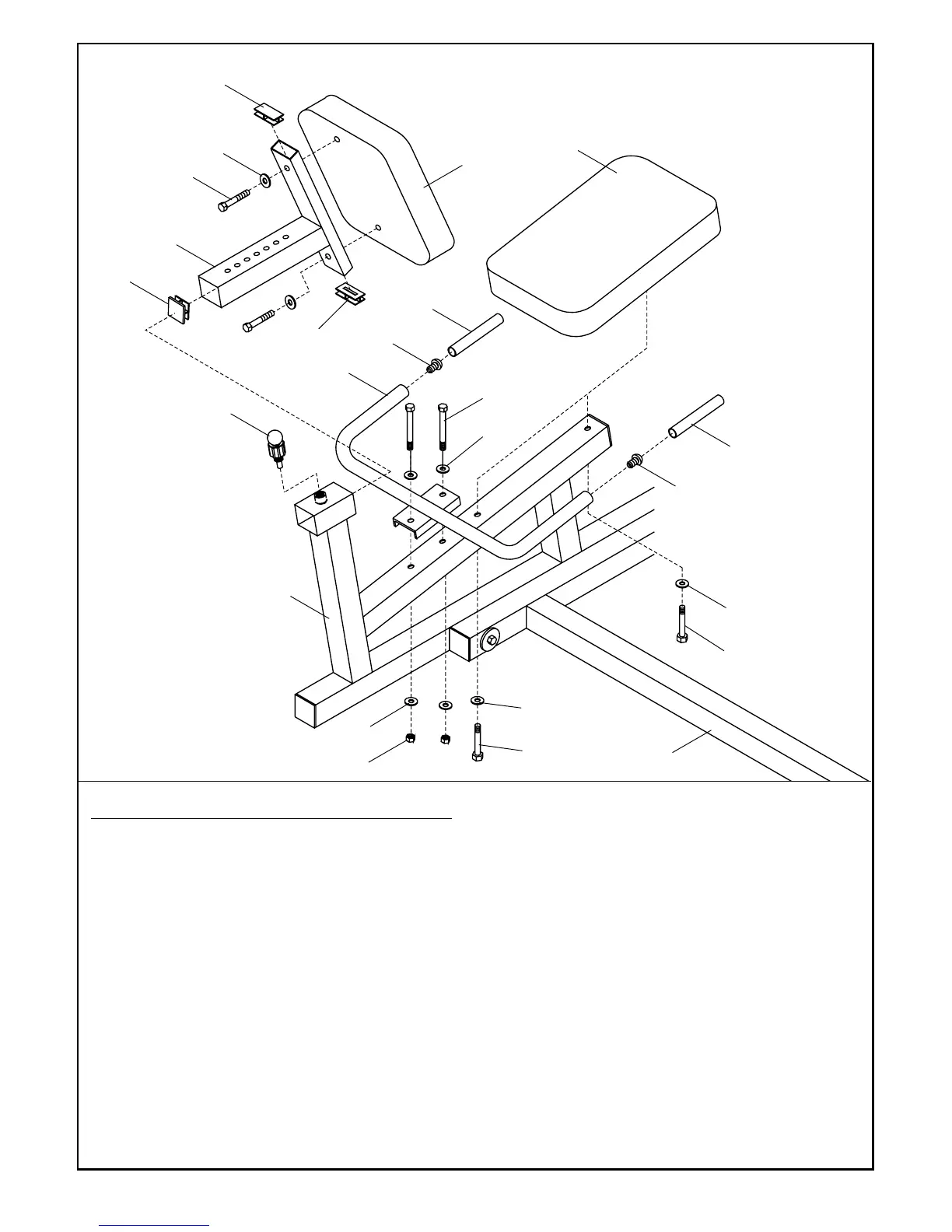

LEG PRESS SEAT SECTION ASSEMBLY
1). FIT PLUGS ( E1, E2 ) TO BACK ADJUSTABLE TUBE ( O ), ASSEMBLE FOAM GRIPS ( D1 )
AND ROUND SMALL PLUGS ( F1 ) TO HANDLEBAR ( T ).
2). ASSEMBLE PAD ( L ) TO BACK ADJUSTABLE TUBE ( O ) WITH BOLTS ( 5 ) AND WASHERS ( 22).
ASSEMBLE PAD ( L ) TO LEG PRESS SEAT TUBE ( G ) WITH BOLTS ( 6 ) AND WASHERS ( 22 ).
3). ASSEMBLE HANDLEBAR ( T ) TO LEG PRESS SEAT TUBE ( G ) WITH BOLTS ( 6 ) & WASHERS
( 22 ).
4). ASSEMBLE BACK ADJUSTABLE TUBE ( O ) TO LEG PRESS SEAT TUBE ( G ), ADJUST TO
SUITABLE POSITION AND FASTEN WITH POP PIN ( LL ).ADJUST LENGTH OF BACKREST OF THE
SEAT ON LEG PRESS POSITION BY THE POP-PIN ( LL ). TIGHTENED THE POP-PIN FIRMLY
AFTER ADJUSTMENT.
-14-
