-3-

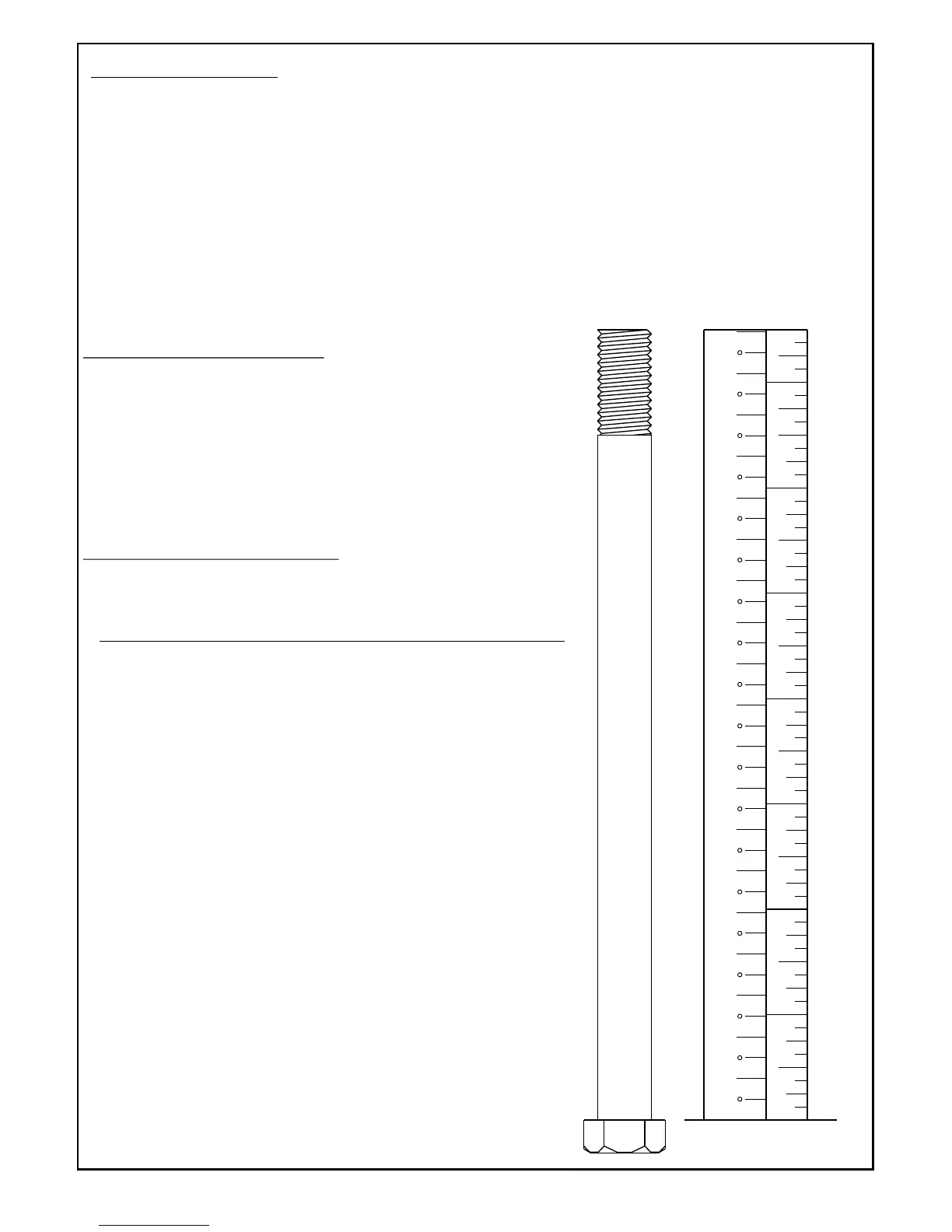

BOLT LENGTH INDICATOR
NOTE : BOLT LENGTHS ARE MANUFACTURED IN METRIC ( MM )
SO IMPERIAL LENGTH ( INCHES ) IS APPROXIMATE.
EG. 65MM = 2-1/2"
CARTON #1
PARTSIDENTIFICATION LIST
PARTS DESCRIPTION Q'TY
A MAIN SUPPORT TUBE 1
B TOP BRACE TUBE 1
C REAR SUPPORT TUBE 1
D BASE TUBE 1
E SEAT TUBE 1
F REAR STABILIZER 1
G LEG PRESS SEAT TUBE 1
H WEIGHT SLIDER TUBE 2
I-R PRESS ARM ( R ) 1
I-L PRESS ARM ( L ) 1
J-R PULL IN ARM ( R ) 1
J-L PULL IN ARM ( L ) 1
K LAT PULL BAR 1
LPAD 4
L-1 ANKLE CUFF 1
L-2 CRUNCH & TRICEP STRAP 1
A1 WEIGHT CABLE 1
A2 MAIN CABLE 1
BEFORE ASSEMBLY
MACHINE FLOOR SIZE 1750 mm ( L ) x 1730 mm ( W ) x 2050 mm ( H ), CHECK WITH AVAILABLE
FLOOR SPACE IS ENOUGH OR NOT FOR BEFORE ASSEMBLY.
1). AFTER OPENED THE CARTON. CHECK ALL PARTS/COMPONENTS ACCORDING TO THE
PARTS LIST. MAKE SURE ALL PARTS/COMPONENTS IS PRESENT BEFORE ASSEMBLY.
2). CONTACT YOUR DEALER IF THERE'S ANY QUESTION ON ASSEMBLY.
3). DO NOT FIRM TIGHTEN ALL BOLTS/NUTS UNTIL THE MACHINE IS FULLY ASSEMBLED.
IN-LINE WITH UNDERSIDE OF HEAD
7
6
5
4
3
2
1
180
170
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
mm
inch
