ATTENTION
AFTER MACHINE ASSEMBLED. NOTE TO
CHECK WHETHER THE CABLE IS WITH
GOOD TENSION. ( SUGGEST TO KEEP THE
INTERVAL 2mm - 5mm BETWEEN TOP PLATE
AND 1ST WEIGHT PLATE, THEN THE CABLE
WILL BE WITH GOOD TENSION ).
IF CABLE IS SLIGHTLY LOOSE. ADJUST
LITTLE THE BOLT ON CABLE #A1 TO KEEP
TENSION.
IF CABLE IS MORE LOOSER, ADJUST THE
PULLEY ( C13 ) TOHIGHER POSITION ON
PULLEY SIDE PLATE ( NN ) TO KEEP CABLE
WITH GOOD TENSION.

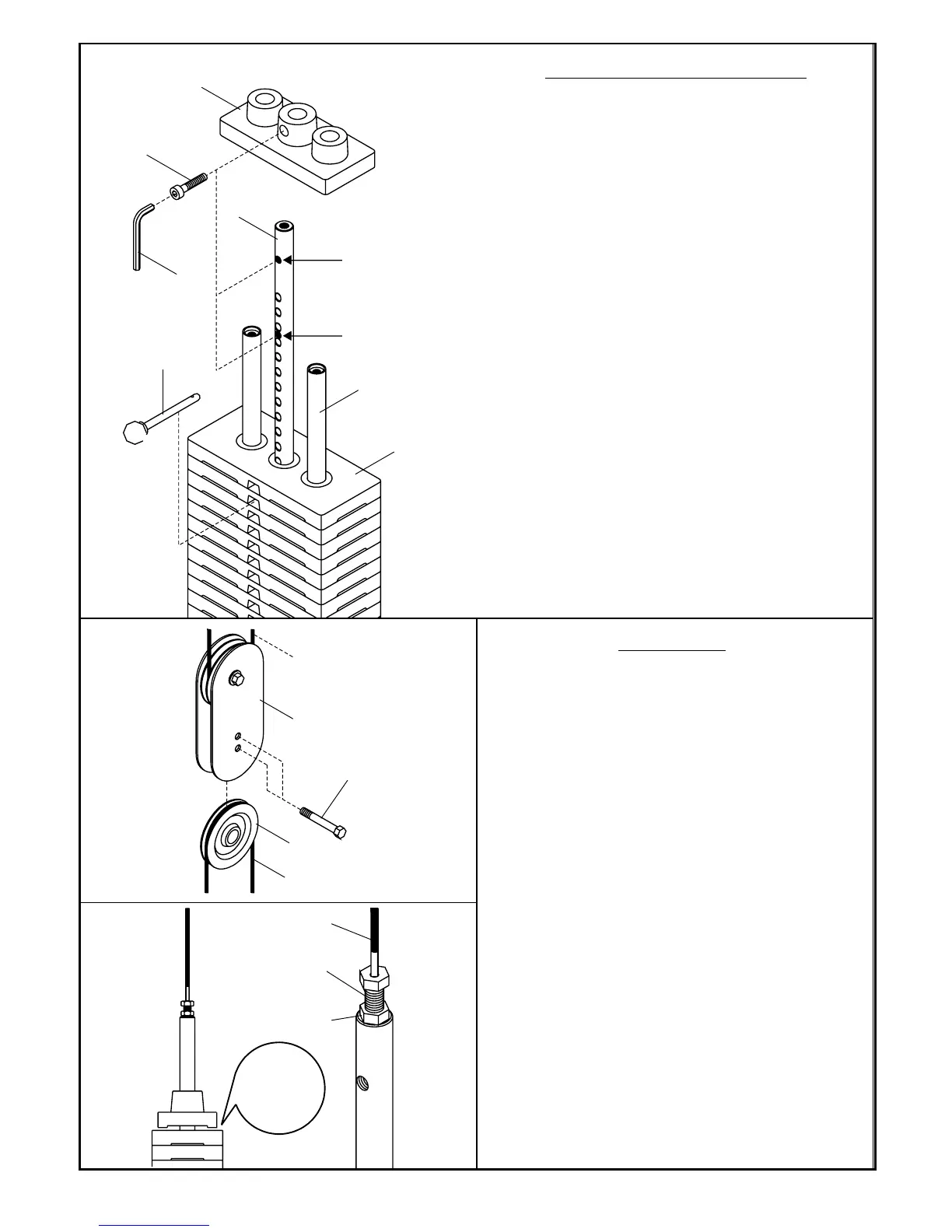

WEIGHT PLATES ASSEMBLY
1). SLIDE ALL WEIGHT PLATES ( PP ) OVER
WEIGHT SLIDER TUBES ( H ), ONE BY ONE
CHECK THAT THE PIN SLOTS ALL FACING
THE SAME WAY.
2). FIT WEIGHT PICK - UP POLE ( X ) TO
WEIGHT STACK TOP PLATE ( QQ ) WITH
ALLEN SCREW ( 16 ) WITH ALLEN KEY
( MM ).
NOTE : PICK - UP POLE IS DESIGNED FOR
BOTH 150 LBS AND 200 LBS SPEC.
FIT TOP PLATE ON SECOND TAP
HOLE FOR 150 LBS SPEC.-PSS-2015C
FIT TOP PLATE ON FIRST TAP HOLE
FOR 200 LBS SPEC.-PSS-2020C
3). SLIDE THIS TOP PLATE ASSEMBLE OVER
WEIGHT SLIDER TRBES ( H ) AND DOWN
ONTO THE TOP WIGHT PLATES.
QQ
FIRST TAP HOLE
FOR 200 LBS
SECOND TAP HOLE
FOR 150 LBS
16(7/13"x 38)
X
MM
Y
H
PP
CABLE A1
NN
5(3/8" x 43)
C13
CABLE A2
CABLE A1
BOLT
LOCK NUT
INTERVAL
2-5mm
-11-
