Proteus PSS-2015C - Cable #A2 Assembly; Cable A2 Routing Procedure; Pulley Installation for Cable A2 (C8;C9); Pulley Installation for Cable A2 (Ca;Cb)

CABLE #A2 ASSEMBLY

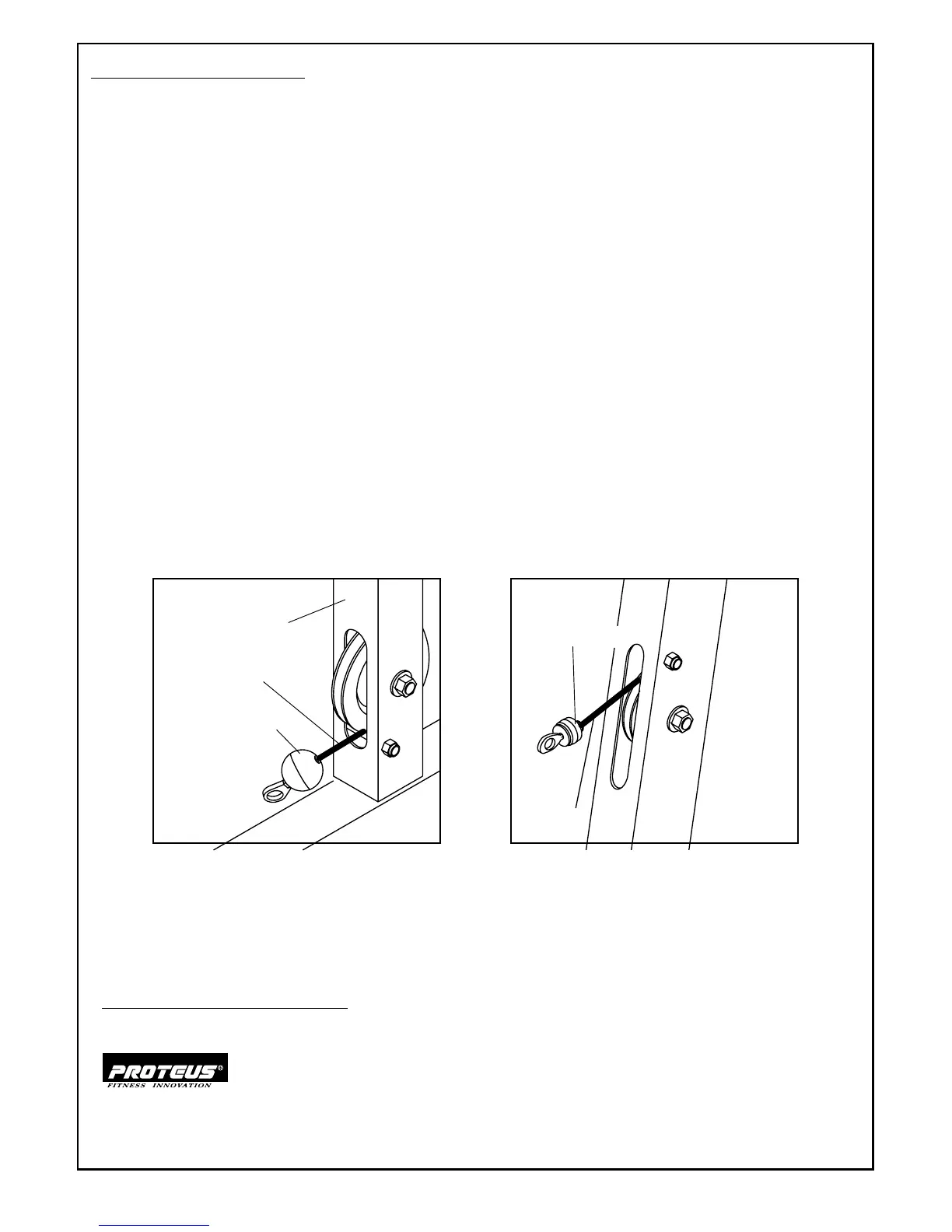

1). FOLLOW THE DIRECTION IN THE DRAWING, FEED THE SMALL BALL SIDE OF CABLE #A2
THROUGH THE FRAME ( FROM PULLEY POSITION C8 TO C15 ), KEEP THE BIG BALL SIDE OF
CABLE AT LEG DEVELOPER TUBE AND SMALL BALL SIDE AT MAIN SUPPORT TUBE.
2). FIT PULLEYS ( C1 ) TO PULLEY POSITION C8/C9, FIX WITH BUSHINGS ( 28 ) NUTS ( 20 ) AND
BOLTS ( 6 ), FASTEN STUD ( 1 ) TO LOWER HOLE OF POSITION C8, FASTEN WITH NUTS ( 17 ).
3). FIT PULLEYS ( C2 ) TO PULLEY POSITION Ca/Cb, FIT BOTH PULLEYS TO SHAFT OF LEG PRESS
TUBE ( Q ), FASTEN WITH WASHERS ( 21 ) & BOLTS ( 2 ).
4). FIT PULLEYS ( C1 ) TO PULLEY POSITION C10/C11/C12/C14, FIX WITH NUTS ( 20 ) & BOLTS ( 5 ).
5). FIT PULLEYS ( C1 ) TO PULLEY POSITION C13, FIX WITH PULLEY SIDE PLATES ( NN ), NUTS
( 20 ) & BOLTS ( 5 ).
6). FIT PULLEYS ( C1 ) TO PULLEY POSITION C15, FIX WITH BUSHING ( 28 ), NUT( 20 ) AND BOLT( 6 ),
THEN FIT BOLT ( 6 ) & NUT( 18 ) IN THE HIGHER HOLE OF POSITION C15.
SMALL BALL
CABLE A2
LEG DEVELOPER
CABLE A2
BIG BALL
-17-
