Proton Products InteliSENS PD30 Instruction Manual (Issue 1a)

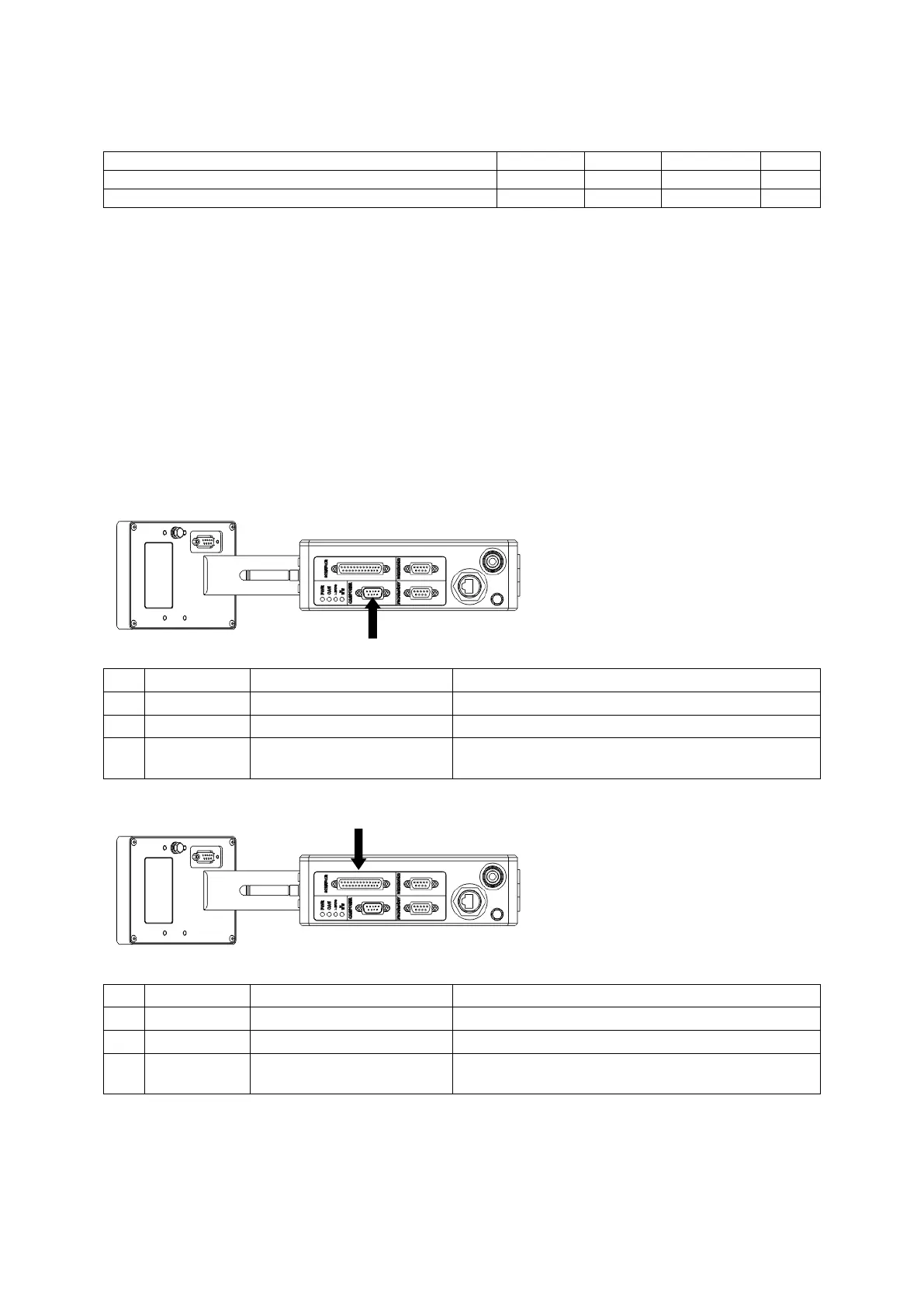

DC Power supply
Specification
Minimum
Typical
Maximum
Units
Power supply voltage*
15
24
30
VDC
Power consumption (with optional CDI4 display unit)
30
W
*If a long power supply cable with a significant voltage drop is used, then ensure that the voltage at
the gauge connector does not fall below the minimum value.
Power may be supplied to the gauge via the following optional accessories:
 Remote CDI4 interface display unit connected to the “CAN / POWER” connector.
 PSU-CAN Power supply unit connected to the “CAN / POWER” connector.
 PSU-UNI Power supply unit connected to the “INTERFACE” connector.
 PSU-BOB Power supply unit and break out box connected to the “INTERFACE” connector.
Alternatively, power may be directly supplied to the gauge via either of the following connectors:
 “CAN / POWER” connector.
 “INTERFACE” connector.
“CAN / POWER” Connector
Connector type: DB9 male (plug)
Pin
Designation
Description
Notes
3
REG.GND
Power supply ground (0 V)
9
+24V
+24 V power supply
S
Shield
Ensure that the cable shield is connected to this
via the plug shield connection.
“INTERFACE” Connector
Connector type: DB25 female (socket)
Pin
Designation
Description
Notes
24
REG.GND
Power supply ground (0 V)
25
+24V
+24 V power supply
S
Shield
Ensure that the cable shield is connected to this
via the plug shield connection.
Powering on the gauge
The gauge has no power switch; as soon as power is applied it will power up, perform self tests and
then commence measurement.
