Proton Products InteliSENS PD30 Instruction Manual (Issue 1a)

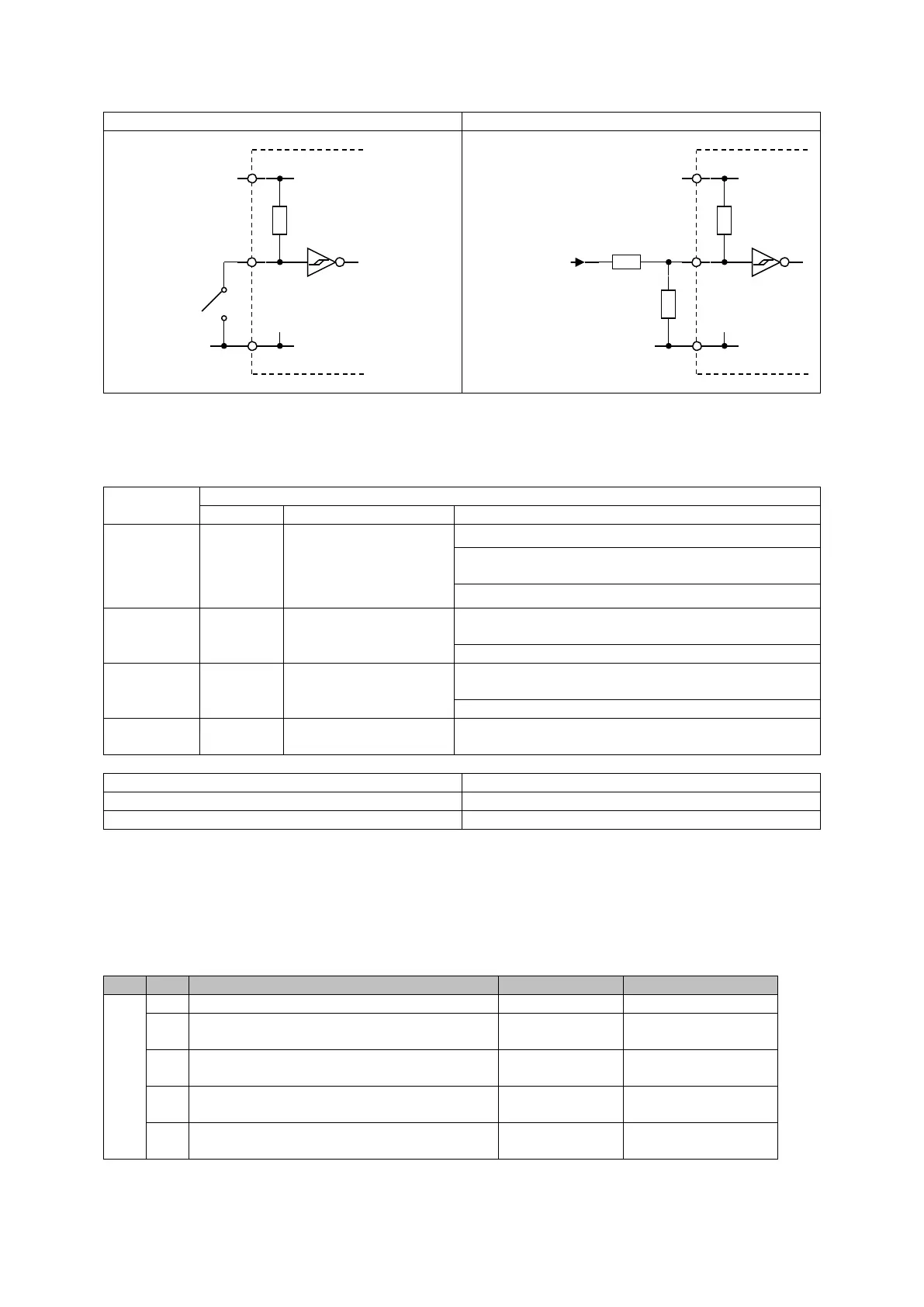

Pull down
Pull up
Logic inputs configuration
Each individual logic input can be independently configured for both active state polarity and function:
Function
bit setting
Logic input function
Function
Inactive
Active
0
Reset
-
Reset all flaw detection measurements to zero.
Reset all running maximum and minimum
diameters to zero.
Reset length to zero.
1
Ext
Alarm 1
Set output parameter
bit DW1.8 = 0
Print “EXT-ALARM-1” message to a printer
connected to the RS-232 port.
Set output parameter bit DW1.8 = 1
2
Ext
Alarm 2
Set output parameter
bit DW1.9 = 0
Print “EXT-ALARM-2” message to a printer
connected to the RS-232 port.
Set output parameter bit DW1.9 = 1
3
Line Rev
Direction
Decrement the length of the line.
Input DW logic input polarity bit setting
Logic input active state
0
Active low
1
Active high
Interrogating External Alarm 1 and External Alarm 2 Logic Input Status
The status of logic inputs assigned with the “External Alarm 1” and “External Alarm 2” functions can
be interrogated via output parameter bits DW1.8 and DW1.9 respectively:
Output parameters
DW
Bit
Comments
Units
Range/Remark
1
0
Res
1
No reading
0=OK
1=No Reading
2
No object
0=OK
1=No Object
3
Window dirty
0=OK
1=Window Dirty
4
Line speed too low for helix mode
0=OK
1=Too Low
+15V
DGND
5.1kΩ
820Ω
820Ω
From PLC
Active High
Logic Output
+15V
DGND
5.1kΩ
