Proton InteliSENS PD30 User Manual

Page 14 of 68
Proton Products InteliSENS PD30 Instruction Manual (Issue 1a)

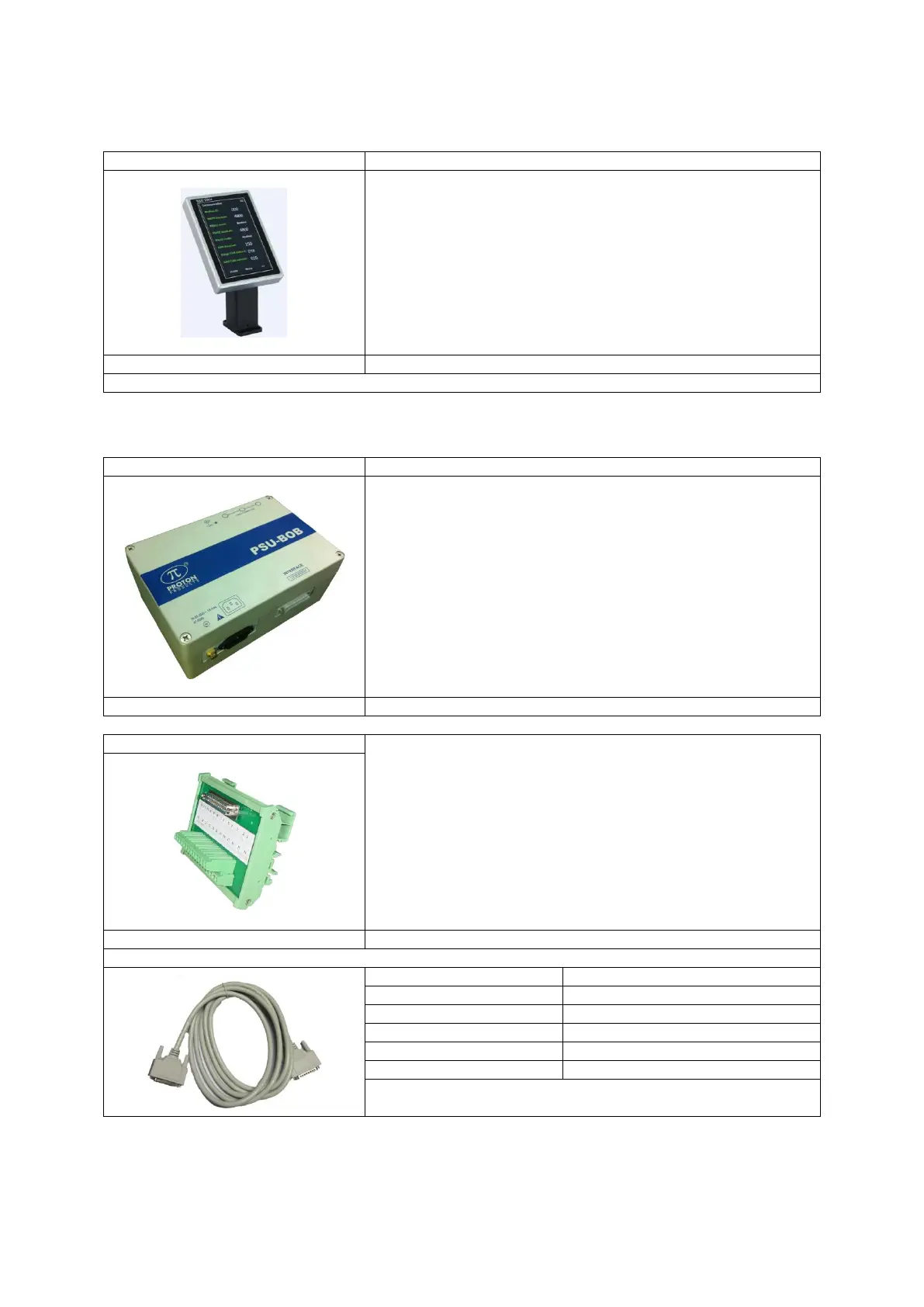

INTERFACE DISPLAY MODULES
SiDi-CDi4
Touch screen display module
 Touch screen display.
 Connects via the CAN-bus port.
 Displays measured speed and length.
 Provides menu-based setting of all parameters.
 Mounts directly on the gauge body or remotely via an
extension cable.
Proton part number
00049MC023
POWER SUPPLIES AND CONNECTIVITY
PSU-BOB-DG
Power supply and break-out box
 Connects via the DB25 “INTERFACE” connector.
 Supplies 24VDC electrical power to the gauge.
 Provides screw terminal access to all “INTERFACE”
connector input and output pins.
 End user cables are sealed with three cable glands.
 Input voltage range: 90 – 260 VAC @ 45 – 65 Hz.
 Select the required length of DB25 cable from below.
Proton part number
00047MC660
Terminal Strip-DIN
 Breaks out the DB25 “INTERFACE” connector to a DIN
rail mountable set of screw terminals.
 Select the required length of DB25 cable from below.
Proton part number
00041MC730
DB25 “INTERFACE” port to PSU-BOB-DG, Terminal Strip-DIN cable
Length / m
Proton part number
3
00041CT003
5
00041CT005
10
00041CT010
20
00041CT020
30
00041CT030
