Proton Products InteliSENS PD30 Instruction Manual (Issue 1a)
OPTIONAL ELECTRICAL INTERFACES
ANALOGUE OUTPUTS
Analogue outputs are an optional extra that must be ordered for installation during
manufacture; they cannot be retrofitted to the gauge.
The analogue outputs may be configured to output diameter or error measurements as an analogue
output voltage.

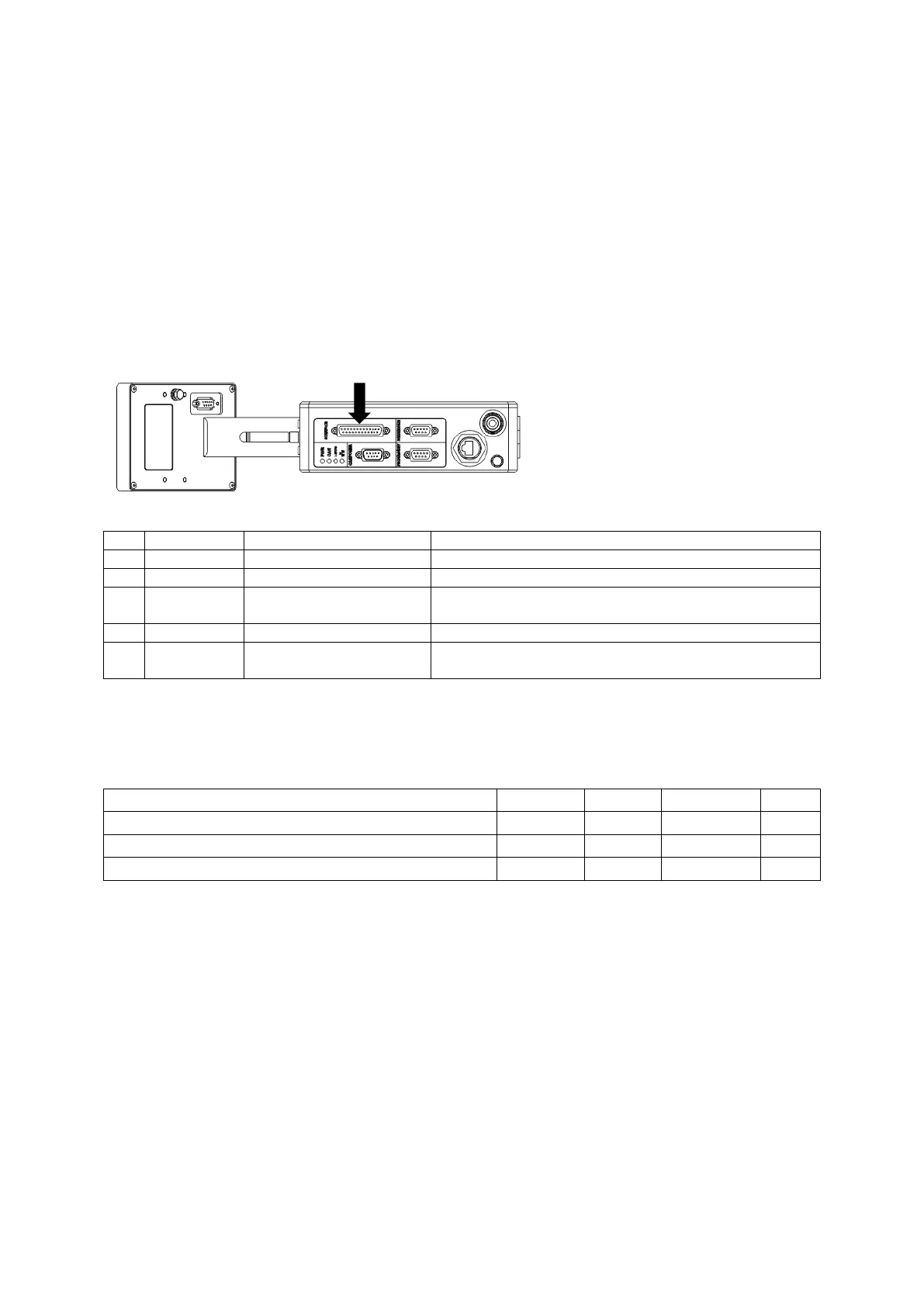

Analogue outputs connection
Three analogue outputs may be accessed through the “INTERFACE” connector.
Connector type: DB25 female (socket)
Pin
Designation
Description
Notes
3
AOUT1
Analogue output 1
4
AOUT3
Analogue output 3
15
Agnd
Analogue output ground
Isolated ground reference for AOUT1, AOUT2 and
AOUT3.
16
AOUT2
Analogue output 2
S
Shield
Ensure that the cable shield is connected to this via
the plug shield connection.
Analogue outputs electrical specifications
Analogue outputs and their shared ground reference are isolated from earth.
Analogue outputs are short circuit proof.
Specification
Minimum
Typical
Maximum
Units
Output voltage
-10
10
V
Output-to-earth voltage
50
V
Load resistance
3.3
kΩ
